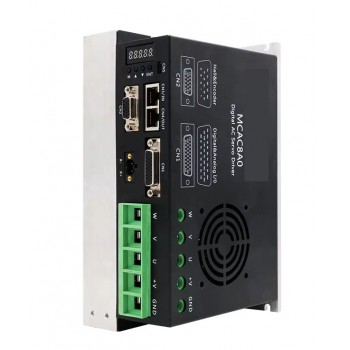

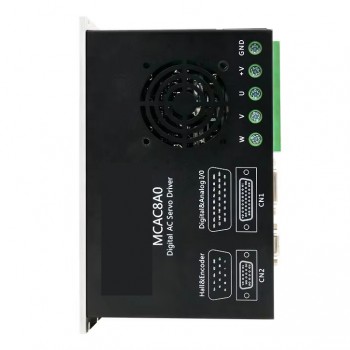

MCAC8A0 Digital Servo Driver Controller 3 Phase 24-110V 100A 1000W for 110/130mm Servo Motor

MCAC8A0 Digital Servo Driver Controller 3 Phase 24-110V 100A 1000W for 110/130mm Servo Motor

The low voltage servo driver adopts vector control designed and produced by DSP, low cost full closed loop all digital AC servo driver. It includes three adjustable feedback loop controls (position loop, speed loop and current loop), stable performance, suitable for driving AC servo motors with voltage of 36V~80V and power below 1000W.


Features:
The motor winding protects the power supply from short circuit;
Over-current, overload, over-speed protection;
Encoder disconnection protection;
Multiple control input modes;
Optocoupler isolated servo reset input interface ERC;
Current loop bandwidth: (-3dB) 2KHz (typical value)
RS232C interface can be used to download parameters through PC or text display.

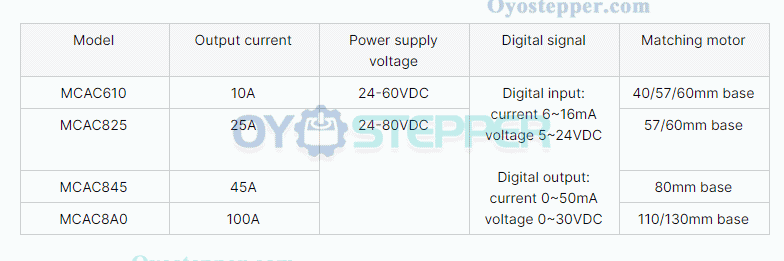

Servo Driver Specification:
Part Number: MCAC8A0
Phase:3
Input voltage24~110
Input current:100A
Output voltage:100V
Rated power:1000W

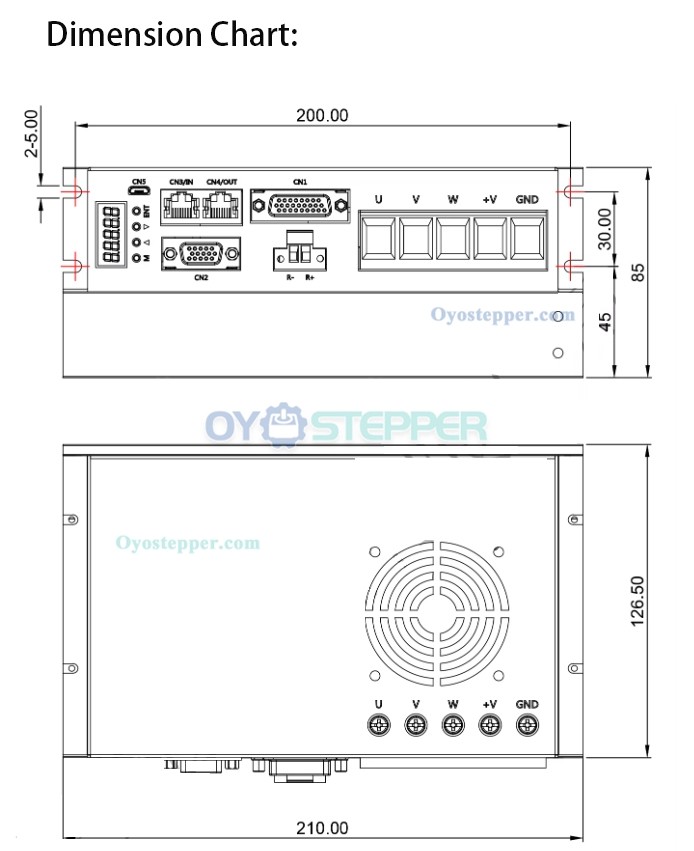

Dimension:210x126.5x85mm
Matching motor:110/130mm base
Weight:2.5kg;
