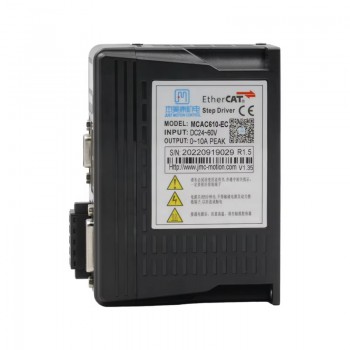

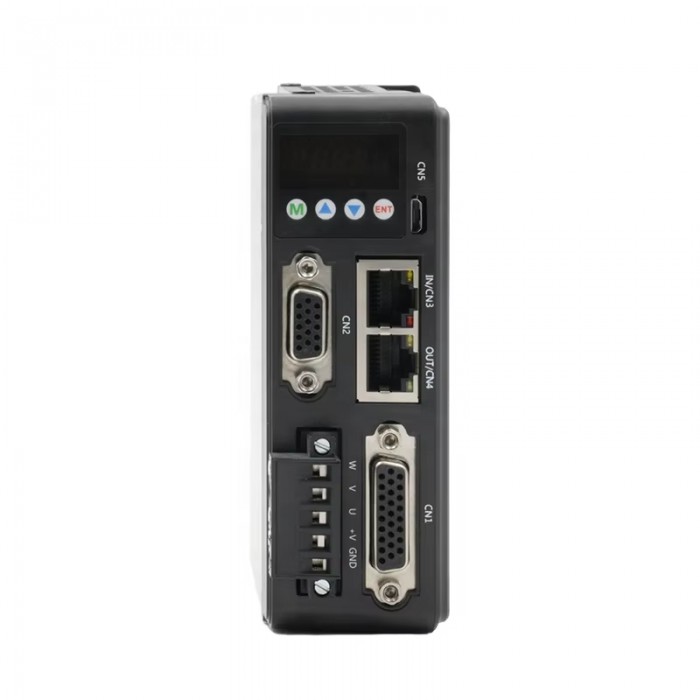

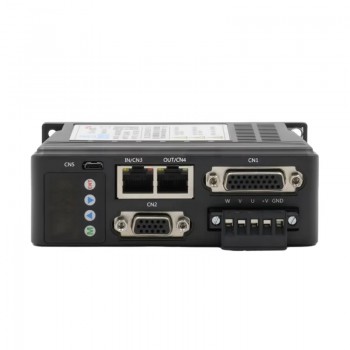

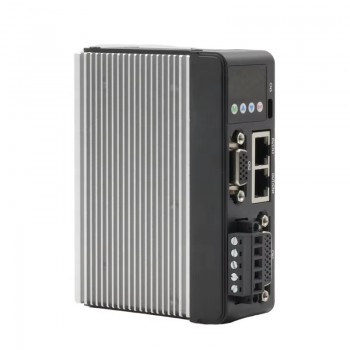

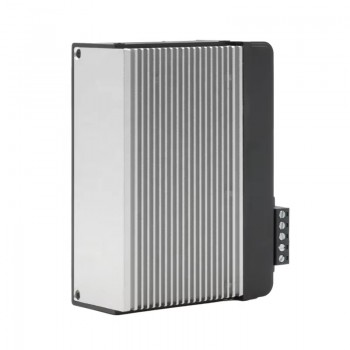

MCAC610 DC Servo Driver Controller 3 Phase 24-60V 10A 200W for 40/57/60mm DC Servo Motor

MCAC610 Servo Driver Controller 3 Phase 24-60V 10A 200W for 40/57/60mm DC Servo Motor


The low voltage servo driver adopts vector control designed and produced by DSP, low cost full closed loop all digital AC servo driver. It includes three adjustable feedback loop controls (position loop, speed loop and current loop), stable performance, suitable for driving AC servo motors with voltage of 36V~80V and power below 200W.


Features:
The motor winding protects the power supply from short circuit;
Over-current, overload, over-speed protection;
Encoder disconnection protection;
Multiple control input modes;
Optocoupler isolated servo reset input interface ERC;
Current loop bandwidth: (-3dB) 2KHz (typical value)
RS232C interface can be used to download parameters through PC or text display.


Servo Driver Specification:
Part Number: MCAC610
Phase:3
Input voltage:24~60V
Input current:10A
Output voltage:10V
Rated power:200W
Dimension:117.7x84x40.5mm
Matching motor:40/57/60mm base
Weight:2.5kg;
