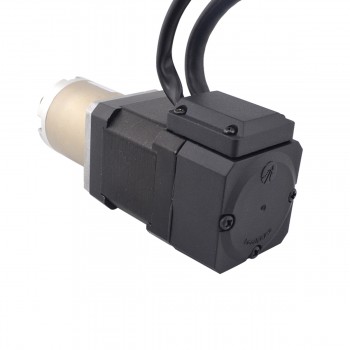

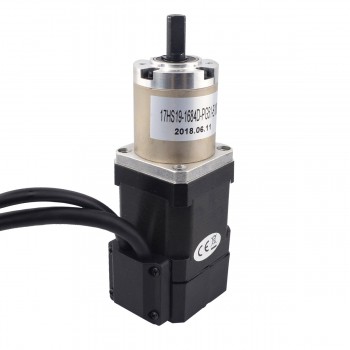

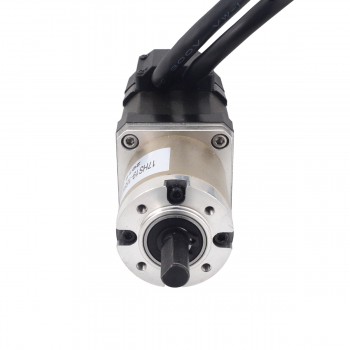

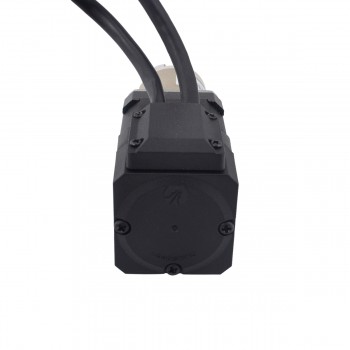

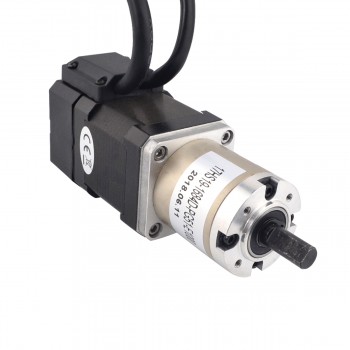

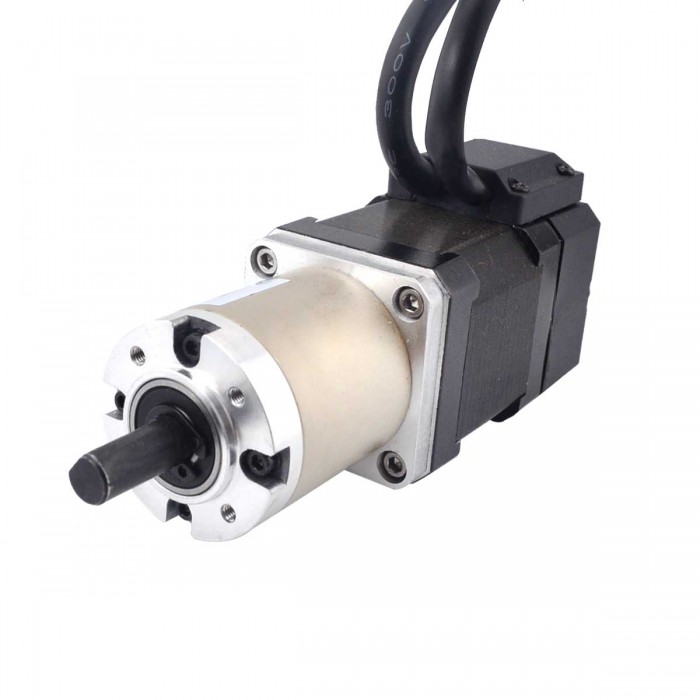

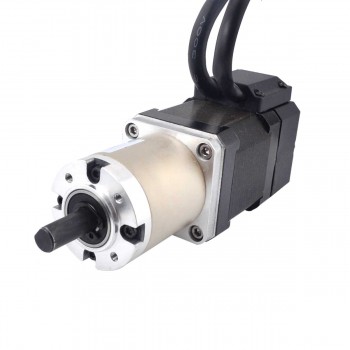

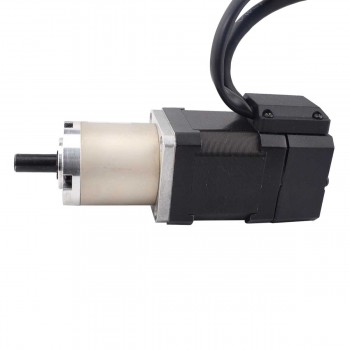

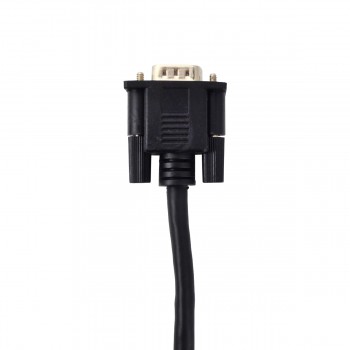

Nema 17 Closed-loop Geared Stepper L=48mm Gear Raio 51:1 Encoder 1000CPR

NO.:17HS19-1684D-PG51-E1000
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$94.10
Buy It Now:$72.38
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$70.74 $69.10 $67.45 $65.81
Add To Cart

Motor Specification

  • Manufacturer Part Number: 17HS19-1684D-PG51-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle without Gearbox: 1.8 deg
  • Holding Torque without Gearbox: 0.52Nm(73.65oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.8ohms
  • Voltage: 2.80V
  • Inductance: 3.20mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 300mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 42.7mm
  • Gear Ratio: 51.895
  • Efficiency: 73%
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-Cut Length: 15mm
  • Backlash at No-load: <=1deg
  • Max.Permissible Torque: 4Nm(566.56oz.in)
  • Moment Permissible Torque: 6Nm(849.84oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Encoder Specification

  • Driving Voltage : 4.5V to 5.5V
  • Output current : 20mA
  • Resolution : 1000ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ5mm
  • Output Frequency : ≤60MHz
  • Running Speed : ≤3600rpm
  • IP Protection: IP20

Connection

A+
A-
B+
B-
Green
Black
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Closed-loop Geared Stepper L=48mm Gear Raio 27:1 Encoder 1000CPR
Next: Nema 17 Closed-loop Geared Stepper L=48mm Gear Raio 100:1 Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 52
Holding Torque (oz.in) 73.653
Inductance(mH) 3.2
Lead Length(mm) 300
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.8
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Frequency ≤60KHz
Output Signal Channels 2
Rated Voltage(V) 5
Resolution(CPR) 1000
Running Speed(rpm) ≤3600rpm
