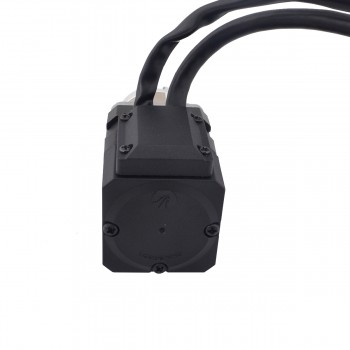

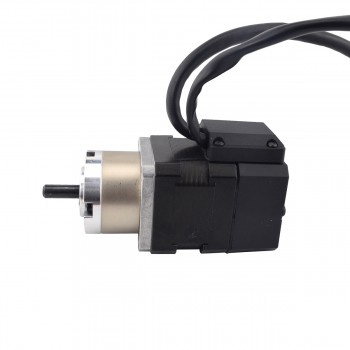

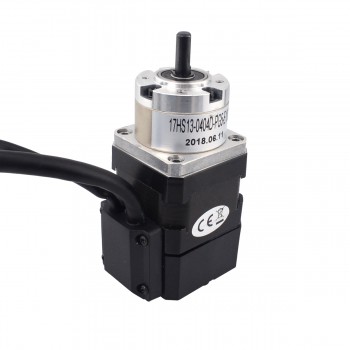

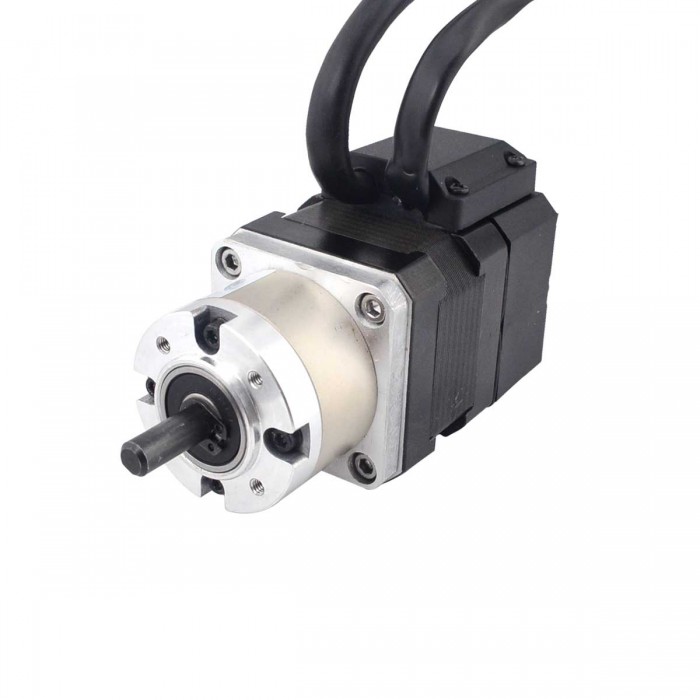

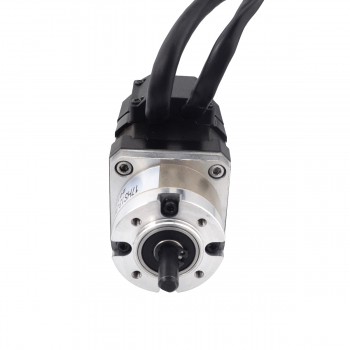

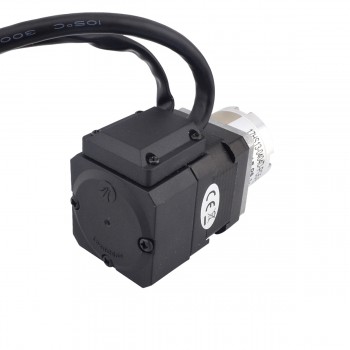

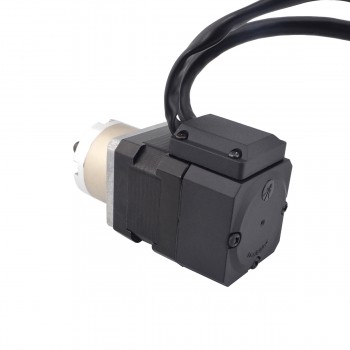

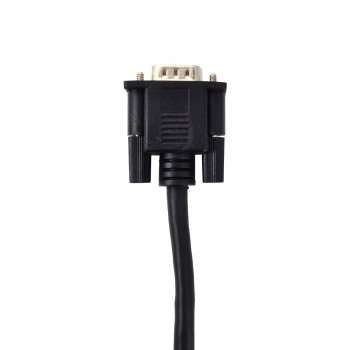

Nema 17 Closed-loop Geared Stepper Bipolar L=34mm 1.8 Deg 0.22Nm 0.40A 12V with 5:1 Encoder 1000CPR

NO.:17HS13-0404D-PG5-E1000
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$70.71

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$67.17	5%
10	$65.76	7%
50	$63.64	10%
100	$61.52	13%

Affiliate Link

Description Specification Custom Options Review

Motor Specification

Manufacturer Part Number: 17HS13-0404D-PG5-E1000
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8 deg
Holding Torque without Gearbox: 0.22Nm(31.16oz.in)
Rated Current/phase: 0.40A
Phase Resistance: 30ohms
Voltage: 12.00V
Inductance: 27mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 27.3mm
Gear Ratio: 5.18
Efficiency: 90%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
Backlash at No-load: <=1deg
Max.Permissible Torque: 2Nm(283.28oz.in)
Moment Permissible Torque: 4Nm(566.56oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Encoder Specification

Driving Voltage : 4.5V to 5.5V
Output current : 20mA
Resolution : 1000cpr
Output Signal : 2 Channels
Bore Diameter : Φ5mm
Output Frequency : ≤60MHz
Running Speed : ≤3600rpm
IP Protection: IP20

Connection

A+	A-	B+	B-
Green	Black	Red	Blue

Resources

Motor Datasheet: 17HS13-0404D-PG5-E1000.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Closed-loop Geared Stepper Bipolar L=34mm 1.8 Deg 0.14Nm 1A 3.20V with 51:1 Encoder 300CPR
Next: Nema 17 Closed-loop Geared Stepper Bipolar L=34mm 1.8 Deg 0.22Nm 0.40A 12V with 14:1 Encoder 1000CPR

Motor Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	26
Holding Torque (oz.in)	36.826
Inductance(mH)	37
Lead Length(mm)	500
Motor Nema Size	Nema 17
No. of Lead	4
Phase Resistance(ohm)	30
Rated Current (A)	0.4
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Step Angle(°)	1.8
Encoder Specification
IP Protection	IP20
Output Current(mA)	20
Output Frequency	≤60KHz
Rated Voltage(V)	5
Resolution(CPR)	1000
Running Speed(rpm)	≤3600rpm
Output Signal Channels	2 Channels
