2Pcs 6V 12V Brushed DC Gear Motor with Encoder 2.5kg.cm Electric Permanent Magnet DC Motor
Features:
1.Small size dc gear motor with low speed and big torque
2.20mm gear motor provide 0.25Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match encoder,3ppr
5.Reduction Ratio: 29、31、56、73、107、182、268、349、456、488;
4 stages: 29:1 / 31:1
5 stages: 56:1 / 73:1
6 stages: 107:1 / 182:1
7 stages: 268:1 / 349:1 / 456:1 / 488:1
Application:
BOAT, Home Appliance, SMART HOME, Other.

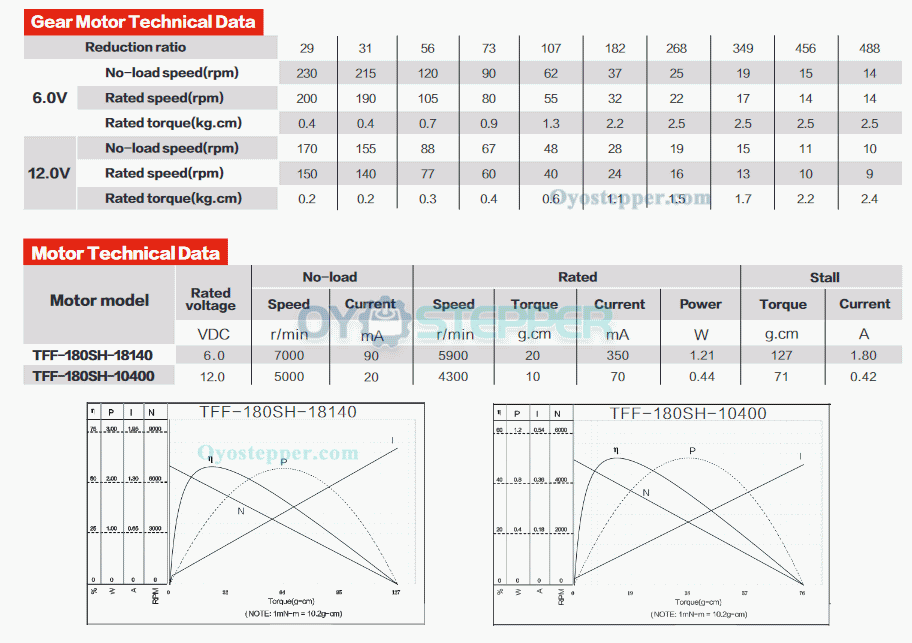

Electrical Specification：
Part Number:GM20-180SH
Rated Voltage:6/12VDC
Rated Torque:2.5kg.cm
Max momentary tolerance torque: 5.0kg.cm
Rated current:350mA(6V)/70mA(12V)
No Load Speed W/O Gearbox: 7000RPM(6V)/5000RPM(6V)
Rated Speed W/O Gearbox: 5900RPM(6V)/4300RPM(12V)
No Load Speed W Gearbox: 15-230 RPM
Rated Speed W/ Gearbox:9-200 RPM
Rated Power:1.21W(6V) / 0.44W(12V)
Gear type:Spur gearbox
Motor type:Brushed
Efficiency: IE 2
Noise:30cm.40-50db

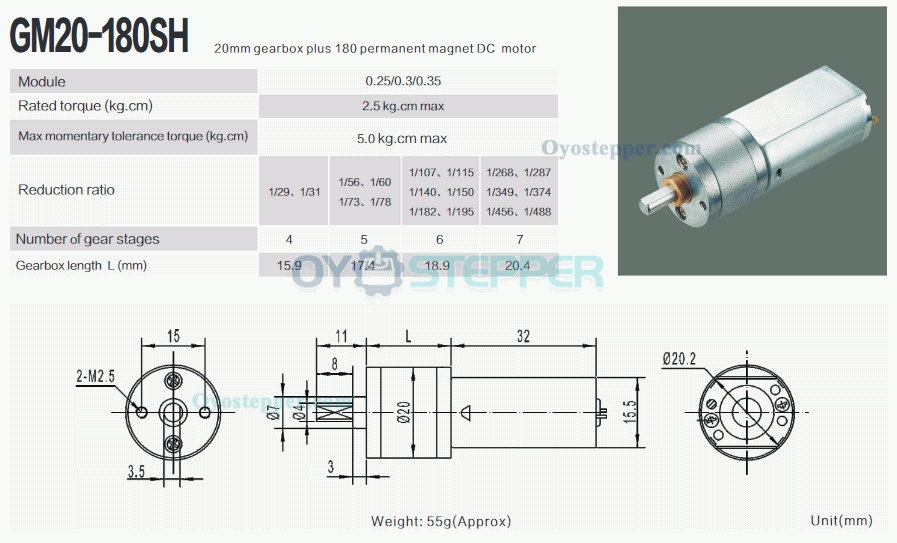

Physical Specification:
Motor Size:20.2x15.5x32mm
Gearbox Length:15.9mm / 17.4mm / 18.9mm / 20.4mm
Flange size:Φ20.2mm
Shaft Type:D-cut
D-cut Diameter:3.5mm
Shaft Length:8mm
Shaft Diameter:4mm
Weight:55g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Power(W) | 0.44 / 1.21 |
| Rated Voltage(V) | 6 / 12 |
| Rated Current (A) | 0.35 / 0.07 |
| Rated Speed(rpm) | 5900 / 4300 |
| Rated Torque(kg.cm) | 0.02 / 0.01 |
| Physical Specification | |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 8 |
| Weight(g) | 55 |
| Body Length(mm) | 32+gearbox |
| Frame Size(mm) | Φ20.2 |
| Gearbox Length(mm) | 15.9 / 17.4 / 18.9 / 20.4 |
| Gearbox Type | Spur gearbox |
| Gear Ratio | 29:1 / 31:1 / 56:1 / 73:1 / 107:1 / 182:1 / 263:1 / 349:1 / 456:1 / 488:1 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
