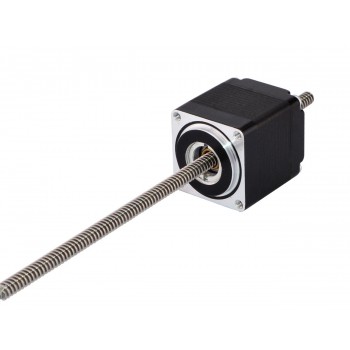

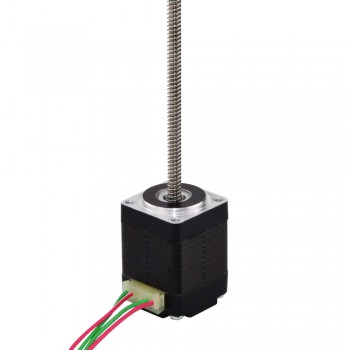

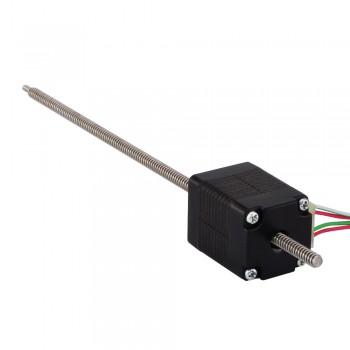

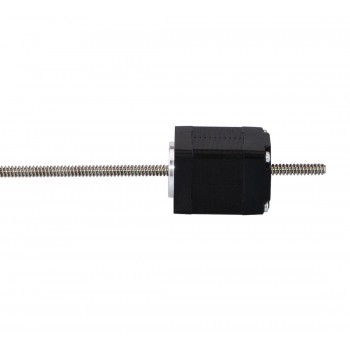

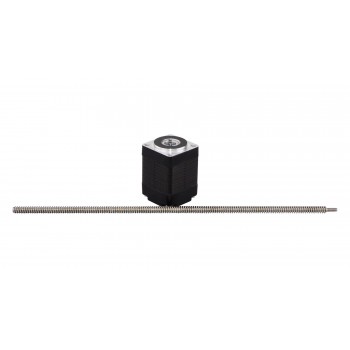

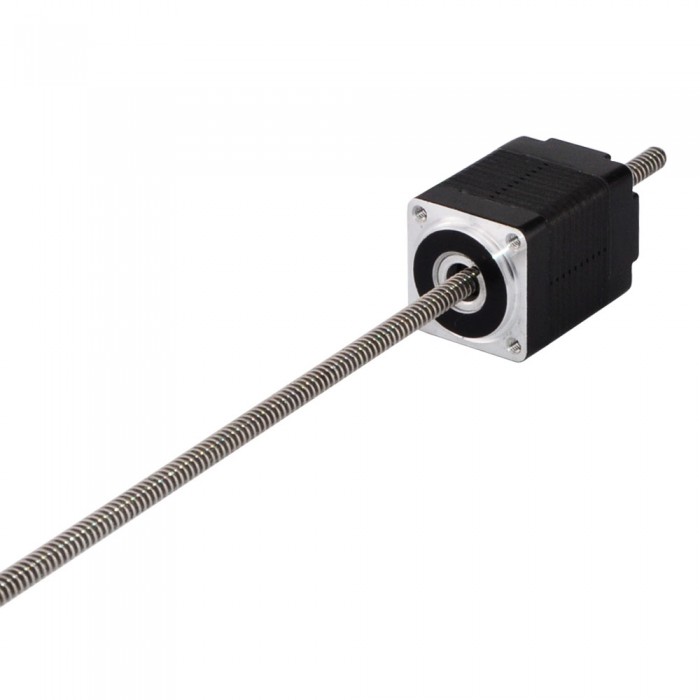

Nema 8 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.24A 5V Lead Revolution 4mm/0.15748" Lead Screw 150mm

Nema 8 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.24A 5V Lead Revolution 4mm/0.15748" Lead Screw 150mm
NO.:8LS11-0244AD-150N
Post a review
Our Price:$110.24
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $104.73 5%
5 $102.52 7%
10 $99.22 10%
50 $95.91 13%
Add To Cart

This model is almost exactly same as Haydon Kerk 21000 series size 8 non-captive stepper motor linear actuator. The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it works with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw, the linear travel is 4mm (0.15748") per revolution.

Electrical Specification

  • Manufacturer Part Number: 8LS11-0244AD-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 10N (300pps)
  • Rated Current/phase: 0.24A
  • Phase Resistance: 20.4ohms
  • Voltage: 5V
  • Inductance: 3.88mH±20%(1KHz)

Physical Specification

  • Frame Size: 20 x 20mm
  • Body Length: 30mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ3.5mm(0.1378")
  • Lead/Step: 0.02mm(0.0007874 " )
  • Lead Travel/Revolution: 4mm(0.15748")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 43g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 8 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.24A 5V Lead Revolution 2mm/0.07874" Lead Screw 150mm
Next: Nema 8 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.24A 5V Lead Revolution 0.6096mm/0.024" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 3.83
Minimal Thrust(N) 10
Motor Type Non-Captive
Phase Resistance(ohm) 21.3
Rated Current (A) 0.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 30
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 150
Lead Revolution(mm) 4
Linear Travel / Step(mm) 0.02
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 08 (20 x 20)
