Nema 8 External Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.24A 5V Lead Revolution 0.6096mm/0.024" Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

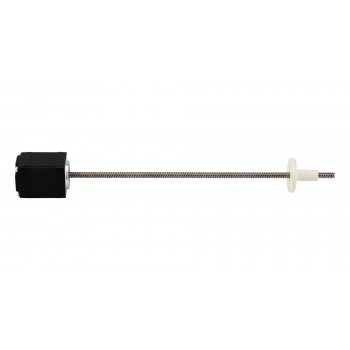

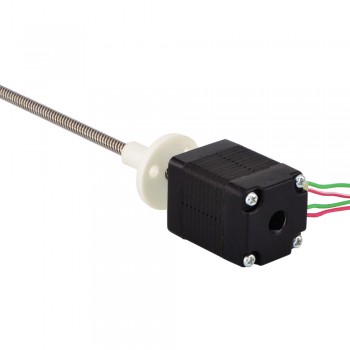

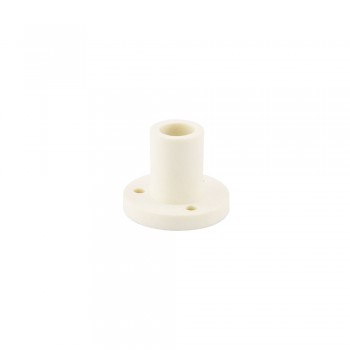

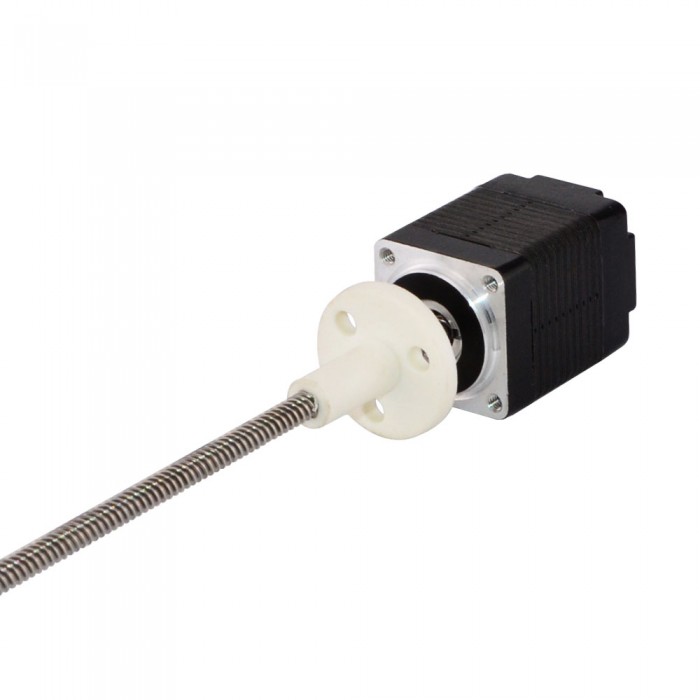

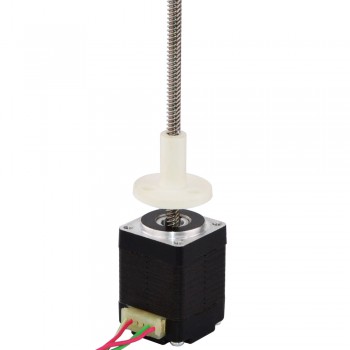

This model is almost exactly same as Haydon Kerk 21000 series size 8 external stepper motor linear actuator. The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it has integrated with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 0.6096mm (0.024") per revolution.
Electrical Specification
Manufacturer Part Number: 8LS11-0244N-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 49N (300pps)
Rated Current/phase: 0.24A
Phase Resistance: 20.4ohms
Voltage: 5V
Inductance: 3.88mH±20%(1KHz)
Physical Specification
Frame Size: 20 x 20mm
Body Length: 30mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.003048mm(0.00012" )
Lead Travel/Revolution: 0.6096mm(0.024")
Number of Leads: 4
Lead Length: 300mm
Weight : 43g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 8LS11-0244N-150E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.83 |
| Minimal Thrust(N) | 49 |
| Motor Type | External |
| Phase Resistance(ohm) | 21.3 |
| Rated Current (A) | 0.24 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 30 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.6096 |
| Linear Travel / Step(mm) | 0.003048 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 08 (20 x 20) |
