Nema 17 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 2.6A 2.33V 4 Wires Lead Screw 250mm
- Manuals and Documentation: Full Datasheet:
Our Price:$92.11

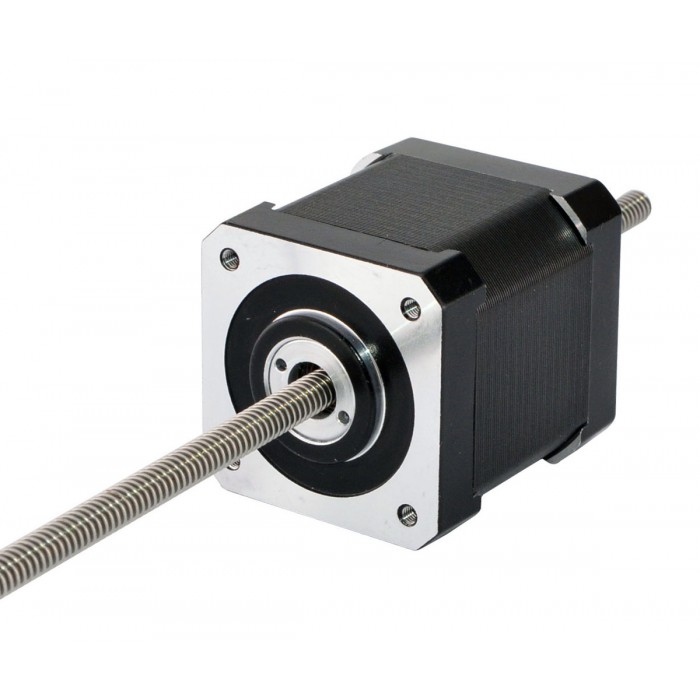

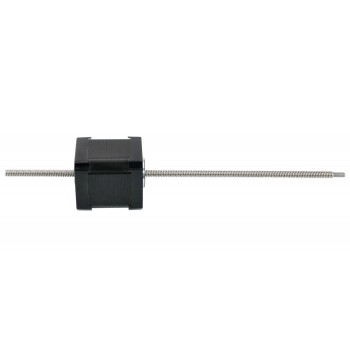

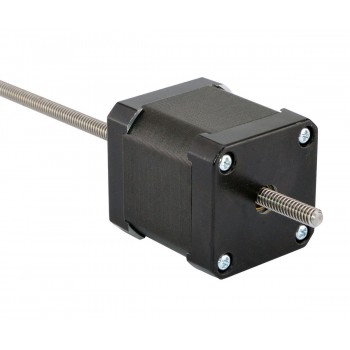

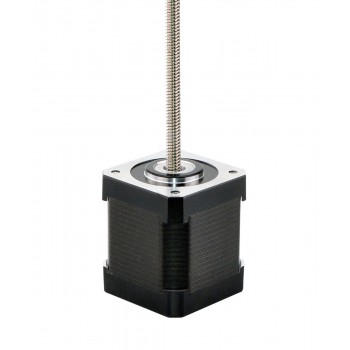

Nema 17 stepper motor, 48 mm body, 1.8° step angle, 2.6 A, with 5.54 mm (0.2181") diameter × 250 mm (9.8425") length lead screw, 4.877 mm (0.192") linear travel per revolution.
Electrical Specification
Manufacturer Part Number: 17LS19-2604Q-250N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 133N (300pps)
Rated Current/phase: 2.6A
Phase Resistance: 0.9ohms
Voltage: 2.33V
Inductance: 1.33mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.024384mm(0.00096")
Lead Travel/Revolution: 4.877mm(0.192")
Number of Leads: 4
Lead Length: 300mm
Weight: 352g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.33 |
| Minimal Thrust(N) | 133 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 2.6 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 47.75 |
| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 250 |
| Lead Revolution(mm) | 4.8768 |
| Linear Travel / Step(mm) | 0.024384 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
