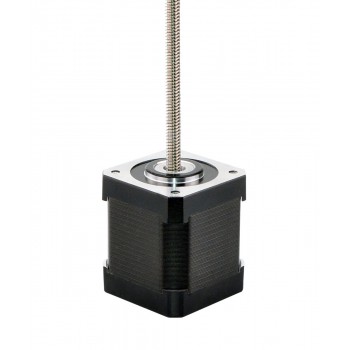

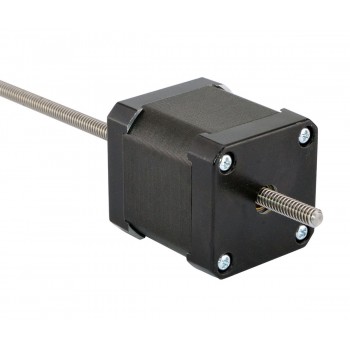

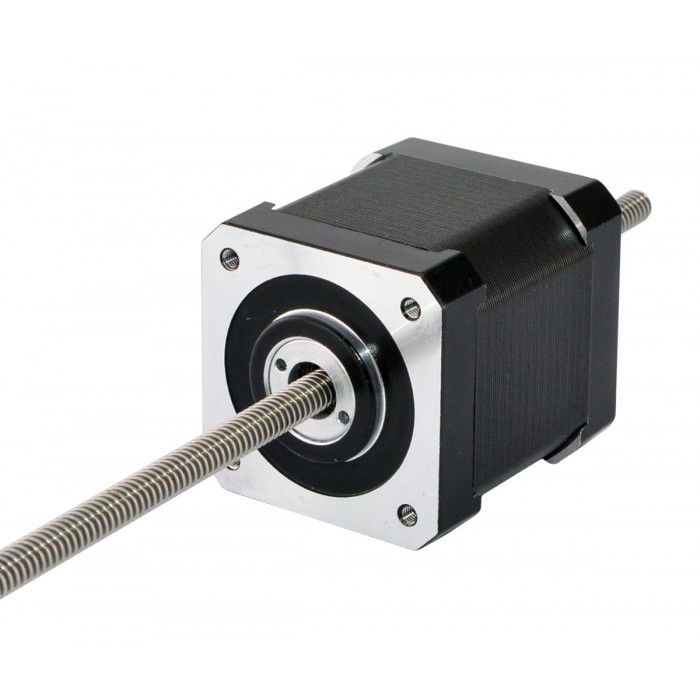

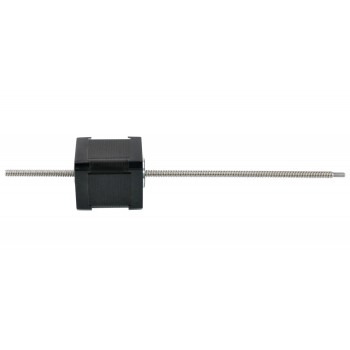

Nema 17 Non-captive 48mm Stack 1.3A Lead 2.4384mm/0.096" Length 250mm

NO.:SKU:17LS19-1304J-250N
Review: Post a review
Latest price:$96.40
Buy It Now:$74.16
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$71.83 $69.52 $67.20 $64.89
Add To Cart

This model is almost exactly same as Haydon Kerk 43000 series size 17 double stack non-captive stepper motor linear actuator. The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it works with a 5.54mm (0.2181") diameter 250mm (9.8425") length lead screw, the linear travel is 2.438mm (0.096") per revolution.

Electrical Specification

  • Manufacturer Part Number: 17LS19-1304J-250N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 252N (300pps)
  • Rated Current/phase: 1.3A
  • Phase Resistance: 3.96ohms
  • Voltage: 5V
  • Inductance: 6.66mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.012192mm(0.00048" )
  • Lead Travel/Revolution: 2.438mm(0.096")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 352g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Non-captive 48mm Stack 1.3A Lead 1.27mm/0.05" Length 250mm
Next: Nema 17 Non-captive 48mm Stack 1.3A Lead 4.877mm/0.192" Length 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 6.66
Minimal Thrust(N) 252
Motor Type Non-Captive
Phase Resistance(ohm) 3.96
Rated Current (A) 1.3
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 47.75
Frame Size(mm) 42x42
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 250
Lead Revolution(mm) 2.4384
Linear Travel / Step(mm) 0.012192
No. of Lead 4
Lead Length(mm) 300
