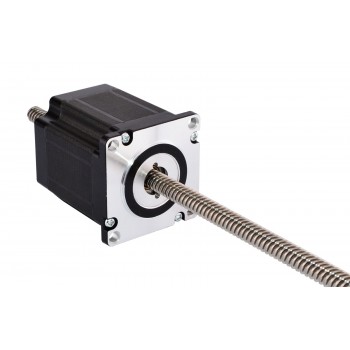

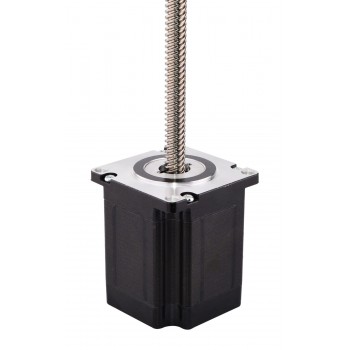

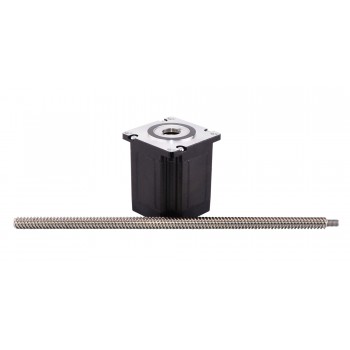

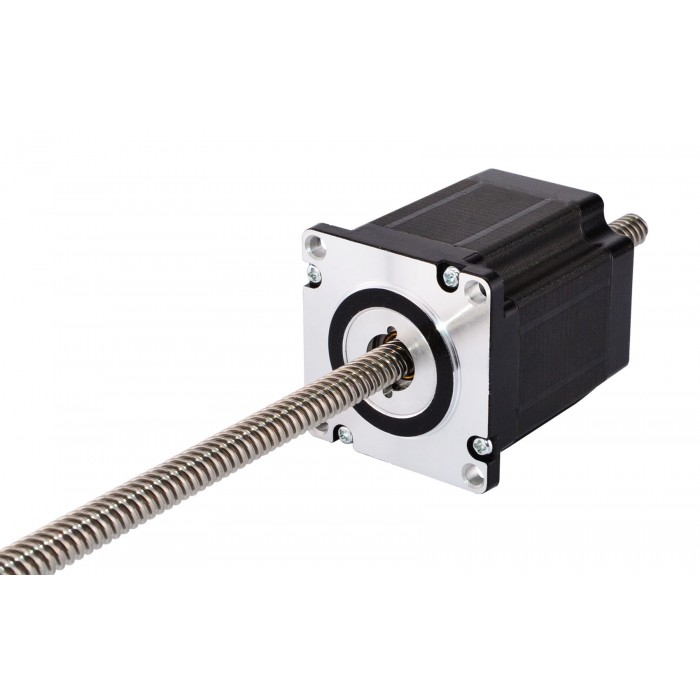

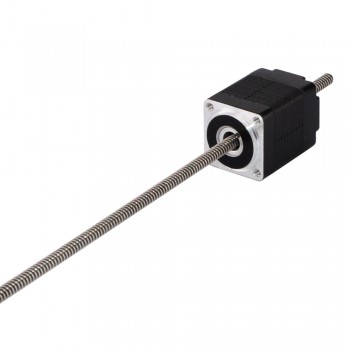

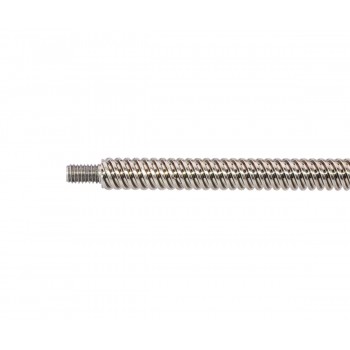

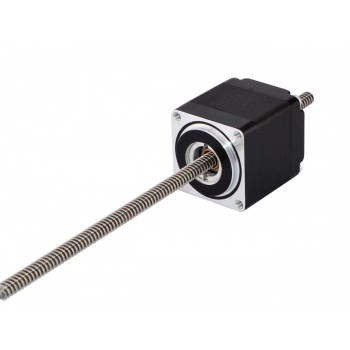

Nema 23 Non-captive Linear Stepper Motor Actuator Bipolar 1.8 Deg 2.5A 5V Lead Revolution 10.16mm/0.4" Lead Screw 250mm

NO.:23LS26-25042-250N
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$154.89

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$147.15	5%
5	$144.05	7%
10	$139.40	10%
50	$134.75	13%

Affiliate Link

Description Specification Custom Options Review

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm (0.3752") diameter 250mm (9.8425") length lead screw, the linear travel is 10.16mm (0.4") per revolution.

Electrical Specification

Manufacturer Part Number: 23LS26-25042-250N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 220N (300pps)
Rated Current/phase: 2.5A
Phase Resistance: 2ohms
Voltage: 5V
Inductance: 7.6mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 66mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ9.53mm(0.3752")
Lead/Step: 0.0508mm(0.002" )
Lead Travel/Revolution: 10.16mm(0.4")
Number of Leads: 4
Lead Length: 300mm
Weight : 958g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Resources

Full Datasheet: 23LS26-25042-250N.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2.5A 5V Lead Revolution 5.08mm/0.2" Lead Screw 250mm
Next: Nema 23 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 2.5A 5V Lead Revolution 1.5875mm/0.0625" Lead Screw 150mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	8.2
Minimal Thrust(N)	220
Motor Type	Non-Captive
Phase Resistance(ohm)	2.1
Rated Current (A)	2.5
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	66
Lead Screw Diameter(mm)	9.53
Lead Screw Length(mm)	250
Lead Revolution(mm)	10.16
Linear Travel / Step(mm)	0.0508
No. of Lead	4
Lead Length(mm)	300
Frame Size(mm)	Nema 23 (57 x 57)
