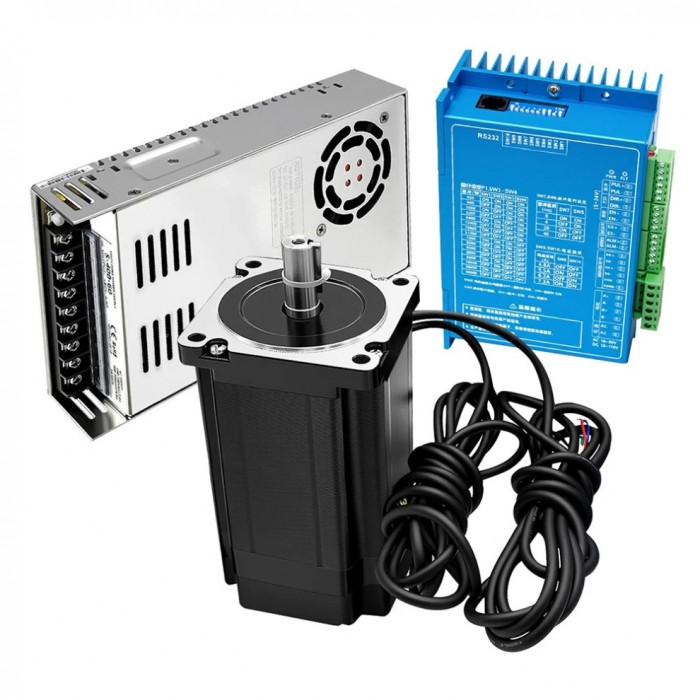

Nema 23 Closed Loop Stepper Motor 1.2-3Nm 57×57mm& HB8080C Driver Kit

Features:

Closed-Loop System: Nema 23 closed-loop stepper motors with 1000-line encoders.

Motor Torque: 1.2Nm, 2Nm, 3Nm is available.

DSP Drivers: HB8080C drivers with a peak current of 13A and a response frequency of 200KHz for responsive control.

Supports 24-80VDC input and PUL/DIR or CW/CCW signals. Offers 200 to 25,600 microsteps.

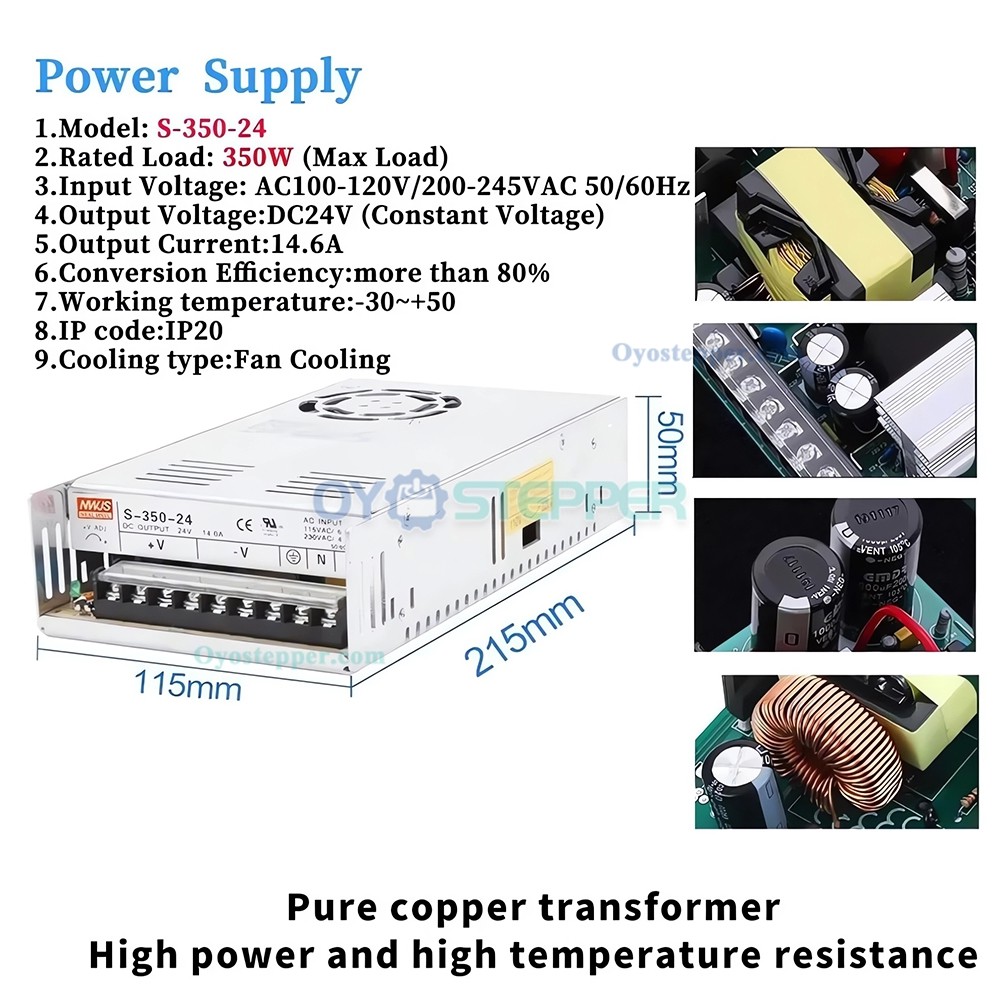

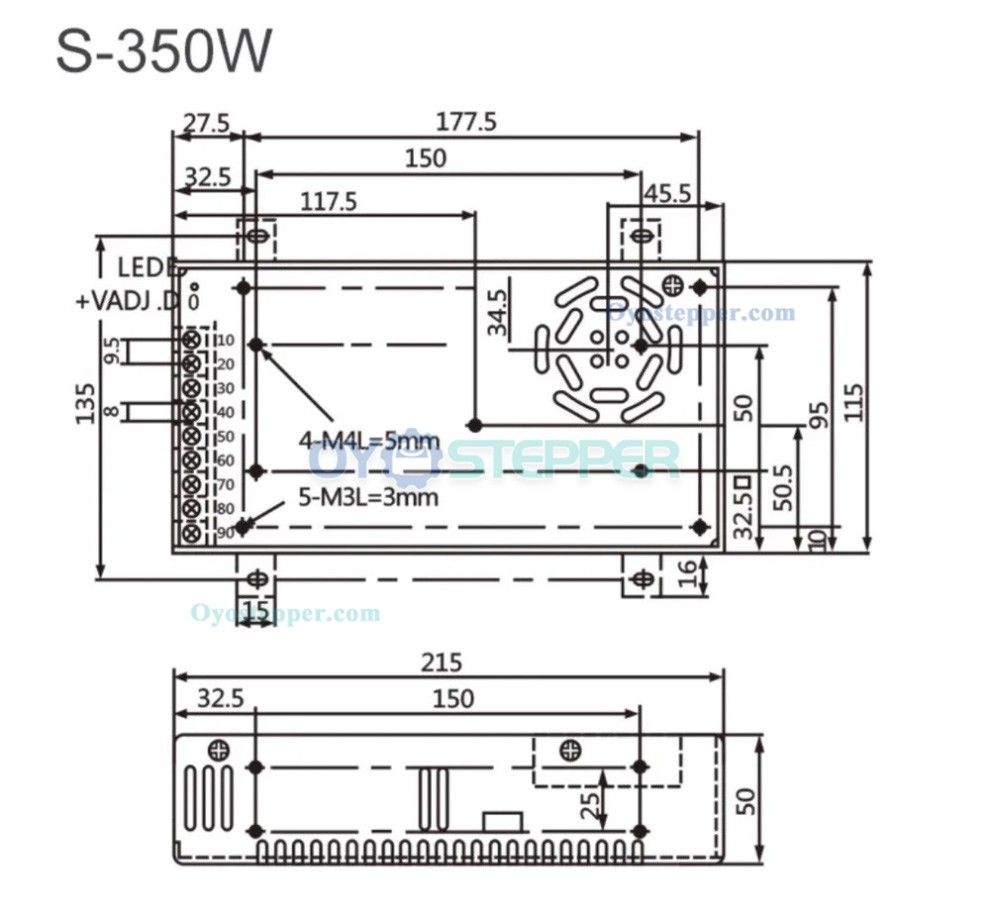

Power Supply: 350W 24V DC power supply with over-current, over-voltage, and load protection. Dual AC input (110V/220V switchable).

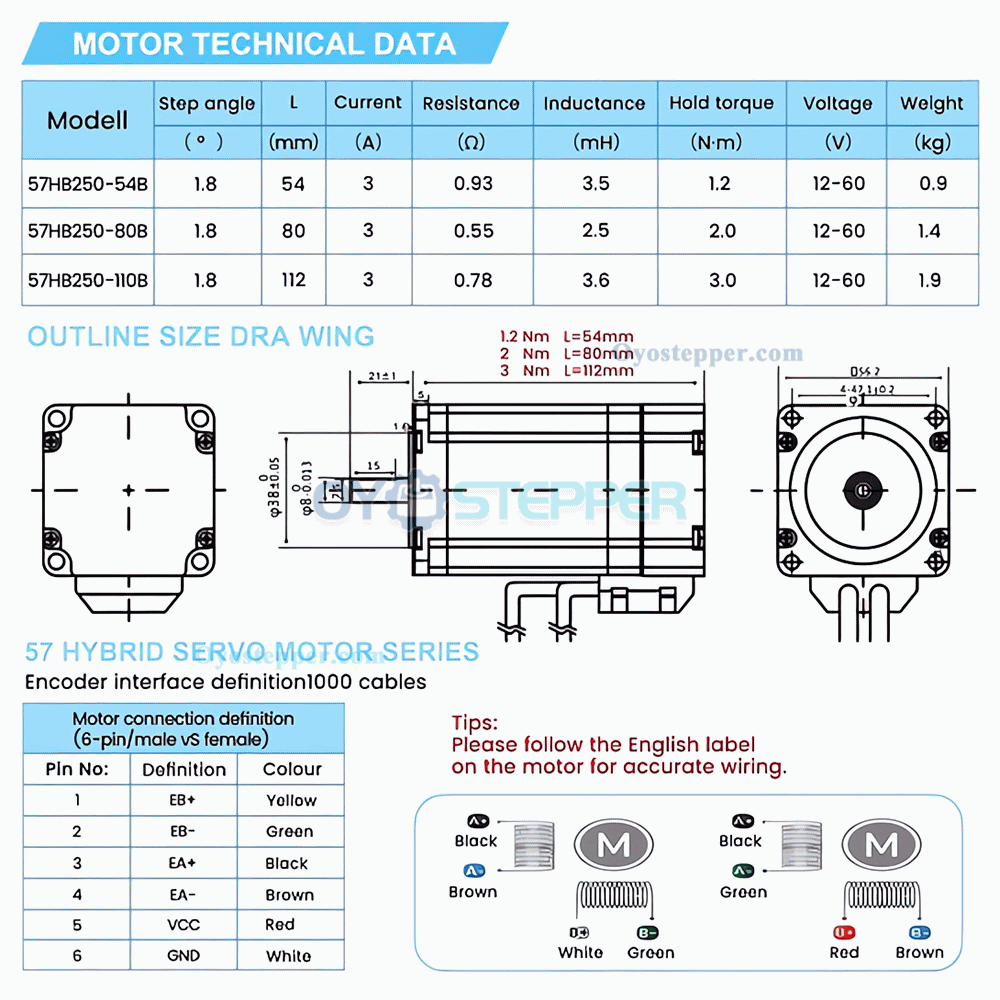

Motor Dimensions:

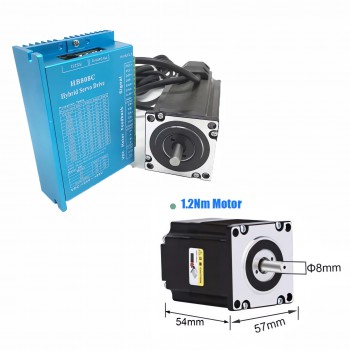

57HB250-54B-1.2Nm:(57×57×54mm)

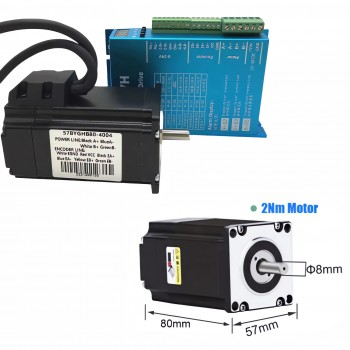

57HB250-80B-2Nm:(57×57×80mm)

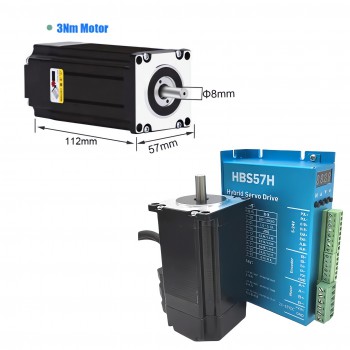

57HB250-110B-3Nm:(57×57×112mm)


Applications:

CNC Machinery: Milling, engraving, cutting, and lathe operations.

Automated Manufacturing: Used in robotic arms, conveyor systems, and assembly lines.

3D Printing & Laser Cutting: Provides positioning for layer transitions.

DIY CNC Projects: For hobbyists upgrading motion control capabilities.

Industrial Automation: Used for packaging, textile machinery, and rotary indexing systems.

HB808C 2 Phase AC18-80V Closed Loop Stepper Motor Driver Nema 17/23/24 Motor


Features:

Uses digital control chip with vector closed-loop control;

Torque attenuation is low, supporting speed up to 3000 rpm;

Supports AC 18–80 V or DC 20–110 V power input;

16-level subdivision, customizable on request;

Compatible with 5–24 V input, no external series resistance required;

Maximum response frequency: 400 kHz;

Current regulation adjusts automatically to reduce power consumption at low load and increase torque at high load.

External alarm and position output ports for monitoring and control;

Supports single or dual pulse modes; default pulse + direction control;

Pulse delay adjustable by dial switch; factory default 40 ms;

Includes protection functions for over-current and overload;

Compatible with 2-phase Nema 17, 23, and 24 hybrid servo motors (stepper motor with encoder) with the position loop closed in real time.
