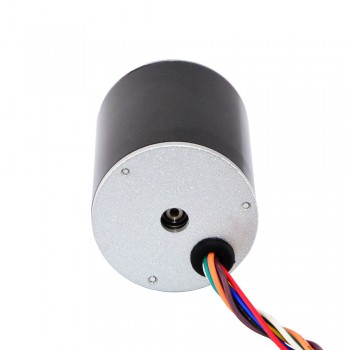

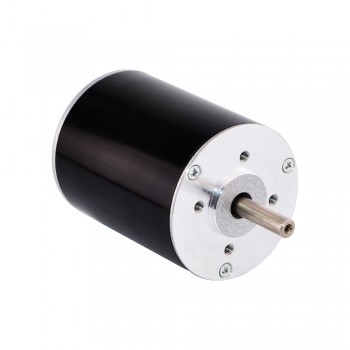

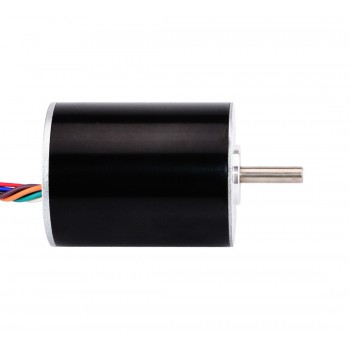

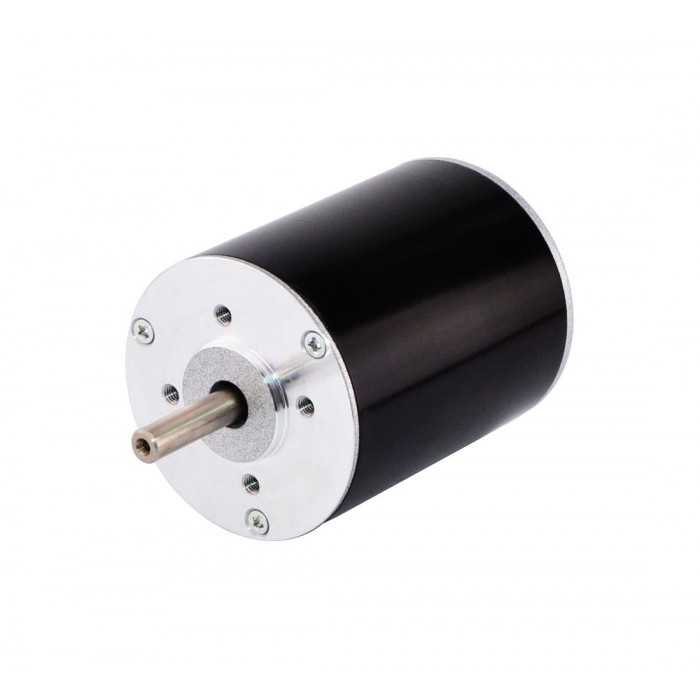

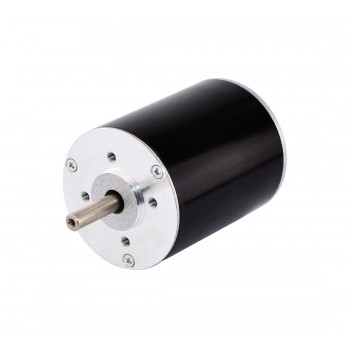

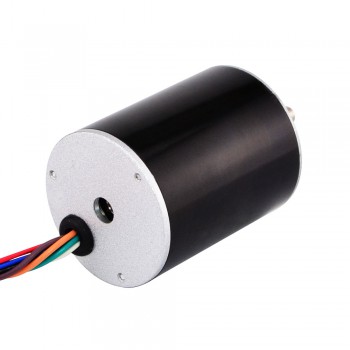

12V BLDC Motor 3000RPM 0.048Nm 15W 1.9A Round Ф42x53mm 42BLR High Speed Brushless DC Motor
Electrical Specification
Manufacturer Part Number: 42BLR53-12-01
Phase: 3
Poles: 4
Rated Voltage: 12V
Rated Speed: 3000±10%RPM
Noload Speed: 3800RPM
Rated Torque: 0.048Nm(6.8oz.in)
Rated Current: 1.9±10%A
Noload Current: 0.7A
Rated Power: 15W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ42mm
Body Length: 53mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.35kg
Connection
|
U
|
V
|
W
|
+5V
|
GND
|
A
|
B
|
C
|
|
ORG
|
GRN
|
BRW
|
RED
|
BLK
|
YEL
|
WHT
|
BLU
|
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 4 |
| Rated Current(A) | 1.9 |
| Rated Power(W) | 15 |
| Rated Speed(rpm) | 3000±10% |
| Rated Torque(Nm) | 0.048 |
| Rated Torque(oz.in) | 6.8 |
| Rated Voltage(V) | 12 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Flange Size(mm) | Ф42 |
| Body Length(mm) | 53 |
| Physical Specification | |
| Weight(g) | 350 |
