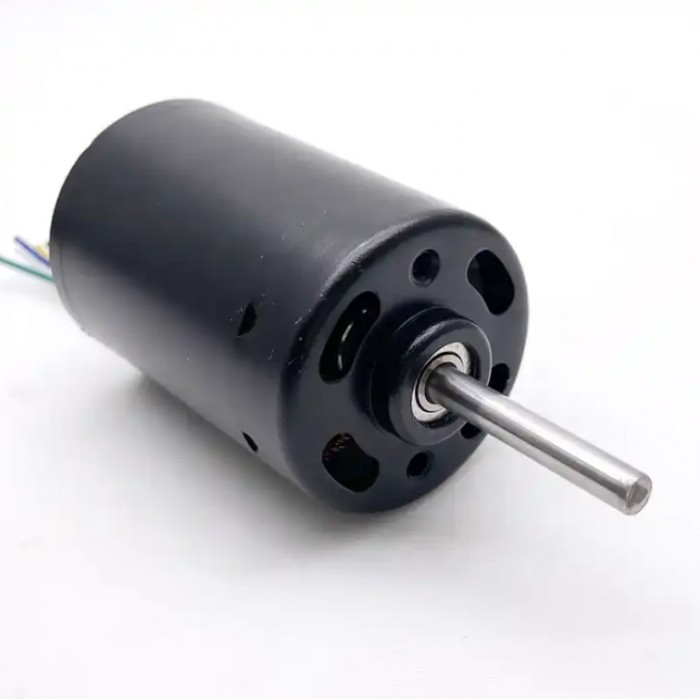

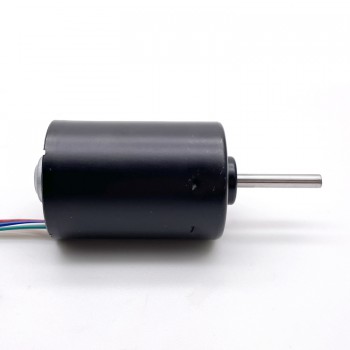

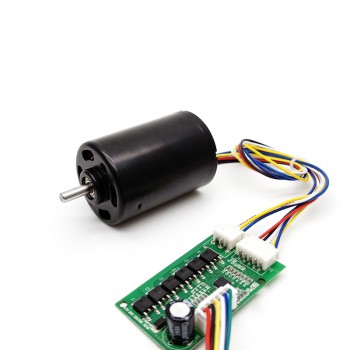

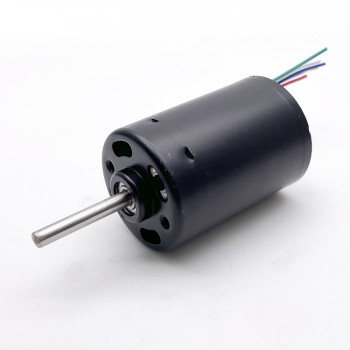

2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor Built-in Drive 500g.cm 5000RPM

2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor Built-in Drive 500g.cm 5000RPM
NO.:TEC4260
Post a review
Our Price:$55.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $53.18 5%
10 $52.06 7%
50 $50.38 10%
100 $47.58 15%
Add To Cart



Features:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Planetar Gear Reducer

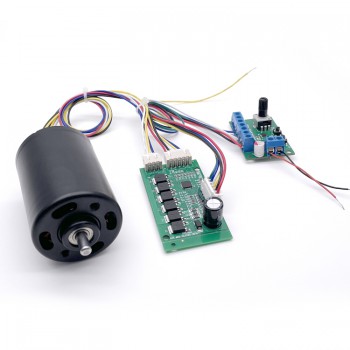

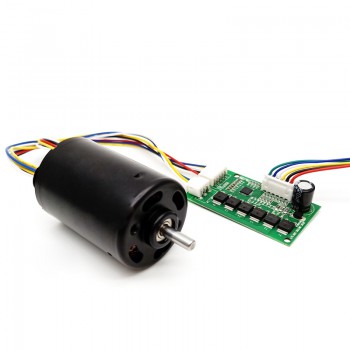

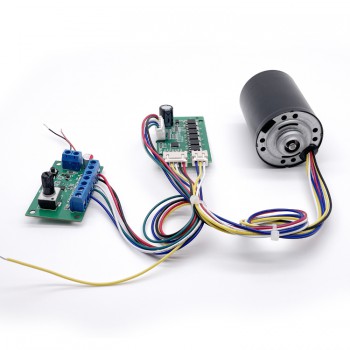

Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver
Since it has low interference, low noise, and a long life, brushless dc motors (BLDC motors) have gained popularity. It is paired with a high-precision planetary gearbox based on its reliable performance, which significantly increases the motor's torque and lowers its speed, making it suitable for a variety of application fields.

Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Hair Drye,r Printer, DC Electric Motors.

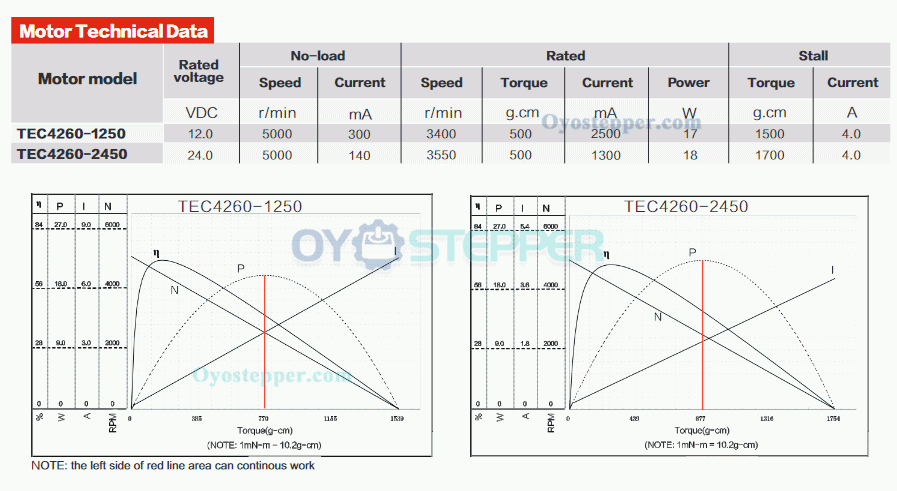

Electrical Specification:
Part Number: TEC4260
Rated Power:17W(12V)/18W(24V)
Rated Voltage:12V/24V
Rated Current(A):2500mA(12V) / 1300mA(24V)
Rated Torque:500g.cm
Rated Speed:3400rpm(12V)/3550rpm(24V)
No Load Speed : 5000RPM
Stall Torque:1500g.cm(12V)/1700g.cm(24V)
Stall Current:4.0A
Efficiency:IE 4
Efficiency: 65%
Noise:30cm.40-50db

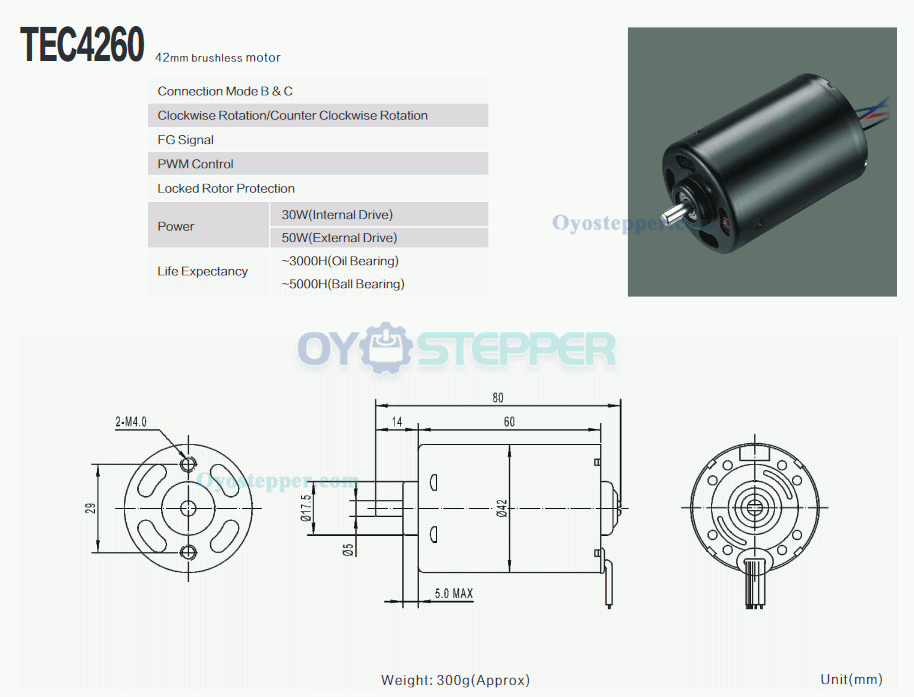

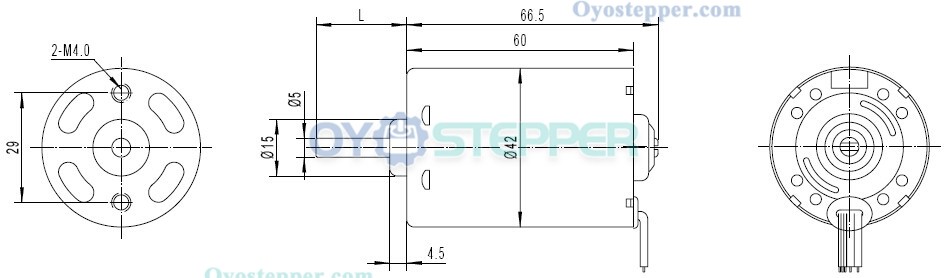

Physical Specification:
Motor Size:Φ42mm*60mm
Motor Diameter:42mm
Motor Length:60mm
Shaft Type:O
Shaft Diameter:5mm
Shaft Length:9mm
Weight:300g

2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor Built-in Drive 500g.cm 5000RPM

2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor Built-in Drive 500g.cm 5000RPM

2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor Built-in Drive 500g.cm 5000RPM



Resources

TEC4260.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V High Torque Brushless DC Motor BLDC Motor 36mm 1000-1800g.cm
Next: 2Pcs 12V 24V Brushless DC Motor Electric BLDC DC Motor 500g.cm 21-24W 5000RPM
Physical Specification
Body Length(mm) 60
Shaft Diameter(mm) 5
Weight(g) 300
Lead Length(mm) Φ42mm
Shaft Length(mm) 9
Shaft Type O
Frame Size(mm) 42*66.5mm
Single Shaft/Dual Shaft Single Shaft
Product Type BLDC Motor
Electrical Specification
Rated Voltage(V) 24 / 12
Rated Power(W) 18 / 17
Rated Torque(kg.cm) 0.5
Rated Speed(rpm) 3400
Rated Current (A) 2.5 / 1.3
