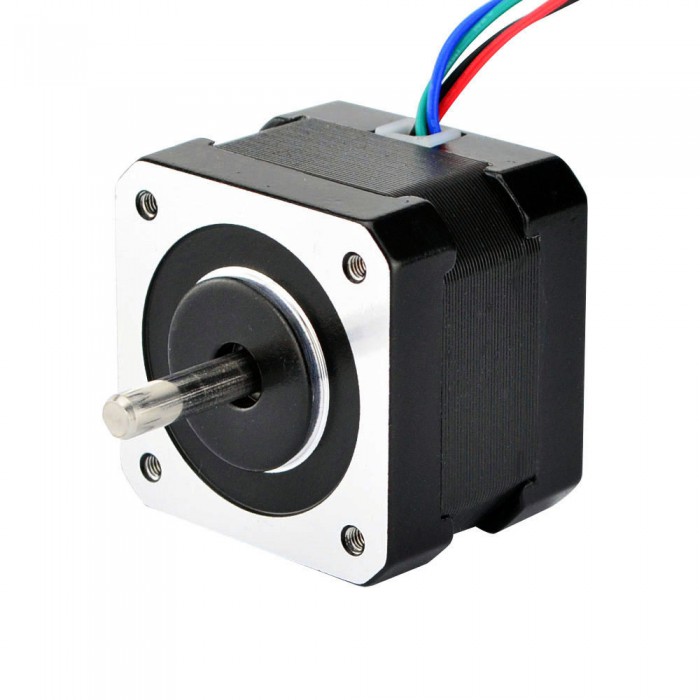

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 26Ncm (36.8oz.in) 0.4A 12V 42x34mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$11.62

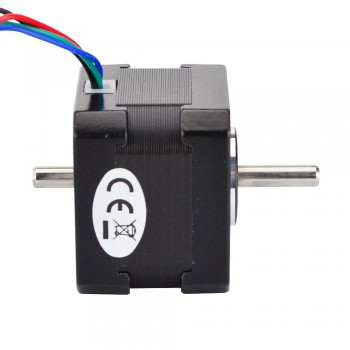

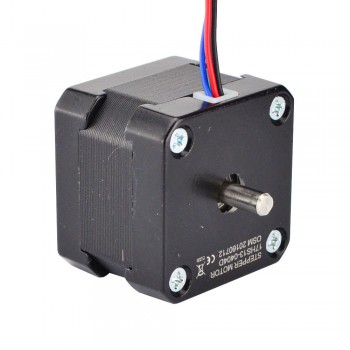

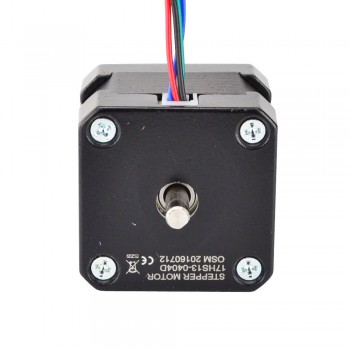

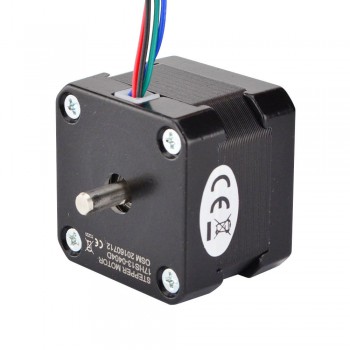

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in). A rear shaft is available.
Electrical Specification
Manufacturer Part Number: 17HS13-0404D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 26Ncm(36.8oz.in)
Rated Current/phase: 0.4A
Voltage: 12V
Phase Resistance: 30ohms
Inductance: 37mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Front Shaft Length: 20mm
Rear Shaft Length: 10mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 400mm
Weight: 230g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 280 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
