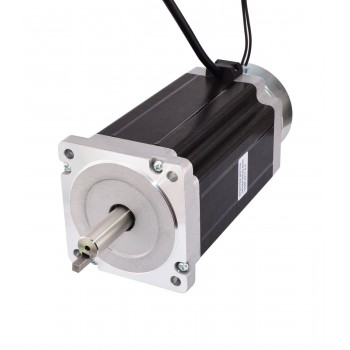

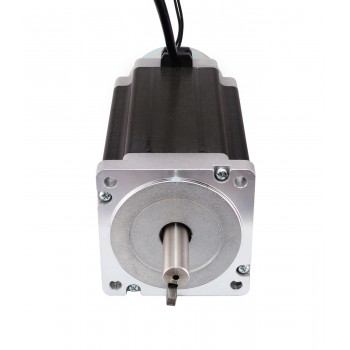

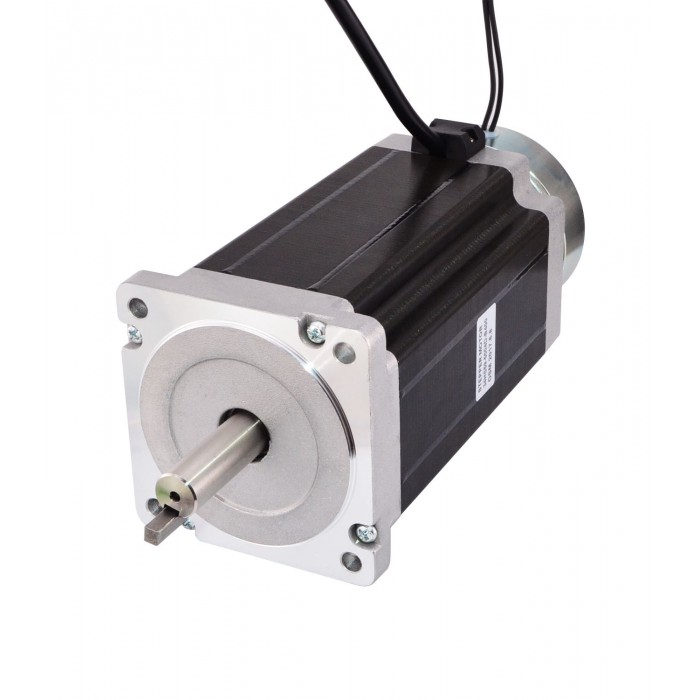

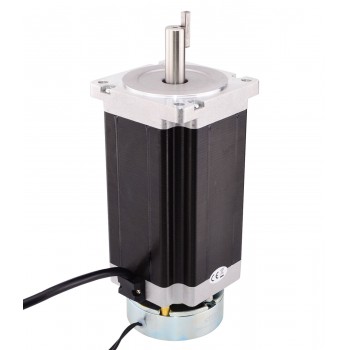

Nema 34 Stepper Motor Bipolar 1.8 Deg 13.0Nm(1841oz.in) 5A 5V with Brake 4 Wires Keyway Shaft

Nema 34 Stepper Motor Bipolar 1.8 Deg 13.0Nm(1841oz.in) 5A 5V with Brake 4 Wires Keyway Shaft
NO.:34HS59-5004D-B400
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$181.22
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $172.16 5%
5 $168.53 7%
10 $163.10 10%
50 $157.66 13%
Add To Cart

Motor Specification

Manufacturer Part Number: 34HS59-5004D-B400

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 13Nm(1841oz.in)

Rated Current/phase: 5A

Voltage: 5V

Phase Resistance: 1ohms

Inductance: 11mH ± 20%(1KHz)

Frame Size: 86 x 86mm

Body Length: 151.5mm

Shaft Diameter: Φ14mm

Shaft Length: 37mm

Key-way Length: 25mm

Number of Leads: 4

Lead Length: 500mm

Weight: 5kg

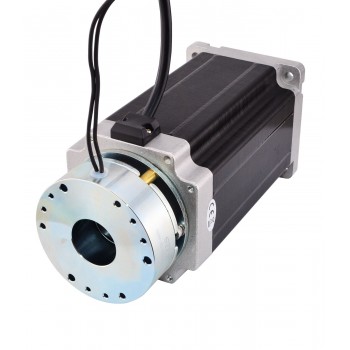

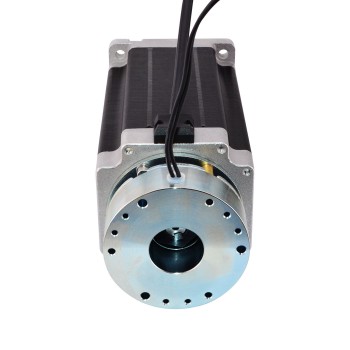

Brake Specification

Static Friction Torque : 4Nm(566.4oz.in)

Moment of Interia : 23x10-6 kg.cm2

Voltage : 24V

Power : 13W

Heat-resistance Class: F

Max. Speed : 5000rpm

Weight : 0.8kg



Connection

A+
A-
B+
B-
Red
Black
Yellow
Blue

Resources

Motor Datasheet: 34HS59-5004D-B400.pdf

Brake Datasheet: SWB-05.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 Stepper Motor Bipolar 1.8 Deg 8.5Nm(1204oz.in) 5A 5V with Brake 4 Wires Keyway Shaft
Next: 5mm - 5mm Flexible Shaft Coupling 18x25mm CNC Stepper Motor Shaft Coupler
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 151.5
Holding Torque (Ncm) 1300
Holding Torque (oz.in) 1841
Inductance(mH) 11
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 1
Rated Current (A) 5
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Bipolar/Unipolar Bipolar
Brake Specification
Heat-resistance Class F
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 23x10-6
Power(W) 13
Static Friction Torque(Nm) 4
Static Friction Torque(oz.in) 566
Driving Voltage(V) 24
