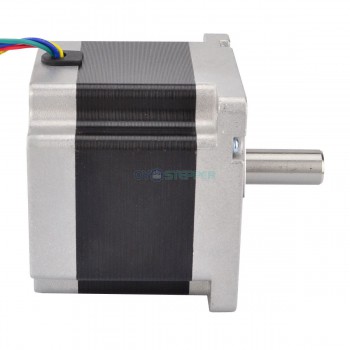

1 Axis Stepper Motor CNC Kit 4.5Nm(637oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver

1 Axis Stepper Motor CNC Kit 4.5Nm(637oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
NO.:1-OK2D872-34HS31
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$83.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $79.05 5%
10 $77.39 7%
50 $74.89 10%
100 $72.39 13%
Add To Cart

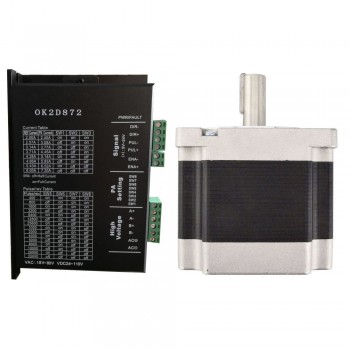

This CNC kit included:

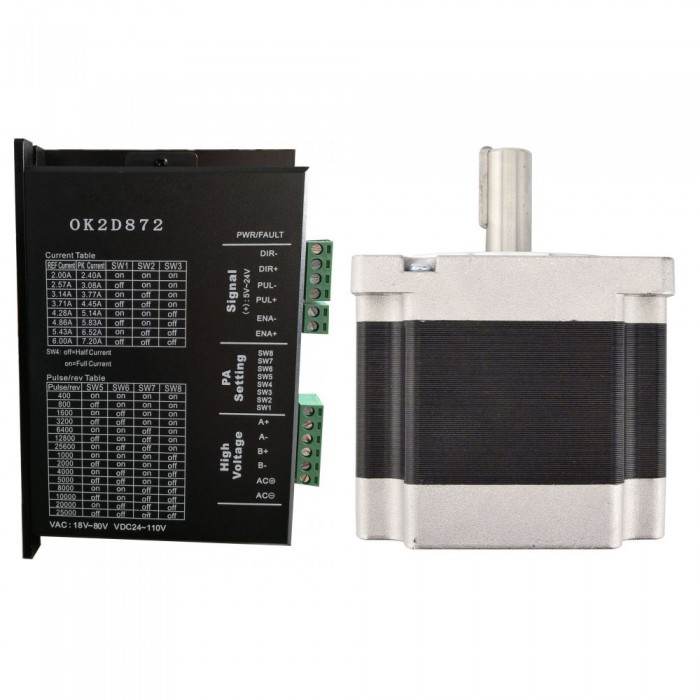

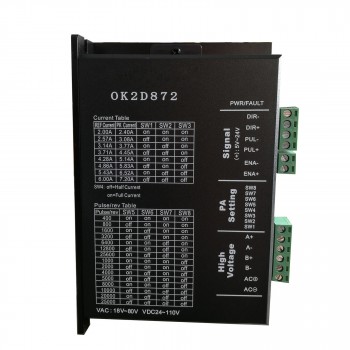

  • 1 x OK2D872 Two-Phrase Digital Stepper Driver for NEMA 23 NEMA 24 NEMA 34 Stepper Motor

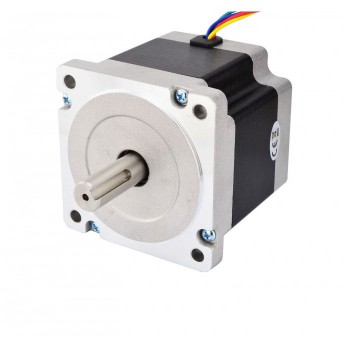

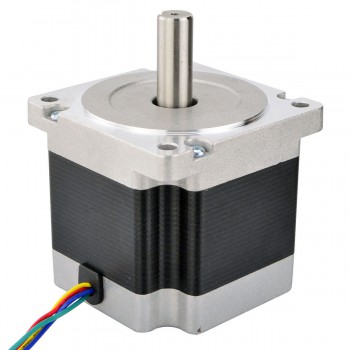

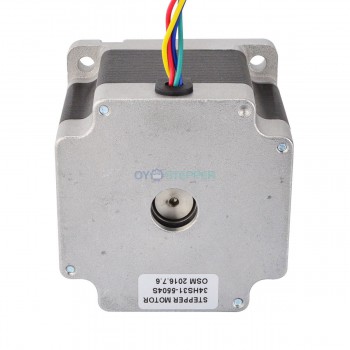

  • 1 x Nema 34 CNC Stepper Motor 4.5Nm (637oz.in) 5.5A 86x86x80mm Key Way Shaft

Motor Specification

  • Manufacturer Part Number: 34HS31-5504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 4.5Nm(637oz.in)
  • Rated Current/phase: 5.5A
  • Voltage: 2.2V
  • Phase Resistance: 0.4ohms
  • Inductance: 3.5mH ± 20%(1KHz)
  • Frame Size: 86 x 86mm
  • Body Length: 80mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 35mm
  • Key-way Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

Features:
Built in high subdivision, low vibration, low heat generation, and stable low-speed operation;
Current vector control, high current efficiency;
Built in acceleration and deceleration control to improve smoothness of start stop;
Single and double pulse control modes can be selected;
Memory of motor operating position;
Input signal differential optocoupler isolation, compatible with 5V~24V;
Overcurrent protection, overvoltage protection;
Automatic detection, flexible selection of pulse edge counting method;
Green light indicates operation, while red light indicates protection or offline;

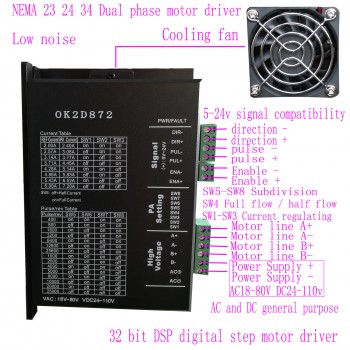

The SW1-3 current dial settings are shown in the table below.




Electrical Specifications:
Output Peak Current: 1.4~5.6A
Input Voltage: 24-110VDC, 18-80VAC
Pulse Input Frequency: 0~200kHz
Protection:
a.Peak overcurrent action value 6A ±10%
b.Overvoltage voltage action value 50VC
Defaul communication rate:57.6Kbps
Overall dimensions:19.5x60x96mm
Weight: Approx.280g;


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Humidity: 40%RH-90%RH
Operating Temperature: 0℃ - 70℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ - 80℃;

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Motor CNC Kit 4.0Nm(566oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver
Next: 1 Axis Stepper Motor CNC Kit 8.5Ncm(1204oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 80
Holding Torque (Ncm) 450
Holding Torque (oz.in) 637.3
Inductance(mH) 3.5
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.4
Rated Current (A) 5.5
Shaft Diameter(mm) 14
Shaft Length(mm) 35

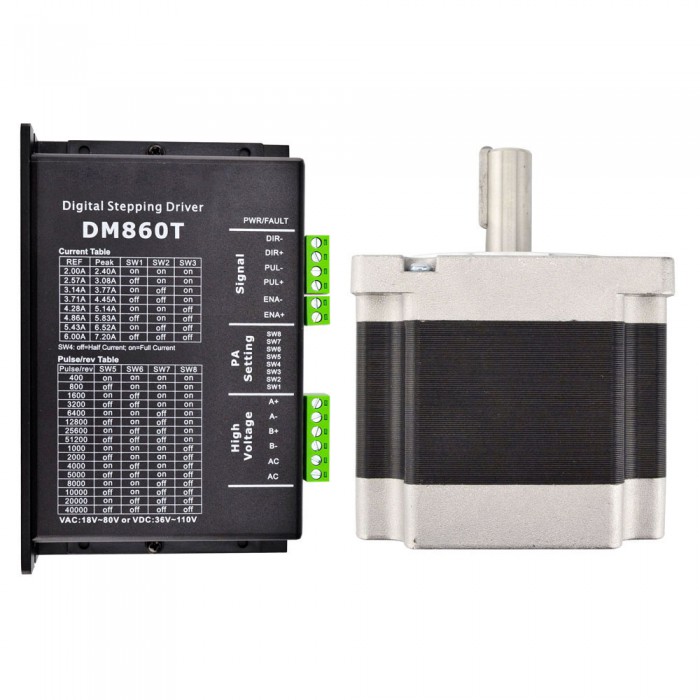

Stepper Driver Specification
Driving Voltage(V) 18 - 80VAC / 36 - 110VDC
Output Current(A) 2.4 - 7.2
Microstep(Steps/rev.) 400 - 51200
Max. Pulse Input(kHZ) 200
Pulse Width(μs) 2.5
Physical Specification
Weight(g) 3250
