1 Axis Stepper Motor Kit 13.0Nm(1841oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 20th, 2024
- Note:No coupon code needed, please place order directly!

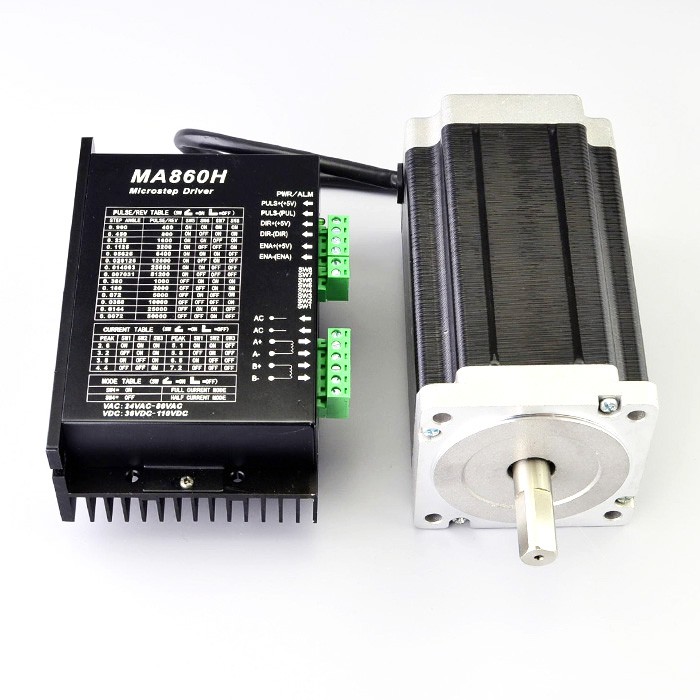

This CNC kit included:

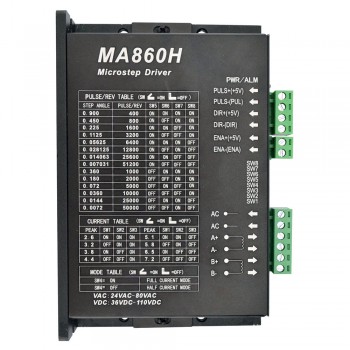

1 x Stepper Motor Driver 2.4-7.2A Max 80VAC or 110VDC MA860H

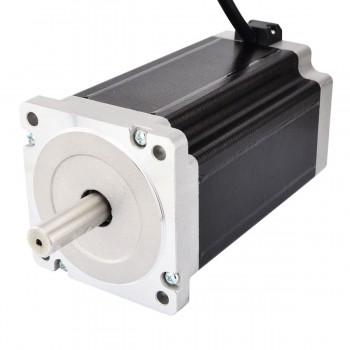

1 x Nema 34 CNC High Torque Stepper Motor 13Nm (1841oz.in) 5A 86x86x150mm
Motor Specification
Manufacturer Part Number: 34HS59-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5A
Voltage: 5V
Phase Resistance: 1ohms
Inductance: 11mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 150mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.2kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Driver Specification
Supply voltage up to 80VAC or +110VDC
Output current up to 7.2A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 300 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
Suitable for 2-phase and 4-phase motors
Short-voltage, over-voltage, over-current and short-cicuit protection
Resources
Motor Datasheet: 34HS59-5004S.pdf
Driver Manual: MA860H.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 150 |
| Holding Torque (Ncm) | 1300 |
| Holding Torque (oz.in) | 1841 |
| Inductance(mH) | 11 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 36 - 110VDC / 24 - 80VAC |
| Output Current(A) | 2.6 - 7.2 |
| Microstep(Steps/rev.) | 400 - 51200 |
| Max. Pulse Input(kHZ) | 300 |
| Pulse Width(μs) | 1.5 |
| Physical Specification | |
| Weight(g) | 6300 |
