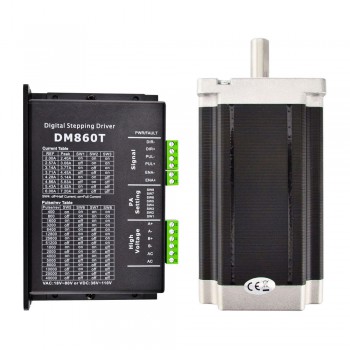

1 Axis Stepper Motor CNC Kit 8.5Ncm(1204oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!

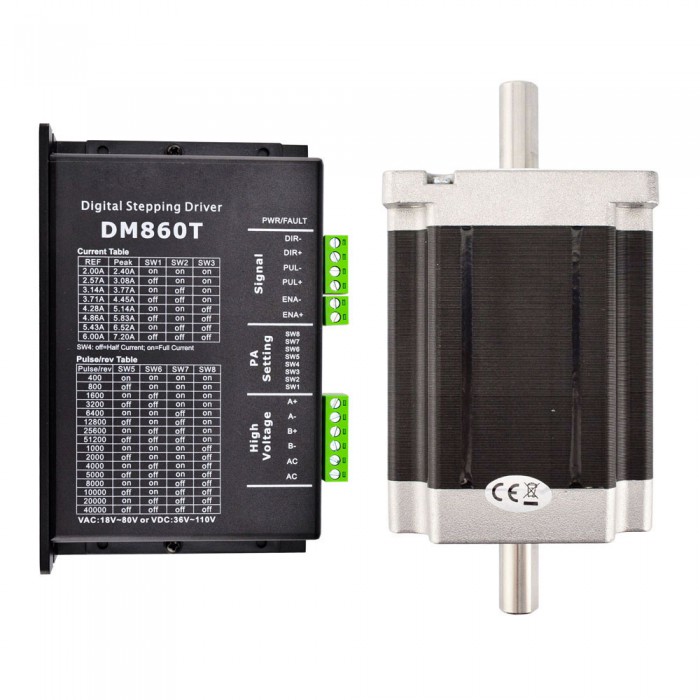

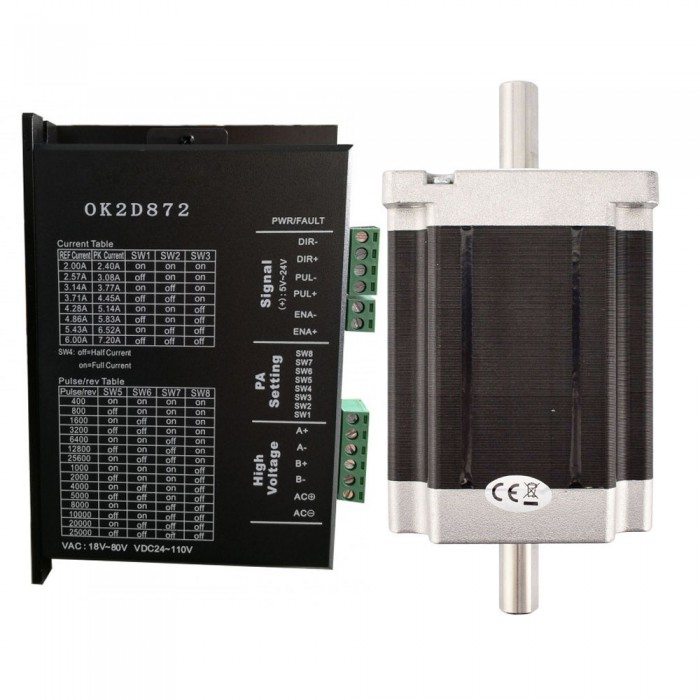

This CNC kit included:
- 1 x OK2D872 Two-Phrase Digital Stepper Driver for NEMA 23 NEMA 24 NEMA 34 Stepper Motor

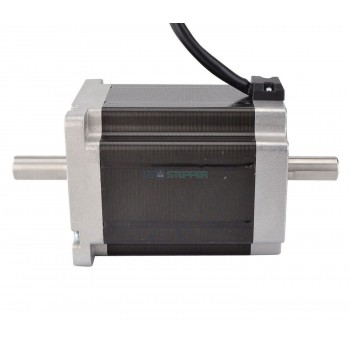

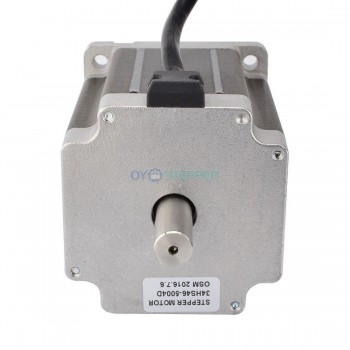

- 1 x Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm (1204oz.in) 5A 86x114mm

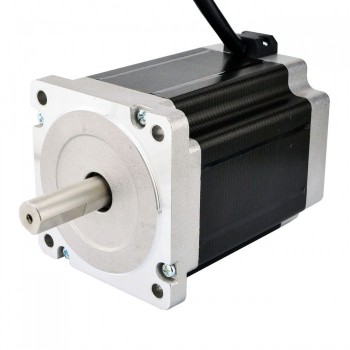

Motor Specification
- Manufacturer Part Number: 34HS46-5004D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 8.5Nm(1204oz.in)
- Rated Current/phase: 5A
- Voltage: 5V
- Phase Resistance: 1ohms
- Inductance: 11mH ± 20%(1KHz)
- Frame Size: 86 x 86mm
- Body Length: 114mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- D-cut Length: 25mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 1.2kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|

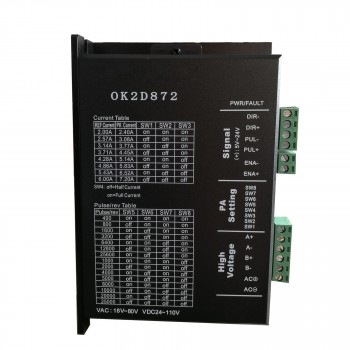

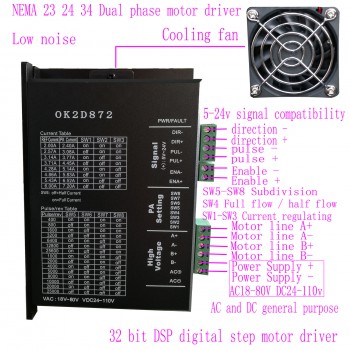

Driver Specification
Features:
Built in high subdivision, low vibration, low heat generation, and stable low-speed operation;
Medium and high speed torque compensation;
Current vector control, high current efficiency;
Built in acceleration and deceleration control to improve smoothness of start stop;
Single and double pulse control modes can be selected;
Memory of motor operating position;
Input signal differential optocoupler isolation, compatible with 5V~24V;
Overcurrent protection, overvoltage protection;
Automatic detection, flexible selection of pulse edge counting method;
Green light indicates operation, while red light indicates protection or offline;
The SW1-3 current dial settings are shown in the table below.
Electrical Specifications:
Output Peak Current: 1.4~5.6A
Input Voltage: 24-110VDC, 18-80VAC
Pulse Input Frequency: 0~200kHz
Protection:
a.Peak overcurrent action value 6A ±10%
b.Overvoltage voltage action value 50VC
Defaul communication rate:57.6Kbps
Overall dimensions:19.5x60x96mm
Weight: Approx.280g;
Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Humidity: 40%RH－90%RH
Operating Temperature: 0℃ － 70℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 80℃;
Resources
- Motor Datasheet: 34HS46-5004D.pdf
- Motor Torque Curve: 34HS46-5004D_Torque_Curve.pdf
- Driver Manual: OK2D872 user manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 114 |
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.7 |
| Inductance(mH) | 11 |
| Lead Length(mm) | 300 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Stepper Driver Specification | |
| Max. Pulse Input(kHZ) | 200 |
| Pulse Width(μs) | 2.5 |
| Driving Voltage(V) | 24-110VDC, 18-80VAC |
| Output Current(A) | 1.4 - 5.6 |
| Microstep(Steps/rev.) | 400 - 25600 |
| Physical Specification | |
| Weight(g) | 4850 |
