1 Axis Stepper Motor CNC Kit 13.0Nm(1841oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver

1 Axis Stepper Motor CNC Kit 13.0Nm(1841oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
NO.:1-OK2D872-34HS59
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$119.00
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $113.05 5%
5 $110.67 7%
10 $107.10 10%
50 $103.53 13%
Add To Cart

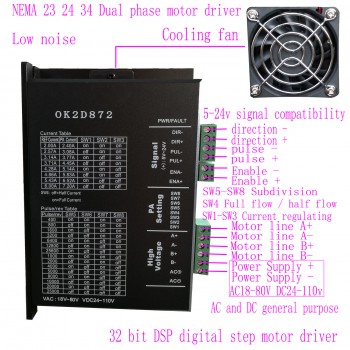

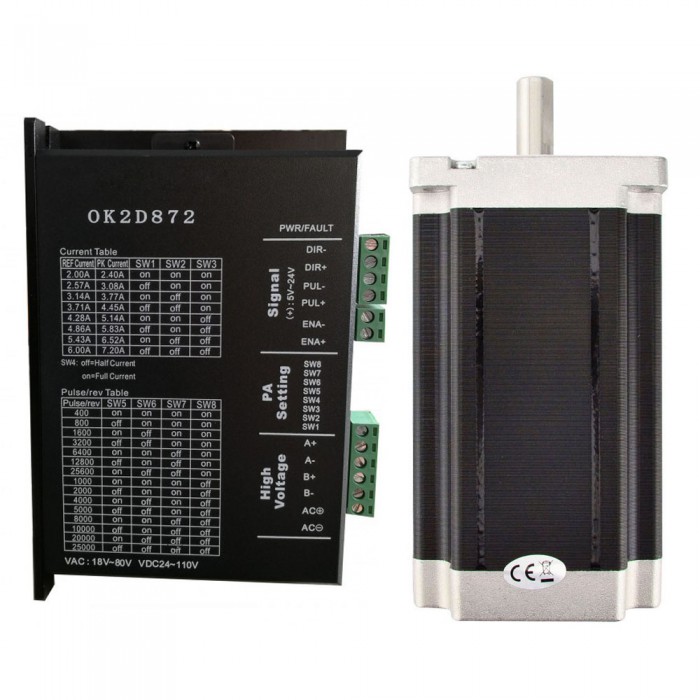

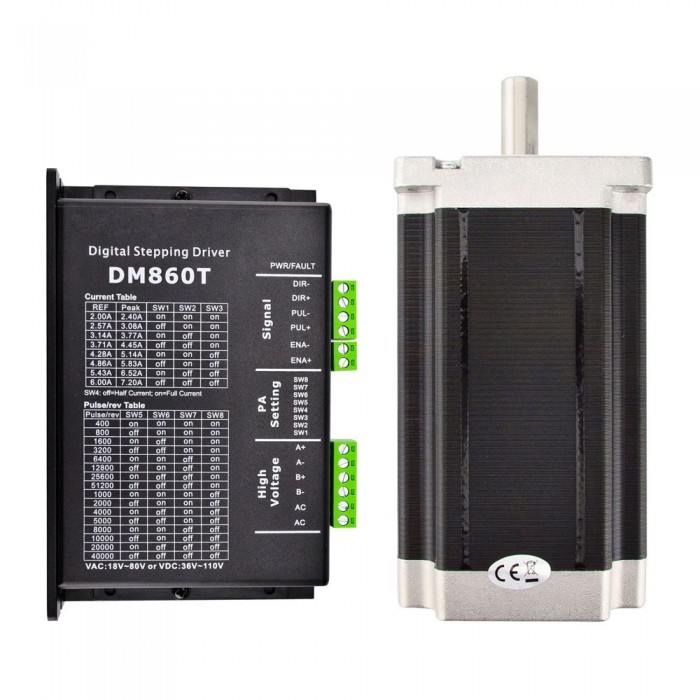

This CNC kit included:

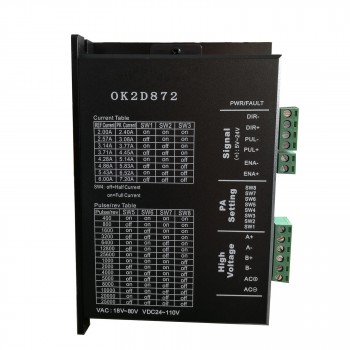

  • 1 x OK2D872 Two-Phrase Digital Stepper Driver for NEMA 23 NEMA 24 NEMA 34 Stepper Motor

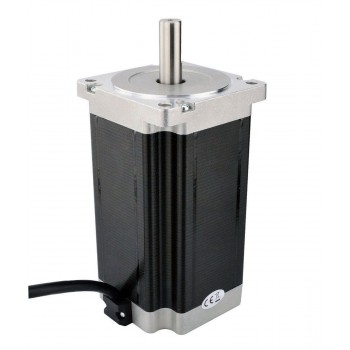

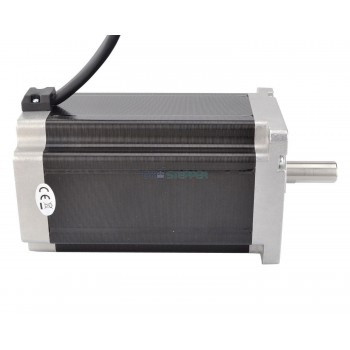

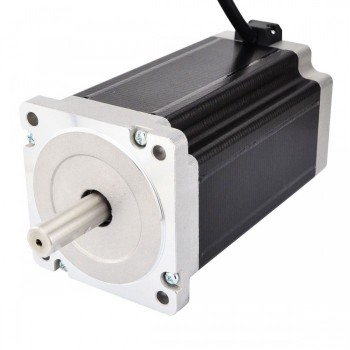

  • 1 x Nema 34 CNC High Torque Stepper Motor 13Nm (1841oz.in) 5A 86x86x150mm;

Motor Specification

  • Manufacturer Part Number: 34HS59-5004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 13Nm(1841oz.in)
  • Rated Current/phase: 5A
  • Voltage: 5V
  • Phase Resistance: 1ohms
  • Inductance: 11mH ± 20%(1KHz)
  • Frame Size: 86 x 86mm
  • Body Length: 150mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • D-cut Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Driver Specification

Features:
Built in high subdivision, low vibration, low heat generation, and stable low-speed operation;
Current vector control, high current efficiency;
Built in acceleration and deceleration control to improve smoothness of start stop;
Single and double pulse control modes can be selected;
Memory of motor operating position;
Input signal differential optocoupler isolation, compatible with 5V~24V;
Overcurrent protection, overvoltage protection;
Automatic detection, flexible selection of pulse edge counting method;
Green light indicates operation, while red light indicates protection or offline;
The SW1-3 current dial settings are shown in the table below.


Electrical Specifications:
Output Peak Current: 1.4~5.6A
Input Voltage: 24-110VDC, 18-80VAC
Pulse Input Frequency: 0~200kHz
Protection:
a.Peak overcurrent action value 6A ±10%
b.Overvoltage voltage action value 50VC
Defaul communication rate:57.6Kbps
Overall dimensions:19.5x60x96mm
Weight: Approx.280g;


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Humidity: 40%RH-90%RH
Operating Temperature: 0℃ - 70℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ - 80℃;

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Motor CNC Kit 8.5Ncm(1204oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
Next: 1 Axis Stepper Motor Kit 13.0Nm(1841oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 150
Holding Torque (Ncm) 1300
Holding Torque (oz.in) 1841
Inductance(mH) 11
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 1
Rated Current (A) 5
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Stepper Driver Specification
Max. Pulse Input(kHZ) 200
Pulse Width(μs) 2.5
Driving Voltage(V) 24-110VDC, 18-80VAC
Output Current(A) 1.4 - 5.6
Microstep(Steps/rev.) 400 - 25600
Physical Specification
Weight(g) 6300
