1 Axis Closed Loop Stepper Motor CNC Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Motor & Driver

1 Axis Closed Loop Stepper Motor CNC Kit 3.0Nm(425oz.in) 1.8 Deg Nema 23 Motor & Driver
NO.:1-OK2D42BH-23HS45
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$113.87
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $108.18 5%
5 $105.90 7%
10 $102.48 10%
50 $99.07 13%
Add To Cart

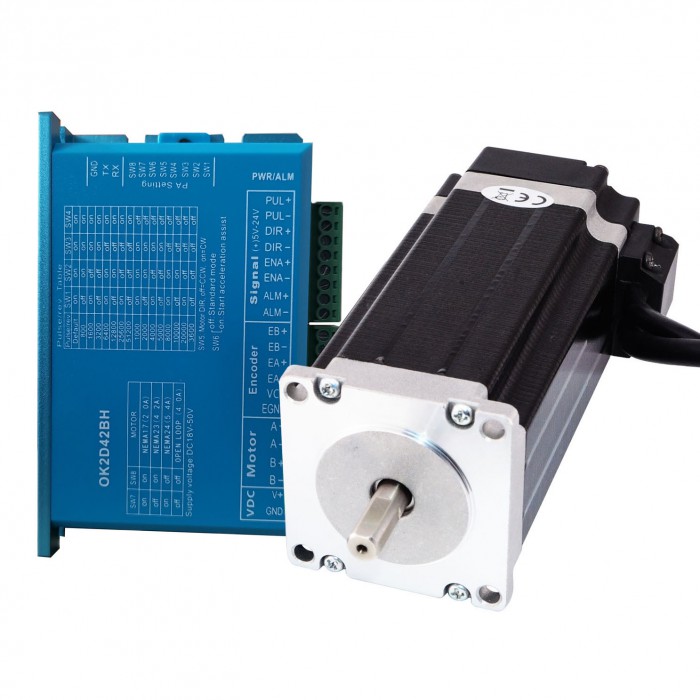

This CNC kit included:

  • 1 x Closed Loop Stepper Driver 0~5.6A 18~70VDC for Nema 17, Nema 23, Nema 24 Stepper Motor
  • 1 x 3.0Nm[425oz.in] Nema 23 Closed Loop Stepper Motor w/ Encoder 1000CPR

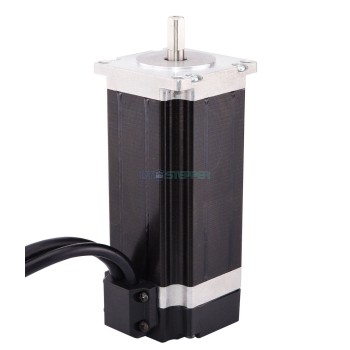

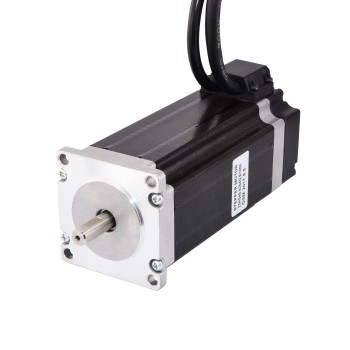

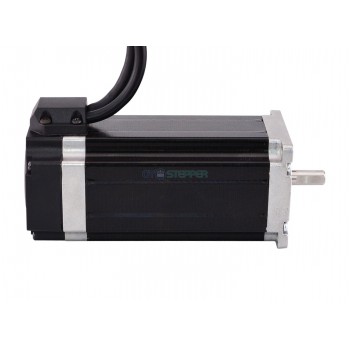

Motor Specification

  • Manufacturer Part Number: 23HS45-4204D-E1000
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Voltage: 3.78V
  • Phase Resistance: 0.9ohms
  • Inductance: 3.8mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

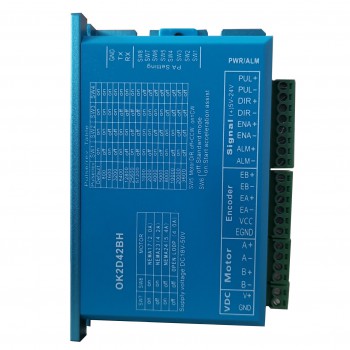

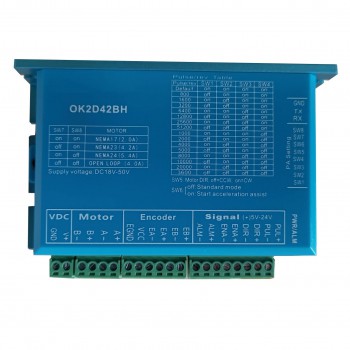

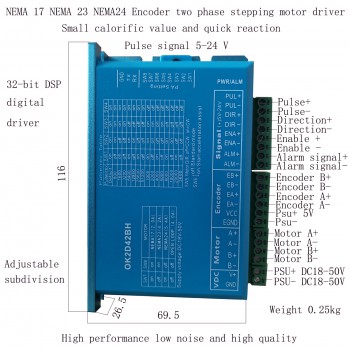

Driver Specification:


Model:OK2D42BH
Output Peak Current: 0~5.6A
Input Voltage: +18~70VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Microstep(Steps/rev.):400~51200ppr
Encoder current:50mA
Isolation Resistance: 500MΩ
Weight:580g;
Adopting new 32-bit motor control dedicated dual-core DSP chip;
Adopting advanced vector current and speed and position closed-loop control algorithms;
The static current and dynamic current ratio can be automatically set;
The motor comes with a 1000-line high-precision encoder;
Optocoupler isolated differential signal input;
The impulse response frequency can reach up to 300KHZ;
Subdivided into 16 settings (200~51200) to meet the requirements of most customers;
It has several protection functions such as overcurrent, overvoltage, overspeed, overheating, and excessive tracking error.
