1 Axis Stepper Motor Kit 4.5Nm(637oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver

1 Axis Stepper Motor Kit 4.5Nm(637oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
NO.:1-MA860H-34HS31
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$94.63
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $89.90 5%
10 $88.01 7%
50 $85.17 10%
100 $82.33 13%
Add To Cart

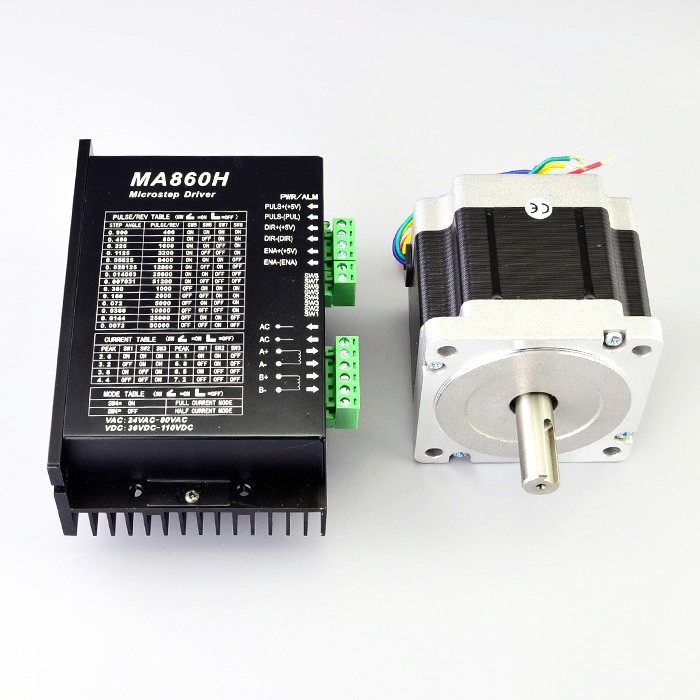

This CNC kit included:

1 x Stepper Motor Driver 2.4-7.2A Max 80VAC or 110VDC MA860H

1 x Nema 34 CNC Stepper Motor 4.5Nm (637oz.in) 5.5A 86x86x80mm Key Way Shaft

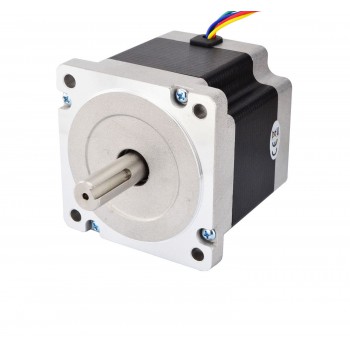

Motor Specification

Manufacturer Part Number: 34HS31-5504S

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 4.5Nm(637oz.in)

Rated Current/phase: 5.5A

Voltage: 2.2V

Phase Resistance: 0.4ohms

Inductance: 3.5mH ± 20%(1KHz)

Frame Size: 86 x 86mm

Body Length: 80mm

Shaft Diameter: Φ14mm

Shaft Length: 35mm

Key-way Length: 25mm

Number of Leads: 4

Lead Length: 500mm

Weight: 1.2kg



Connection

A+
A-
B+
B-
Black
Green
Red
Blue

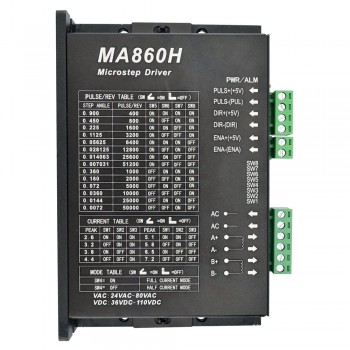

Driver Specification

Supply voltage up to 80VAC or +110VDC

Output current up to 7.2A

Self-adjustment technology

Pure-sinusoidal current control technology

Pulse input frequency up to 300 KHz

TTL compatible and optically isolated input

Automatic idle-current reduction

16 selectable resolutions in decimal and binary, up to 51,200 steps/rev

Suitable for 2-phase and 4-phase motors

Short-voltage, over-voltage, over-current and short-cicuit protection



Resources

Motor Datasheet: 34HS31-5504S.pdf

Driver Manual: MA860H.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Stepper Motor Kit 13.0Nm(1841oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
Next: 1 Axis Stepper Motor Kit 8.5Ncm(1204oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 80
Holding Torque (Ncm) 450
Holding Torque (oz.in) 637.3
Inductance(mH) 3.5
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.4
Rated Current (A) 5.5
Shaft Diameter(mm) 14
Shaft Length(mm) 35
Stepper Driver Specification
Driving Voltage(V) 36 - 110VDC / 24 - 80VAC
Output Current(A) 2.6 - 7.2
Microstep(Steps/rev.) 400 - 51200
Max. Pulse Input(kHZ) 300
Pulse Width(μs) 1.5
Physical Specification
Weight(g) 3100
