Nema 23 Economy External Linear Stepper Motor Actuator 1.8 Deg 1.3N.m 3A Lead Lead Revolution Screw 355mm 4 Wire

Nema 23 Economy External Linear Stepper Motor Actuator 1.8 Deg 1.3N.m 3A Lead Lead Revolution Screw 355mm 4 Wire
NO.:23LS22-3004E-355R
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$60.98
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $57.93 5%
10 $56.71 7%
50 $54.88 10%
100 $53.05 13%
Add To Cart

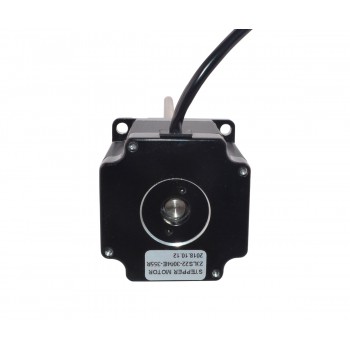

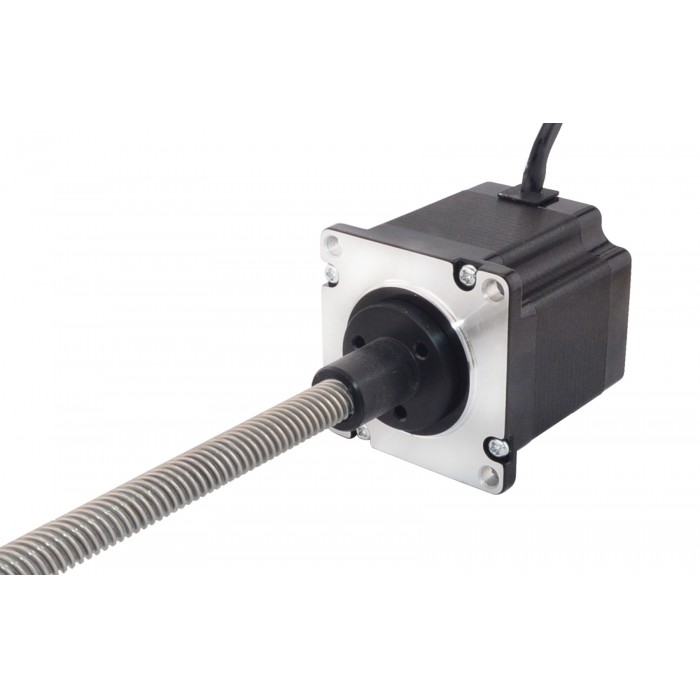

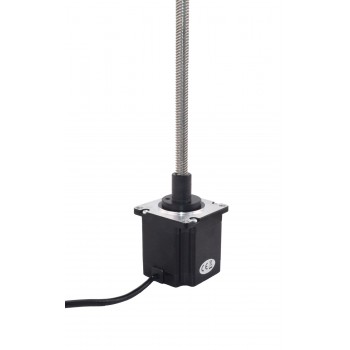

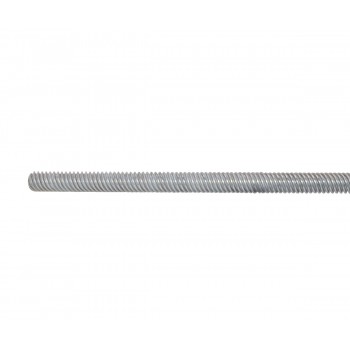

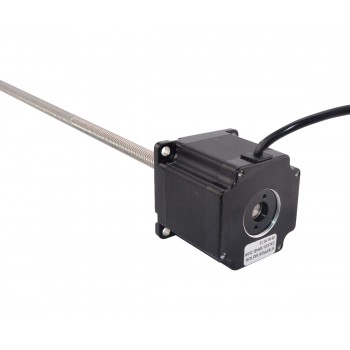

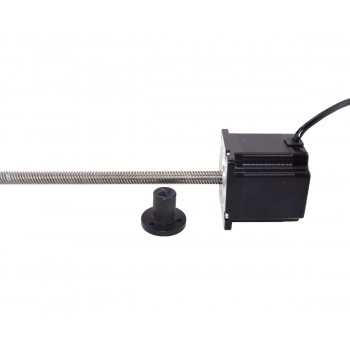

This model is economy linear stepper which named Nema 23 external linear actuator, the motor part is 56mm 1.8 degree 3A Nema 23 stepper motor. It was integrated with 355mm Tr10x20 threaded rod, and a POM screw nut move along the threaded rod.

Electrical Specification

  • Manufacturer Part Number: 23LS22-3004E-355R
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.3N.m(184.132oz.in)
  • Rated Current/phase: 3.00A
  • Phase Resistance: 1.10ohms
  • Inductance: 3.20mH ± 20%(1KHz)



Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Lead Screw Length: 355mm(13.976")
  • Lead Screw Diameter: Φ10mm(0.394")
  • Lead/Step: 0.1mm(0.003937")
  • Lead/Revolution: 20mm(0.787")
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight : 650g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 External Linear Stepper Motor 1.8 Deg 2.8V 44Ncm(62.3oz.in) 48mm Stack 1.68A Lead 2mm/0.07874" Lead Screw 330mm
Next: PM Captive Economy Linear Stepper Motor 15 Deg 0.23A Lead 1mm/0.039" 2 Phase Travel 22mm Φ25x15mm
Electrical Specification
Holding Torque (Ncm) 130
Holding Torque (oz.in) 184
Inductance(mH) 3.2
Phase Resistance(ohm) 1.1
Rated Current (A) 3
Step Angle(°) 1.8
Motor Type External
Motor Specification
Bipolar/Unipolar Bipolar
Lead Length(mm) 500
Physical Specification
Body Length(mm) 56
Lead Screw Diameter(mm) 10
Lead Screw Length(mm) 355
No. of Lead 4
Lead Travel/Revolution(mm) 20
Lead Travel/Step(mm) 0.1
Frame Size(mm) Nema 23 (57 x 57)
