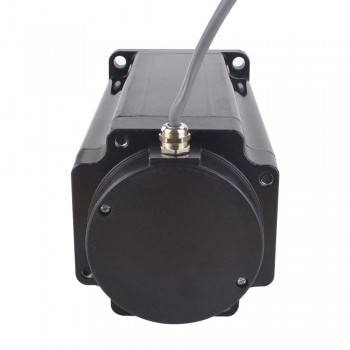

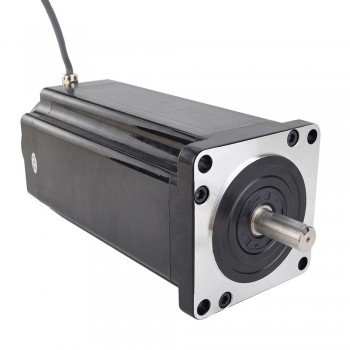

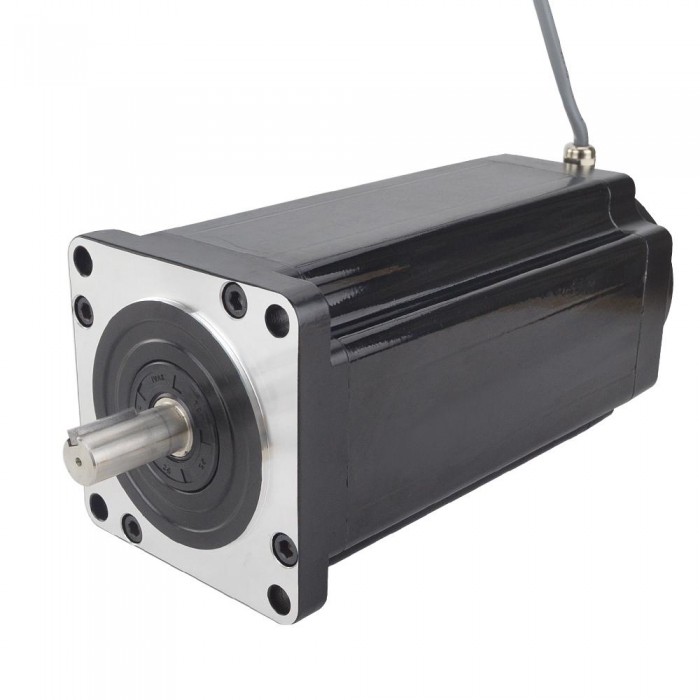

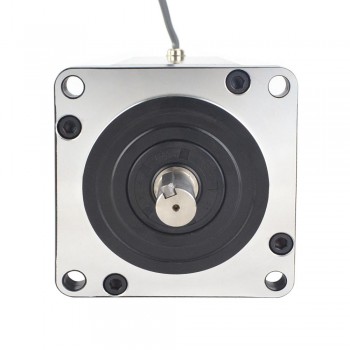

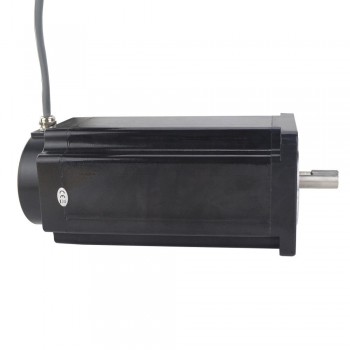

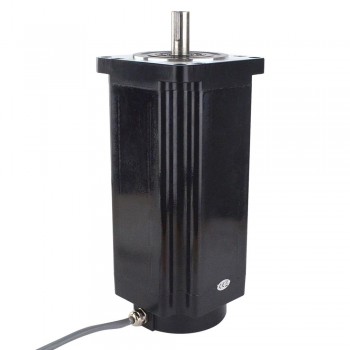

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 36 Nm(5099.04oz.in) 5.0A 130x130x220mm High Torque

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 36 Nm(5099.04oz.in) 5.0A 130x130x220mm High Torque
NO.:52HT87-5003S
Post a review
Special Offer in September 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till September 28th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$257.09
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $244.24 5%
5 $239.09 7%
10 $231.38 10%
50 $223.67 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 52HT87-5003S
  • Number of Phase: 3
  • Step Angle: 1.2 deg
  • Holding Torque: 36 Nm(5099.04oz.in)
  • Rated Current/phase: 5 A
  • Phase Resistance: 2.2 ohms± 10%
  • Inductance: 26 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 130 x 130 mm
  • Body Length: 220 mm
  • Shaft Diameter: Φ19 mm
  • Shaft Length: 48 mm
  • keyway Shaft Length: 30 mm
  • Number of Leads: 3
  • Lead Length: 300 mm
  • Weight: 18.2 kg

Connection

U
V
W
RED
YEL
GRN



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Round Pancake Nema 18 Stepper Motor Bipolar 1.8 Degree 9Ncm (12.748oz.in) 1A Φ46x16mm 4 Wires
Next: Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 50 Nm(7082oz.in) 5.0A 130x130x260mm High Torque 3 Wires
Electrical Specification
Holding Torque (Ncm) 3600
Holding Torque (oz.in) 5099.04
Inductance(mH) 26
Phase Resistance(ohm) 2.2
Rated Current (A) 5
Step Angle(°) 1.2
No. of Phase 3
Physical Specification
Body Length(mm) 220
Frame Size(mm) 130 x 130
Lead Length(mm) 300
No. of Lead 3
Shaft Diameter(mm) 19
Shaft Length(mm) 48
Weight(g) 18200
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
