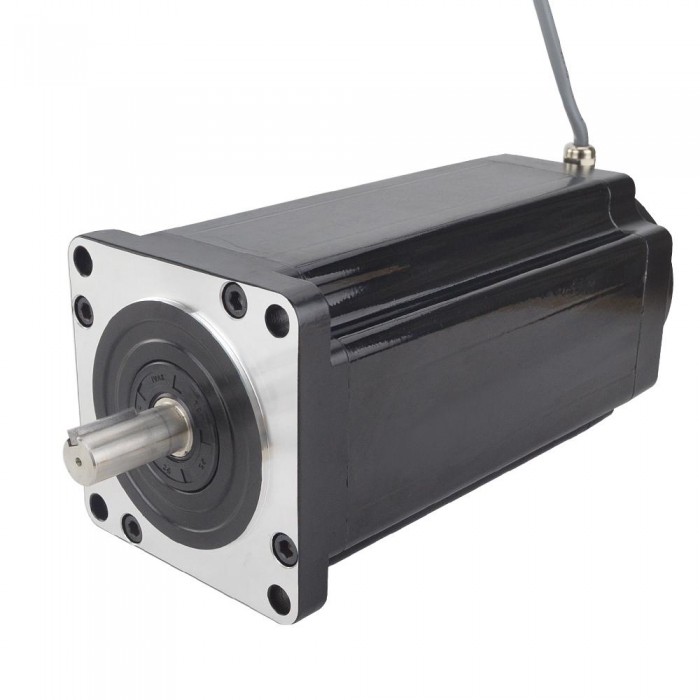

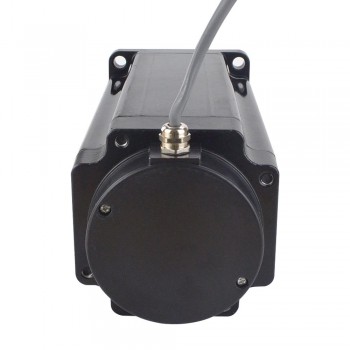

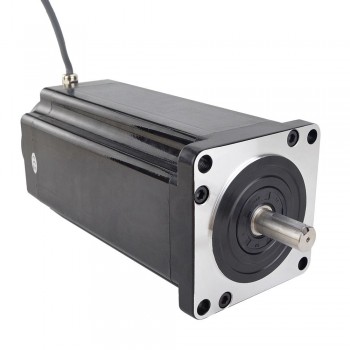

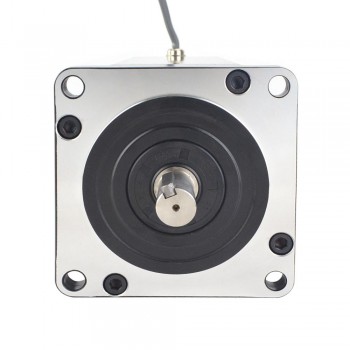

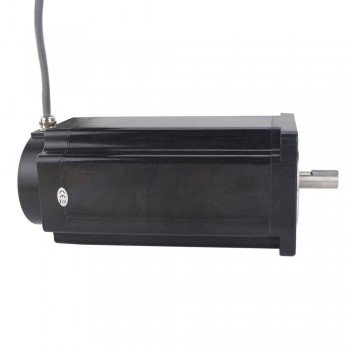

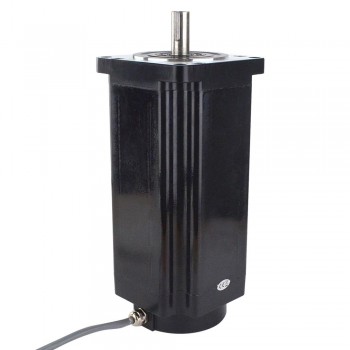

Nema 52 3-Phase Stepper Motor Bipolar 1.2 Deg 50 Nm(7082oz.in) 5.0A 130x130x260mm High Torque 3 Wires
Electrical Specification
Manufacturer Part Number: 52HT102-5003S
Number of Phase: 3
Step Angle: 1.2 deg
Holding Torque: 50 Nm(7082oz.in)
Rated Current/phase: 5 A
Phase Resistance: 2.75 ohms± 10%
Inductance: 32 mH ± 20%(1KHz)
Physical Specification
Frame Size: 130 x 130 mm
Body Length: 260 mm
Shaft Diameter: Φ19 mm
Shaft Length: 48 mm
keyway Shaft Length: 30 mm
Number of Leads: 3
Lead Length: 300 mm
Weight: 22 kg
Connection
|
U
|
V
|
W
|
|
RED
|
YEL
|
GRN
|
Resources
Full Datasheet: 52HT102-5003S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 130x130 |
| Body Length(mm) | 260 |
| Lead Length(mm) | 300 |
| No. of Lead | 3 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 48 |
| Weight(g) | 22 |
| Electrical Specification | |
| Holding Torque (Ncm) | 5000 |
| Holding Torque (oz.in) | 7082 |
| Inductance(mH) | 32 |
| Phase Resistance(ohm) | 2.75 |
| Rated Current (A) | 5 |
| Step Angle(°) | 1.2 |
| No. of Phase | 3 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
