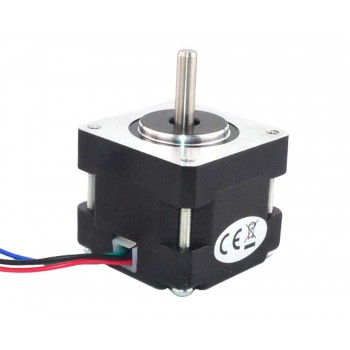

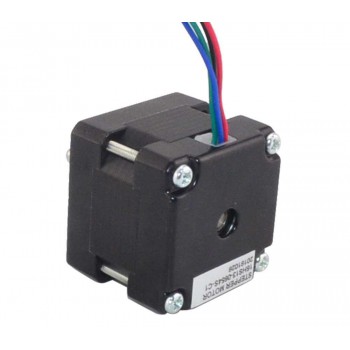

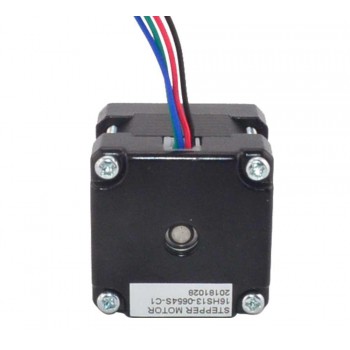

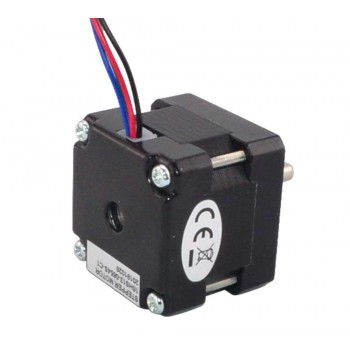

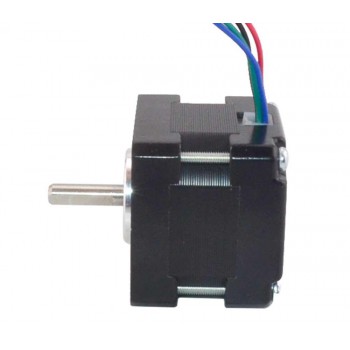

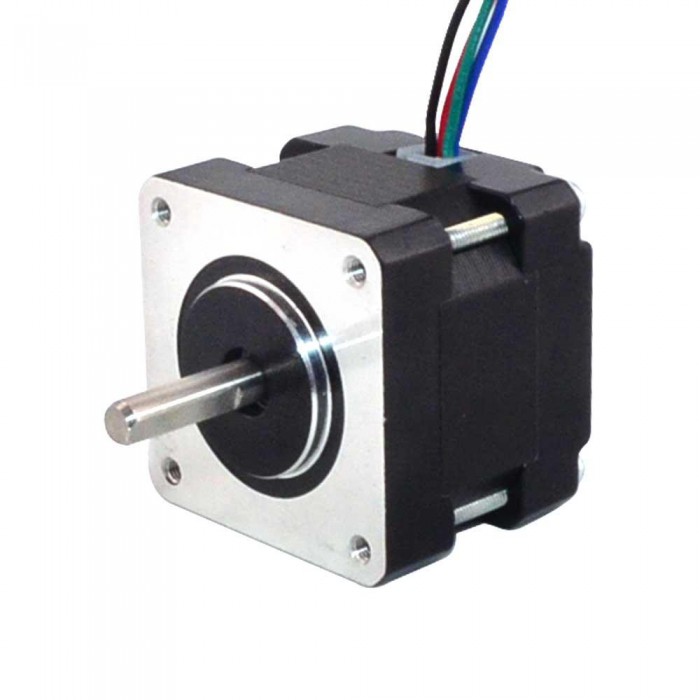

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires
NO.:16HS13-0654S-C1
Post a review
Special Offer in October 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till October 15th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$10.30
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $9.79 5%
30 $9.58 7%
50 $9.27 10%
100 $8.96 13%
Add To Cart

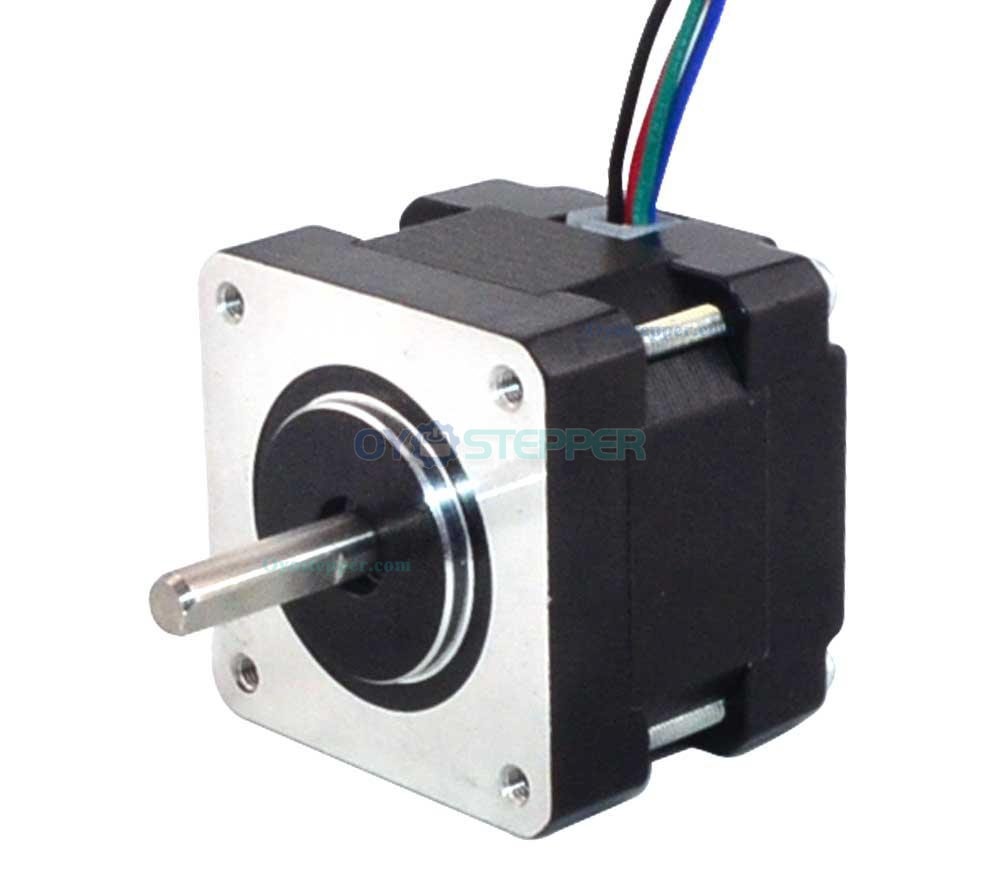

Nema 16 Bipolar Stepper Motor 1.8deg 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires



This bipolar Nema 16 stepper motor with step angle 1.8deg and size 39x39x34mm. It has 4 wires, each phase draws 0.65A, with holding torque 18Ncm (25.5oz.in).



Electrical Specification

Manufacturer Part Number: 16HS13-0654S-C1

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 18Ncm(25.5oz.in)

Rated Current/phase: 0.65A

Phase Resistance: 7ohms

Inductance: 9.3mH ± 20%(1KHz)





Physical Specification

Frame Size: 39 x 39mm

Body Length: 34mm

Shaft Diameter: Φ5mm

Shaft Length: 20mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 300mm

Weight: 190g





Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Full Datasheet: 16HS13-0654S-C1.pdf





Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires
Next: P Series Nema 23 1.2 Deg 3-Phase Stepper Motor 5.5A 1Nm(141.64oz.in) 57 x 57 mm D-Cut Shaft 3 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 18
Holding Torque (oz.in) 25.5
Inductance(mH) 9.3
Phase Resistance(ohm) 7
Rated Current (A) 0.65
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) 39x39
Lead Length(mm) 300
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 180
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
