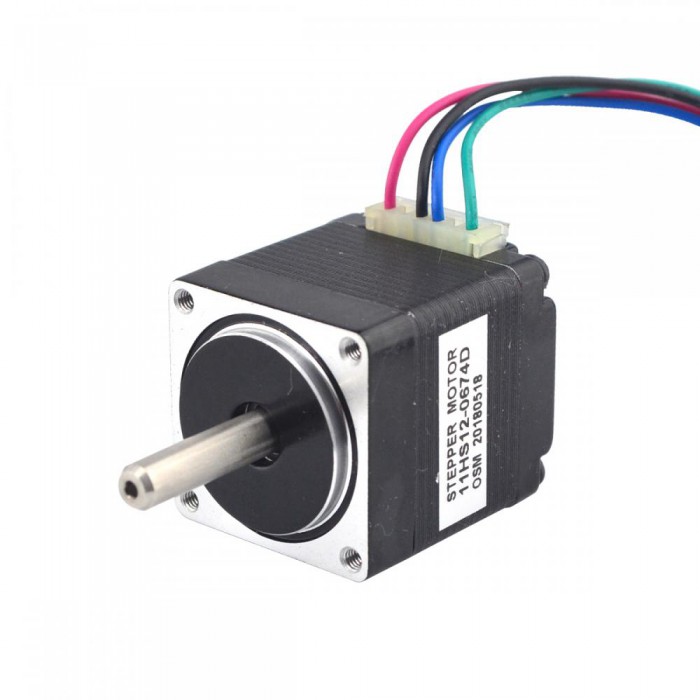

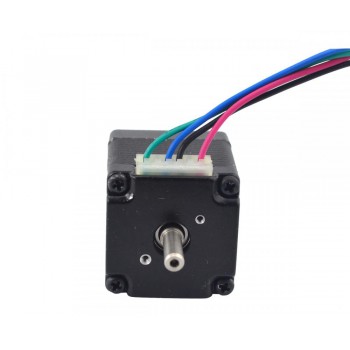

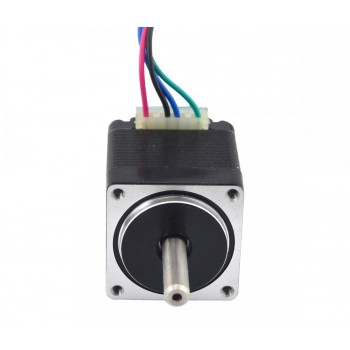

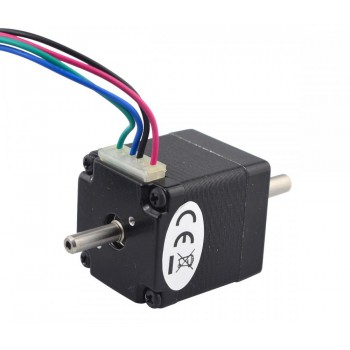

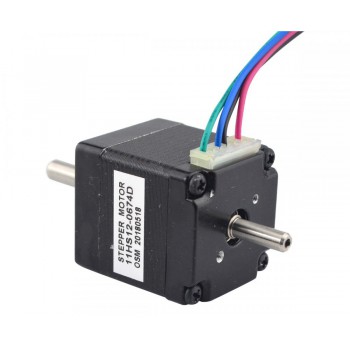

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires
NO.:11HS12-0674D
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$15.88
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $15.09 5%
30 $14.77 7%
50 $14.29 10%
100 $13.82 13%
Add To Cart

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8deg 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires



This model is dual shaft Nema 11 Bipolar stepper motor, it with step angle 1.8deg and size 28x28x31.5mm. It has 4 wires, each phase draws 0.67A at 3.75V, with holding torque 7Ncm (9.91oz.in).



Electrical Specification

  • Manufacturer Part Number: 11HS12-0674D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 7Ncm(9.91oz.in)
  • Rated Current/phase: 0.67A
  • Voltage: 3.75V
  • Phase Resistance: 5.6ohms
  • Inductance: 4mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 31.5mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • Rear Shaft Diameter:4mm
  • Rear Shaft Length:12mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 110g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

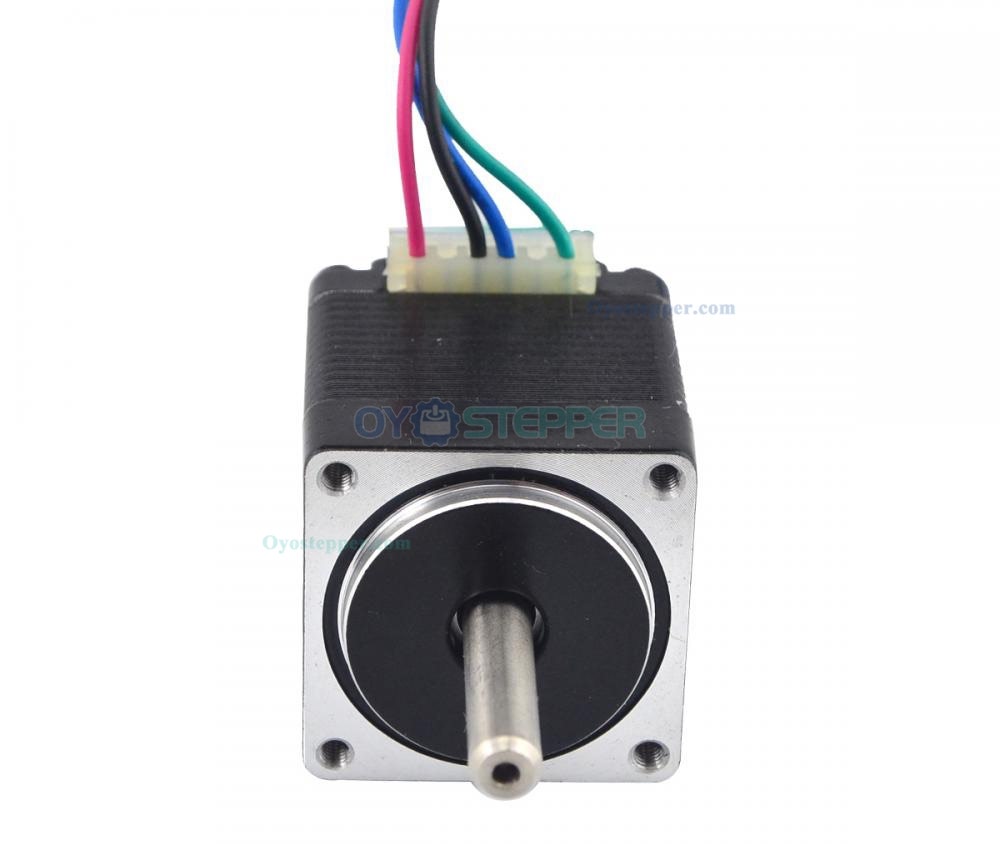

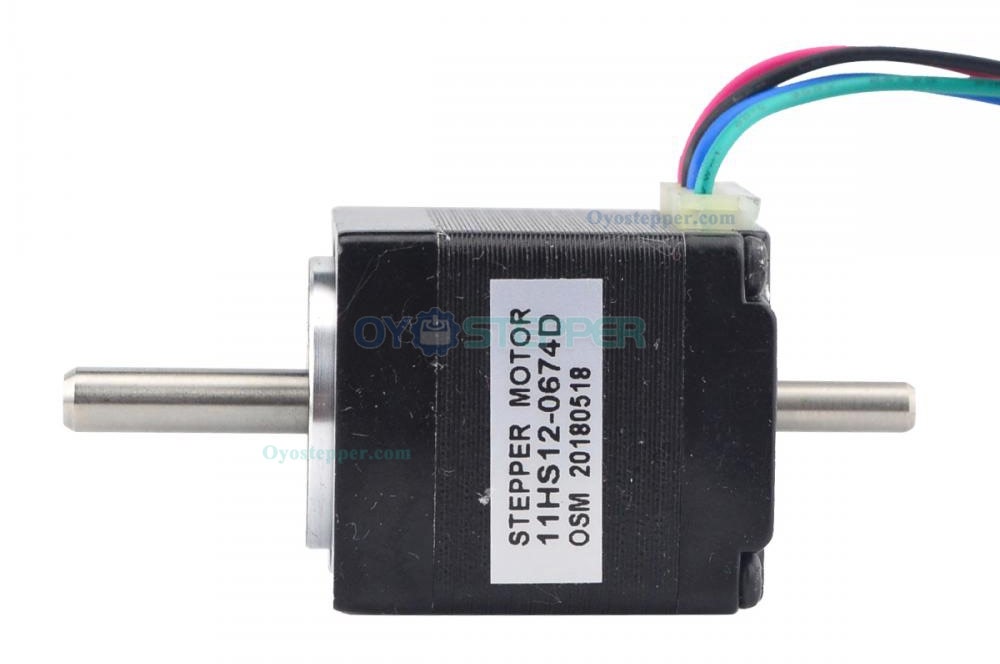

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 7Ncm (9.91oz.in) 0.67A 3.75V 28x28x31.5mm 4 Wires

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 12Ncm (17.04oz.in) 0.67A 6.2V 28x28x51mm 4 Wires
Next: Nema 16 Bipolar Stepper Motor 1.8 Degree 18Ncm (25.5oz.in) 0.65A 39x39x34mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 7
Holding Torque (oz.in) 9.91
Inductance(mH) 4
Phase Resistance(ohm) 5.6
Rated Current (A) 0.67
Physical Specification
Body Length(mm) 31.5
Frame Size(mm) 28x28
Lead Length(mm) 300
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Shaft Type O
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 110
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
