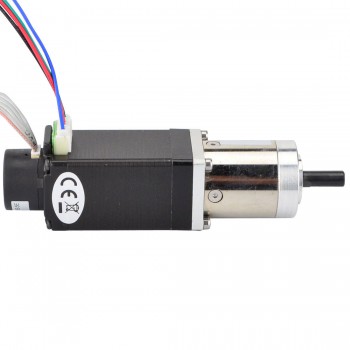

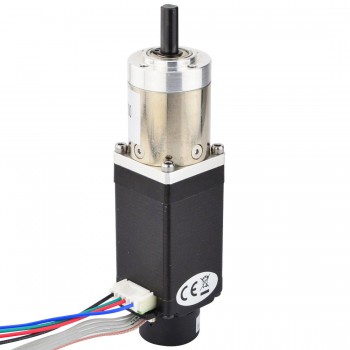

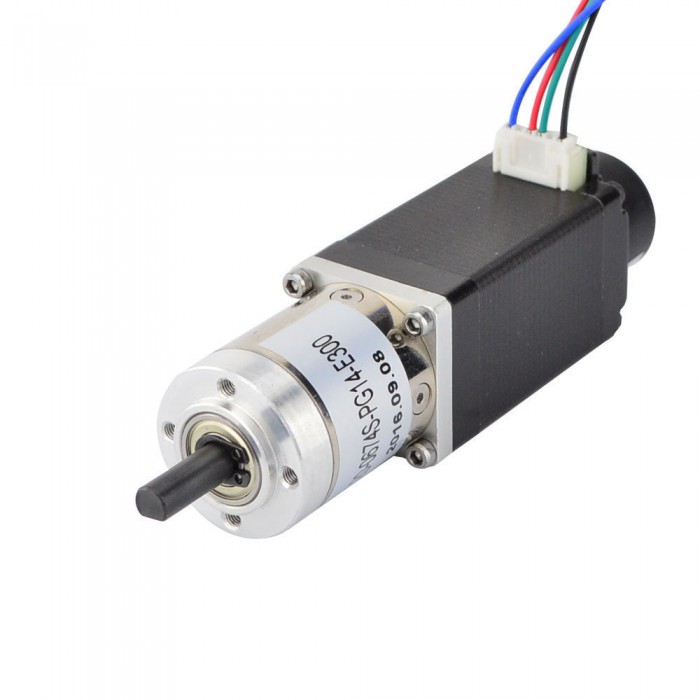

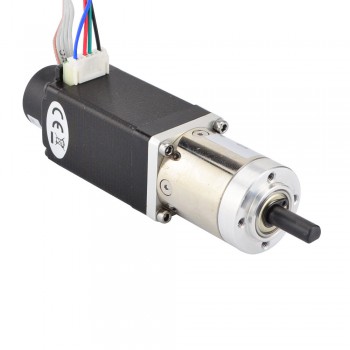

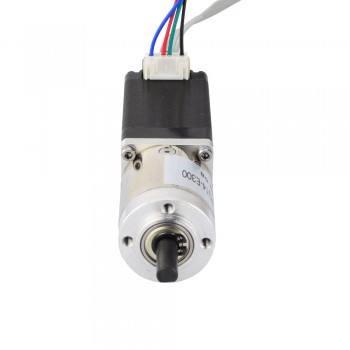

Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 14:1 Encoder 300CPR

NO.:11HS20-0674S-PG14-E300
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$100.94
Buy It Now:$77.65
Quantity:- +

Buy More, Save more!
3 - 9 10 - 29 30 - 99 100 - Max
$75.89 $74.12 $72.36 $70.60
Add To Cart

Motor Specification

  • Manufacturer Part Number: 11HS20-0674S-PG14-E300
  • Motor Type: Bipolar Stepper
  • Frame Size: 28 x 28mm
  • Motor Length: 51mm
  • Step Angle without Gearbox: 1.8 deg
  • Holding Torque without Gearbox: 0.14Nm(19.8oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 12ohms
  • Voltage: 8.04V
  • Inductance: 6.5mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 500mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 35mm
  • Gear Ratio: 13.73
  • Efficiency: 81%
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-Cut length: 12mm
  • Backlash at No-load: <=1deg
  • Max.Permissible Torque: 3Nm(424.8.oz.in)
  • Moment Permissible Torque: 5Nm(708.1oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Encoder Specification

  • Driving Voltage : 5V
  • Output current : 50mA
  • Resolution : 300ppr
  • Output Signal : 2 Channels
  • Bore Diameter : Φ4mm
  • Output Frequency : ≤1MHz
  • Running Speed : ≤5000rpm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Closed Loop Stepper Motor 0.1Nm/14.16oz.in Encoder 1000CPR
Next: Nema 11 Closed Loop Stepper Motor 0.07Nm/9.91oz.in Encoder 300CPR
Motor Specification
Bipolar/Unipolar Bipolar
Body Length(mm) 51
Holding Torque w/o Gearbox(Ncm) 14
Holding Torque w/o Gearbox(oz.in) 19.8
Inductance(mH) 6.5
Lead Length(mm) 500
Motor Nema Size Nema 11
No. of Lead 4
Phase Resistance(ohm) 12
Rated Current (A) 0.67
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Step Angle(°) 1.8
Encoder Specification
IP Protection IP20
Output Current(mA) 50
Output Frequency ≤0.03MHz
Output Signal Channels 2 Channels
Rated Voltage(V) 5V
Resolution(CPR) 300
Running Speed(rpm) ≤5000rpm
Physical Specification
Weight(g) 400
