Nema 11 Closed Loop Stepper Motor Bipolar 1.8 Deg 0.1Nm 0.67A 2 Phase with Encoder 1000CPR
- Manuals and Documentation: Full Datasheet:

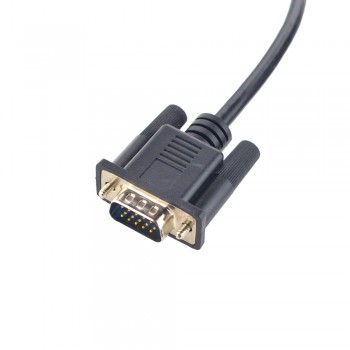

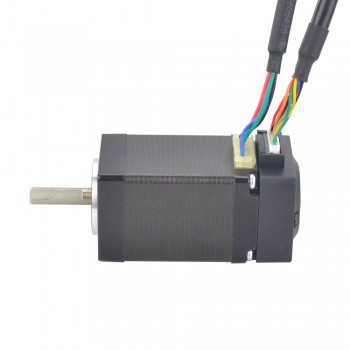

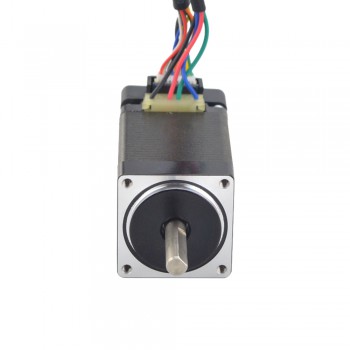

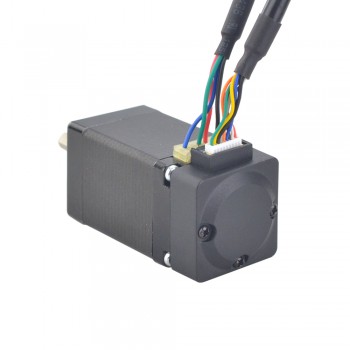

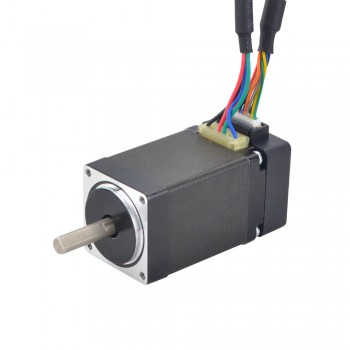

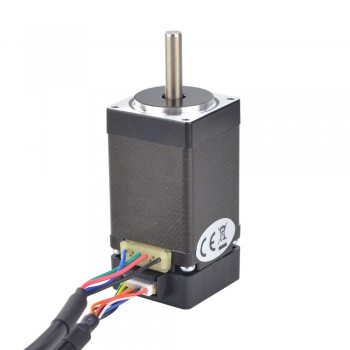

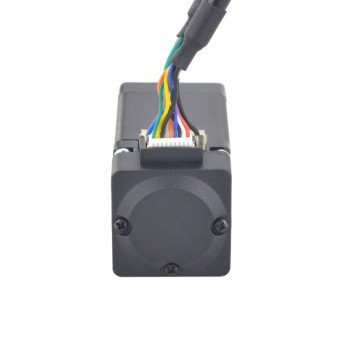

This Nema 11 bipolar stepper has a 28mm frame, 44.5mm body, and a 5mm diameter shaft with a 15mm D-cut. It draws 0.67A per phase, delivers 0.1Nm holding torque, and includes a 1000cpr, 5V, IP20-rated encoder with dual-channel output.
Electrical Specification
Manufacturer Part Number: 11HS18-0674D-E1000
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 0.1 Nm(14.16oz.in)
Rated Current/phase: 0.67 A
Phase Resistance: 6.8 ohms± 10%
Inductance: 6.0 mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28 mm
Body Length: 44.5 mm
Shaft Diameter: Φ5 mm
Shaft Length: 20 mm
D-cut Shaft Length: 15 mm
Lead Length: 300 mm
Weight: 0.14 kg
Encoder Specification
Driving Voltage: 5V
Output current: 20mA
Resolution: 1000cpr
Output Signal: 2 Channels
Bore Diameter: Φ5mm
Output Frequency: ≤60MHz
Running Speed: ≤3600rpm
IP Protection: IP20
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 10 |
| Holding Torque (oz.in) | 14.16 |
| Inductance(mH) | 6 |
| Phase Resistance(ohm) | 6.8 |
| Rated Current (A) | 0.67 |
| Step Angle(°) | 1.8 |
| Encoder Specification | |
| IP Protection | IP20 |
| Output Current(mA) | 20 |
| Output Frequency | ≤60MHz |
| Rated Voltage(V) | 5 |
| Running Speed(rpm) | ≤3600rpm |
| Output Signal Channels | 3 Channels |
| Physical Specification | |
| Lead Length(mm) | 300 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
