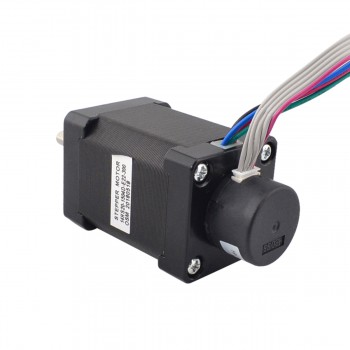

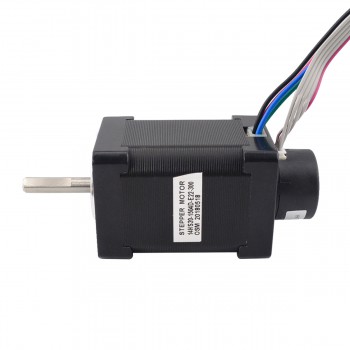

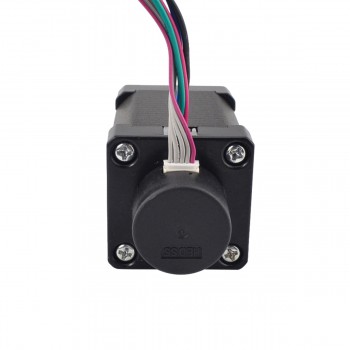

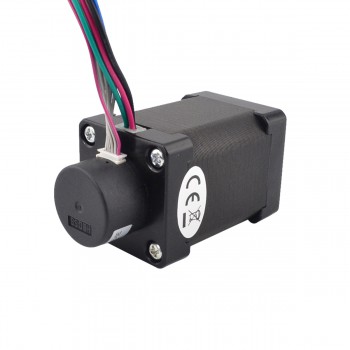

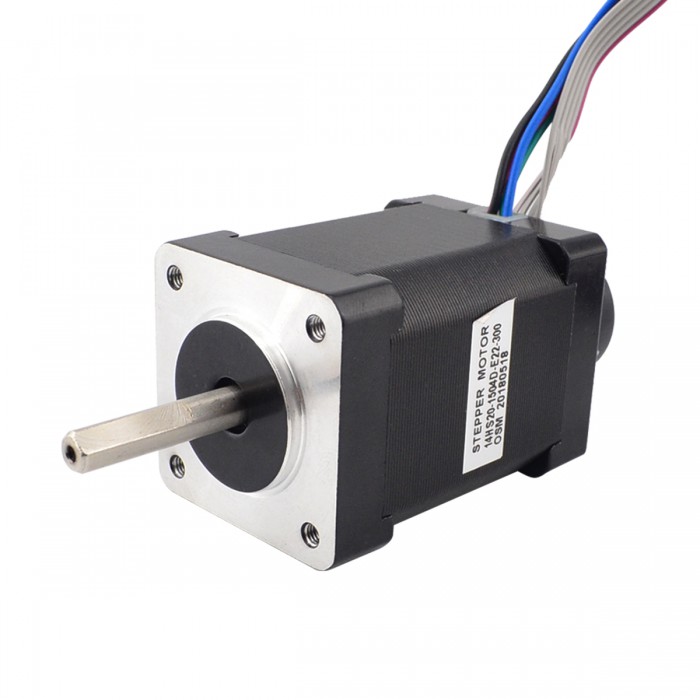

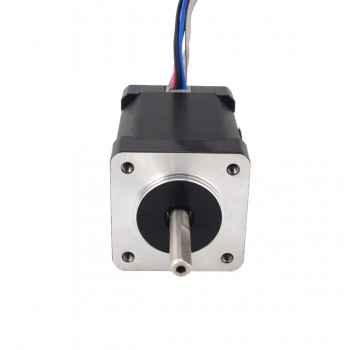

Nema 14 Closed Loop Stepper Motor Bipolar 1.8 Deg 40Ncm/56.7oz.in 1.50A 4.20V with Encoder 300CPR

Nema 14 Closed Loop Stepper Motor Bipolar 1.8 Deg 40Ncm/56.7oz.in 1.50A 4.20V with Encoder 300CPR
NO.:14HS20-1504D-E22-300
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$54.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $51.67 5%
10 $50.58 7%
50 $48.95 10%
100 $47.32 13%
Add To Cart

Motor Specification

  • Manufacturer Part Number: 14HS20-1504D-E22-300
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.40Nm(56.66oz.in)
  • Rated Current/phase: 1.50A
  • Voltage: 4.20V
  • Phase Resistance: 2.80ohms
  • Inductance: 3.80mH ± 20%(1KHz)
  • Frame Size: 35 x 35mm
  • Motor Length: 52mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm

Encoder Specification

  • Driving Voltage : 5VDC
  • Output current : ≤20mA
  • Resolution : 300cpr
  • Output Signal : 2 Channels
  • Shaft Diameter : Φ5mm
  • Output Frequency : ≤30KHz
  • Output Low Voltage: ≤0.3VDC
  • Output High Voltage: ≥3.4VDC

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Closed Loop Stepper Motor Bipolar 1.8 Deg 18Ncm/25.5oz.in 0.80A 5.40V with Encoder 300CPR
Next: Nema 17 Closed Loop Stepper Motor Bipolar 0.9 Deg 44Ncm/62oz.in 1.68A 2.80V with Encoder 1000CPR
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 40
Holding Torque (oz.in) 56.656
Inductance(mH) 3.8
Lead Length(mm) 500
Motor Nema Size Nema 14
Phase Resistance(ohm) 2.8
Rated Current (A) 1.5
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Encoder Specification
Output Current(mA) 20
Output Frequency ≤30KHz
Rated Voltage(V) 5
Resolution(CPR) 300
Output High Voltage(VDC) ≥3.4
Output Low Voltage(VDC) ≤0.3
Output Signal Channels 2 Channels
