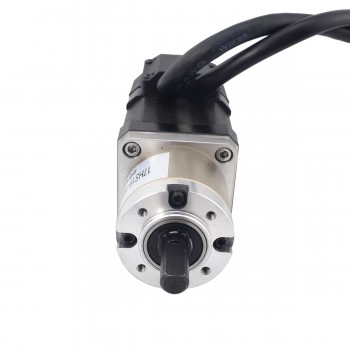

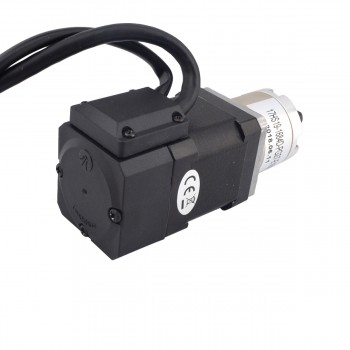

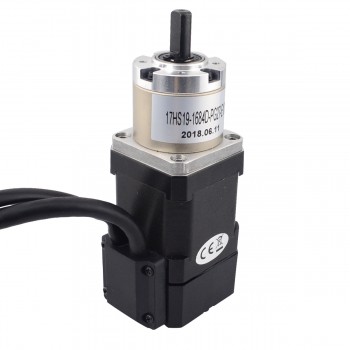

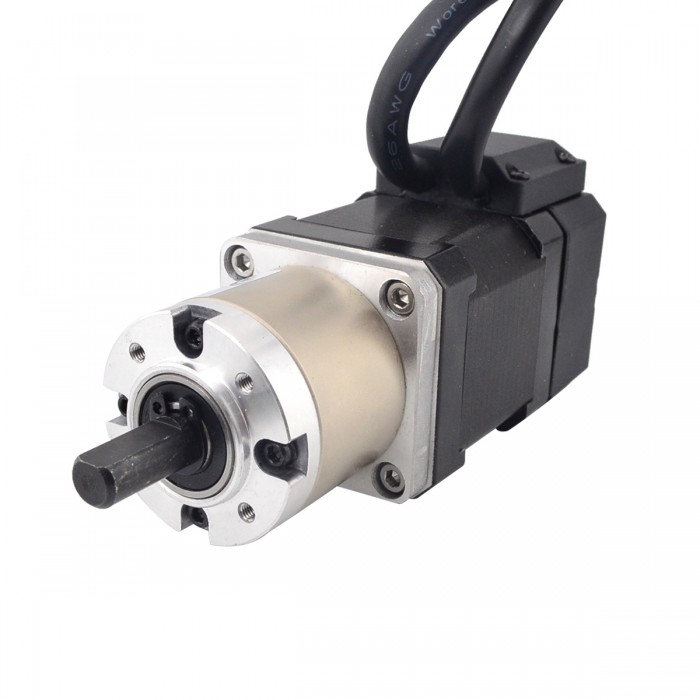

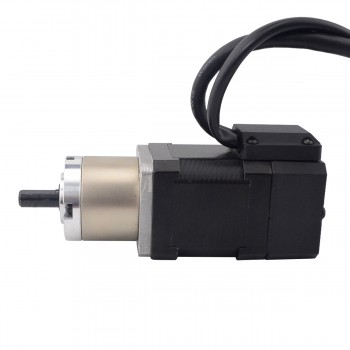

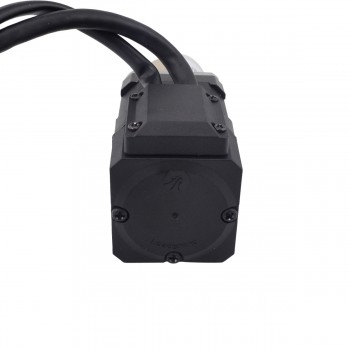

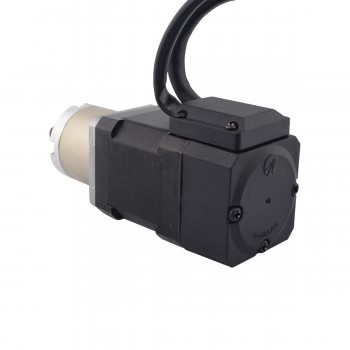

Nema 17 Closed-loop Geared Stepper Motor Bipolar L=48mm 1.8 Deg 0.52Nm 1.68A 2.8V with 27:1 Encoder 1000CPR
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!
Motor Specification
Manufacturer Part Number: 17HS19-1684D-PG27-E1000
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8 deg
Holding Torque without Gearbox: 0.52Nm(73.65oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.8ohms
Voltage: 2.80V
Inductance: 3.20mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 300mm
Gearbox Specifications
Gearbox Type: Planetary
Gearbox Length: 35mm
Gear Ratio: 26.85
Efficiency: 81%
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-Cut Length: 15mm
Backlash at No-load: <=1deg
Max.Permissible Torque: 3Nm(424.92oz.in)
Moment Permissible Torque: 5Nm(708.2oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N
Encoder Specification
Driving Voltage : 4.5V to 5.5V
Output current : 20mA
Resolution : 1000cpr
Output Signal : 2 Channels
Bore Diameter : Φ5mm
Output Frequency : ≤60MHz
Running Speed : ≤3600rpm
IP Protection: IP20
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Green
|
Black
|
Red
|
Blue
|
Resources
Motor Datasheet: 17HS19-1684D-PG27-E1000.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 52 |
| Holding Torque (oz.in) | 73.653 |
| Inductance(mH) | 3.2 |
| Lead Length(mm) | 300 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.8 |
| Rated Current (A) | 1.68 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| Step Angle(°) | 1.8 |
| Encoder Specification | |
| IP Protection | IP20 |
| Output Frequency | ≤60KHz |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 1000 |
| Running Speed(rpm) | ≤3600rpm |
| Output Signal Channels | 2 Channels |
