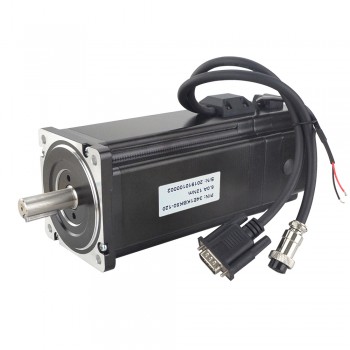

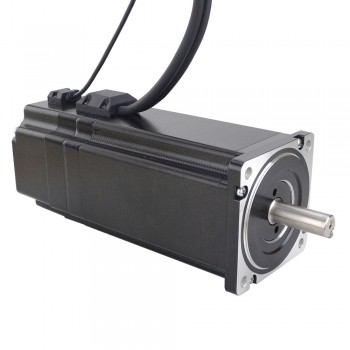

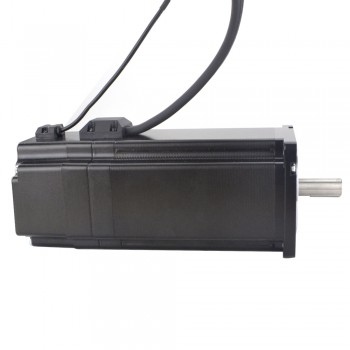

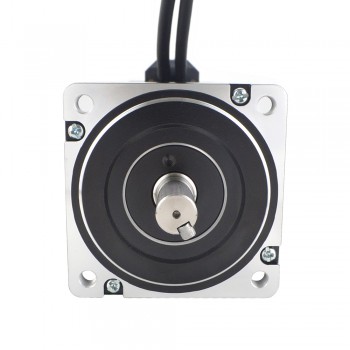

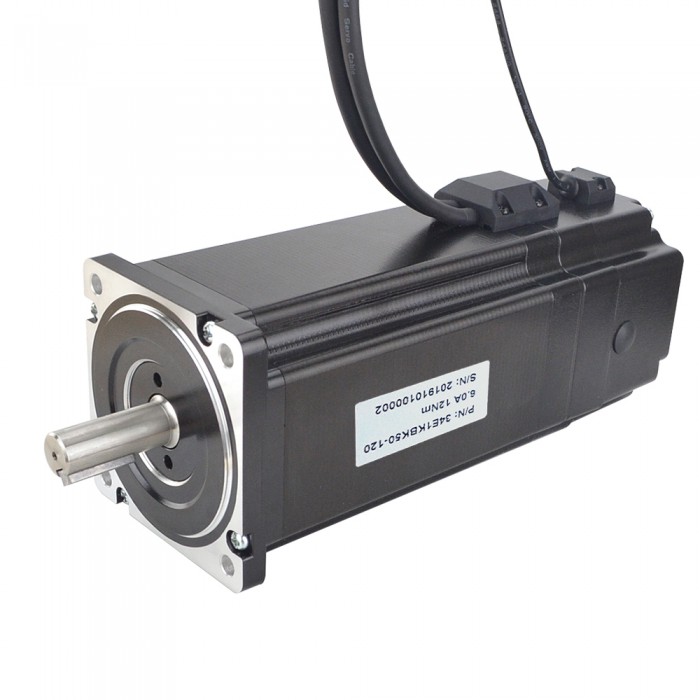

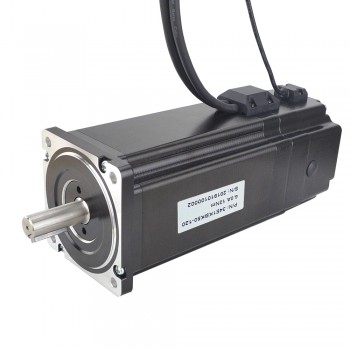

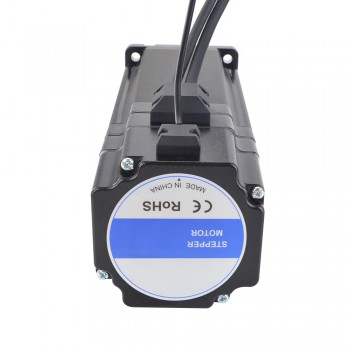

Nema 34 Closed Loop Stepper Motor P Series 12Nm/1700oz.in with with Electromagnetic Brake
Special Offer in May 2023:
- $10 Off Over $150
- $20 Off Over $300
- $30 Off Over $500
- $50 Off Over $800
- $60 Off Over $1000
- $80 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till May 31st, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$214.80
Electrical Specification
- Manufacturer Part Number: 34E1KBK50-120
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 12 Nm(1700 oz.in)
- Rated Current/phase: 6.0 A
- Phase Resistance: 0.72 ohms
- Inductance: 7.3 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86 mm
- Body Length: 150.6 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 37 mm
- keyway Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 5.0 kg
Encode Control(1000CPR)
- white--GND
- red--+5VCC
- blue--EA-
- black--EA+
- green--EB-
- yellow--EB+
Brake Connections
- Red--24V+
- Red--24V-
- 5.0Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
White
|
Green
|
Blue
|
Black
|
Resources
- Full Datasheet: 34E1KBK50-120.pdf
- Torque Curve: 34E1KBK50-120 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 1200 |
| Holding Torque (oz.in) | 1700 |
| Inductance(mH) | 7.3 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| Phase Resistance(ohm) | 0.72 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(Nm) | 5 |
| Static Friction Torque(oz.in) | 708.2 |
| Encoder Specification | |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
