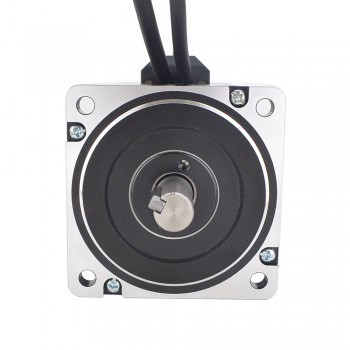

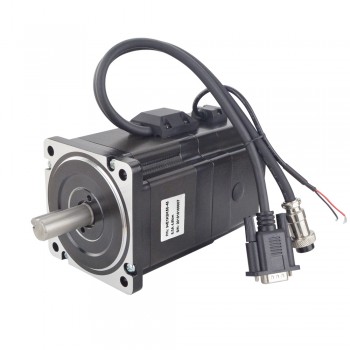

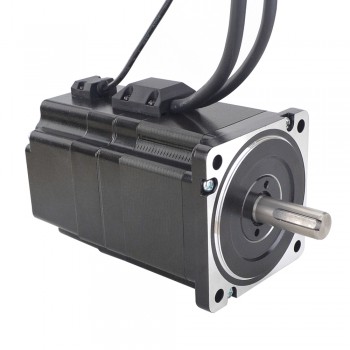

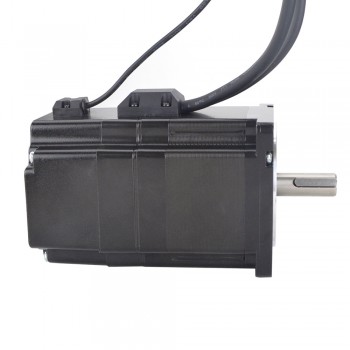

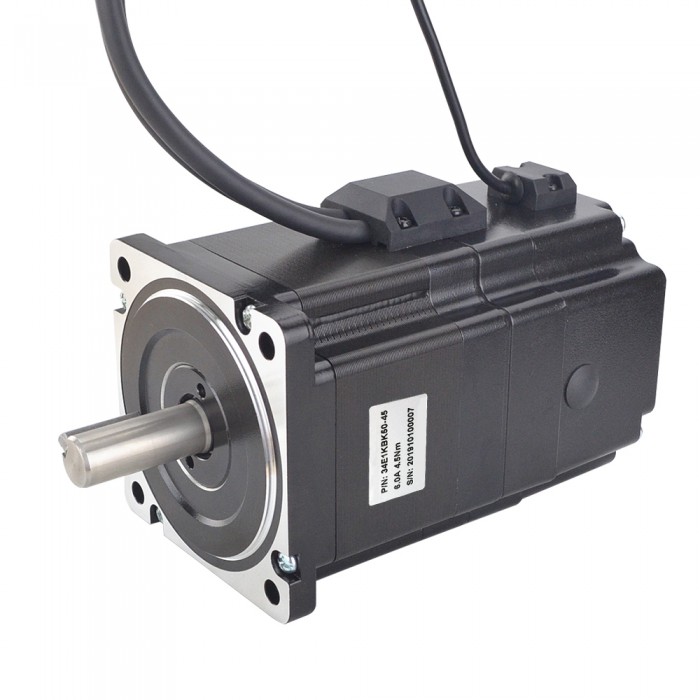

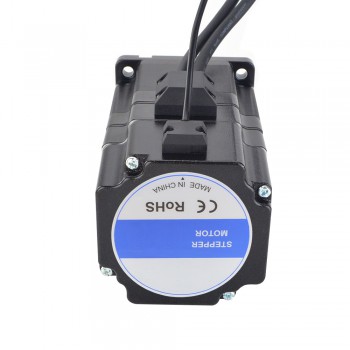

Nema 34 Closed Loop Stepper Motor P Series 1.8 Deg 4.5Nm 6.0A 2 Phase with Electromagnetic Brake
-
Manuals and Documentation:
Full Datasheet:
Torque Curve:
Our Price:$173.38
Electrical Specification
Manufacturer Part Number: 34E1KBK50-45
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 4.5 Nm(637.38 oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.34 ohms
Inductance: 2.4 mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86 mm
Body Length: 74 mm
Shaft Diameter: Φ14 mm
Shaft Length: 37 mm
keyway Length: 25 mm
Number of Leads: 4
Lead Length: 270 mm
Weight: 2.1 kg
Encode Control(1000CPR)
white--GND
red--+5VCC
blue--EA-
black--EA+
green--EB-
yellow--EB+
Brake Connections
Red--24V+
Red--24V-
5.0Nm
Connection
| A+ | A- | B+ | B- |
| White | Green | Blue | Black |
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 450 |
| Holding Torque (oz.in) | 637.38 |
| Inductance(mH) | 2.4 |
| Lead Length(mm) | 270 |
| Motor Nema Size | Nema 34 |
| Phase Resistance(ohm) | 0.34 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Static Friction Torque(Nm) | 5 |
| Static Friction Torque(oz.in) | 708.2 |
| Encoder Specification | |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
