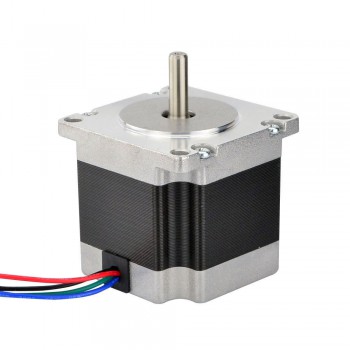

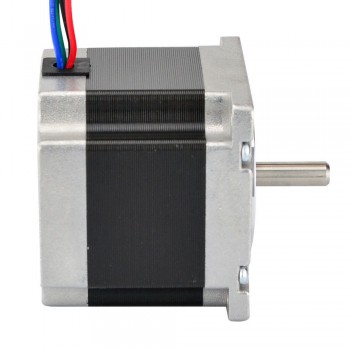

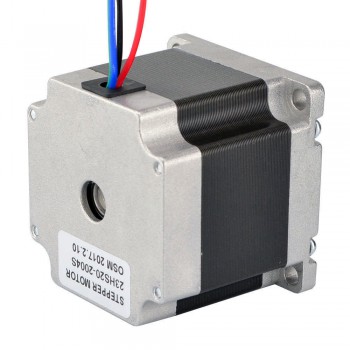

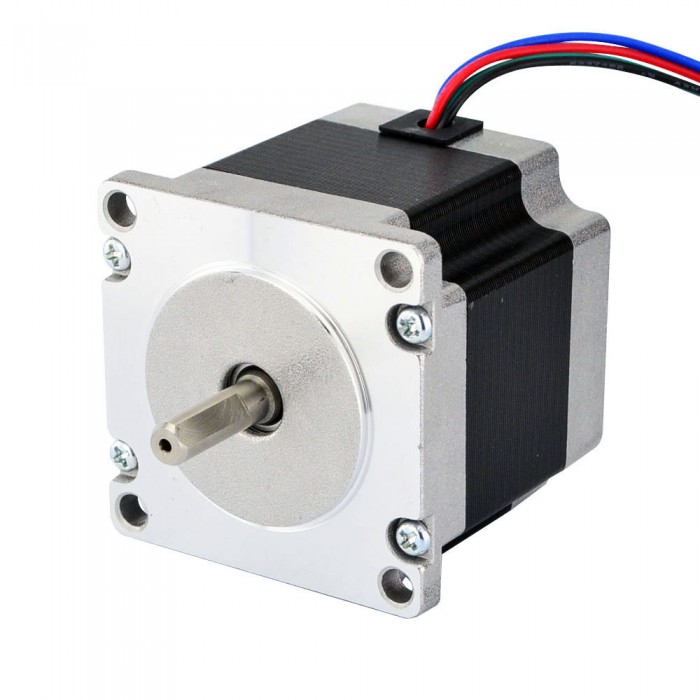

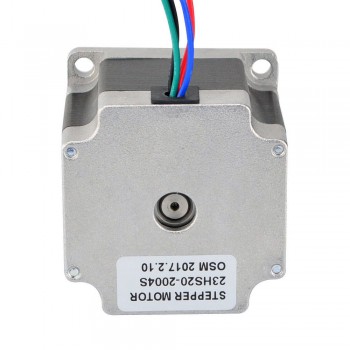

Nema Size 23 Stepper Motor Bipolar 1.8 Deg 0.9 Nm (127.5oz.in) 2A 3.6V 57x57x52mm 4 Wires
This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x52mm. It has 4 wires, each phase draws 2.0A, with holding torque 0.9Nm (127.5oz.in).
Electrical Specification
Manufacturer Part Number: 23HS20-2004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.9Nm(127.5oz.in)
Rated Current/phase: 2.0A
Voltage: 3.6V
Phase Resistance: 1.8ohms
Inductance: 5.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57mm
Body Length: 52mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.65kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23HS20-2004S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 90 |
| Holding Torque (oz.in) | 127.5 |
| Inductance(mH) | 5 |
| Phase Resistance(ohm) | 1.8 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 52 |
| Frame Size(mm) | 57x57 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 650 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
