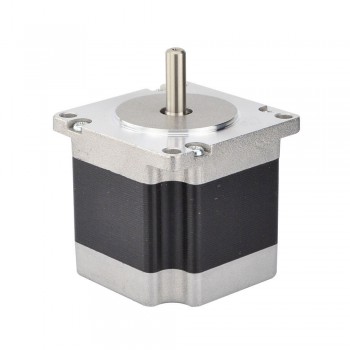

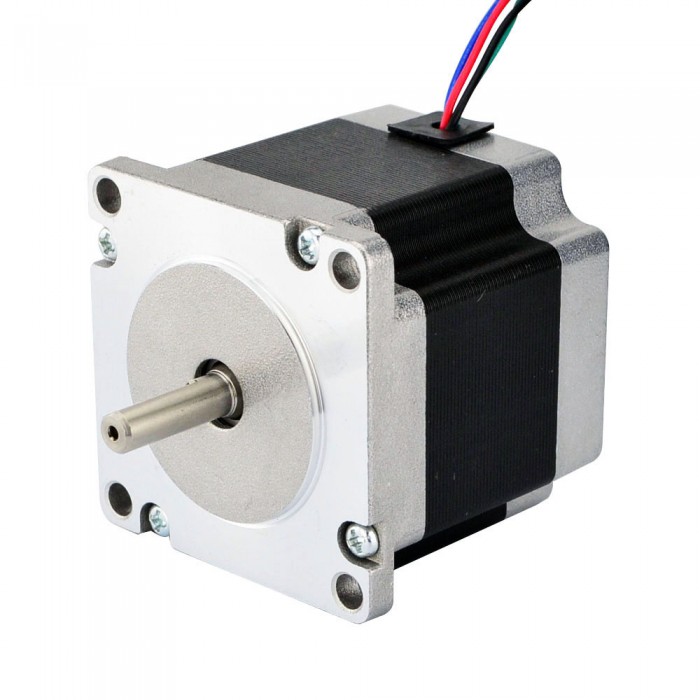

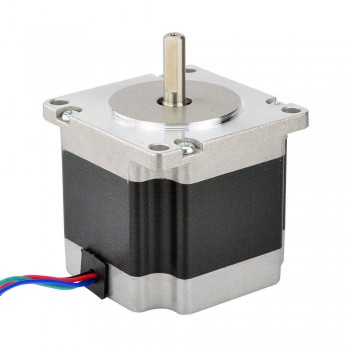

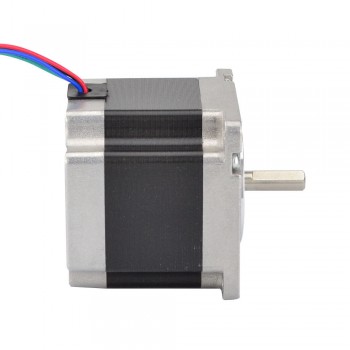

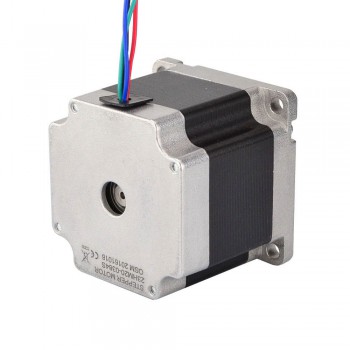

Nema 23 Stepper Motor Bipolar 0.9 Deg 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

NO.:23HM22-2804S
Post a review

China National Day Special Offer:

6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till October 7th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$23.65

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$22.47	5%
10	$21.99	7%
50	$21.29	10%
100	$20.58	13%

Affiliate Link

Description Specification Custom Options Review

This bipolar Nema 23 stepper motor with step angle 0.9deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.26Nm (178.4oz.in).

Electrical Specification

Manufacturer Part Number: 23HM22-2804S

Motor Type: Bipolar Stepper

Step Angle: 0.9 deg

Holding Torque: 1.26Nm(178.4oz.in)

Rated Current/phase: 2.8A

Voltage: 2.5V

Phase Resistance: 0.9ohms

Inductance: 4.5mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm

Body Length: 56mm

Shaft Diameter: Φ6.35mm

Shaft Length: 21mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 700g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 23HM22-2804S.pdf

Torque Curver: 23HM22-2804S Torque Curve.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 0.9 Deg 0.9Nm (127.5oz.in) 0.38A 12.1V 57x57x51mm 4 Wires
Next: Dual Shaft Nema 23 Stepper Motor Bipolar 3Nm (425oz.in) 3.78V 4.2A 57x57x114mm 4 Wires

Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque (Ncm)	126
Holding Torque (oz.in)	178.4
Inductance(mH)	4.5
Phase Resistance(ohm)	1
Rated Current (A)	2.8
Step Angle(°)	0.9
Physical Specification
Body Length(mm)	56
Frame Size(mm)	57x57
Single Shaft/Dual Shaft	Single Shaft
Shaft Type	D-Cut
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
No. of Lead	4
Lead Length(mm)	500
Weight(g)	700

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
