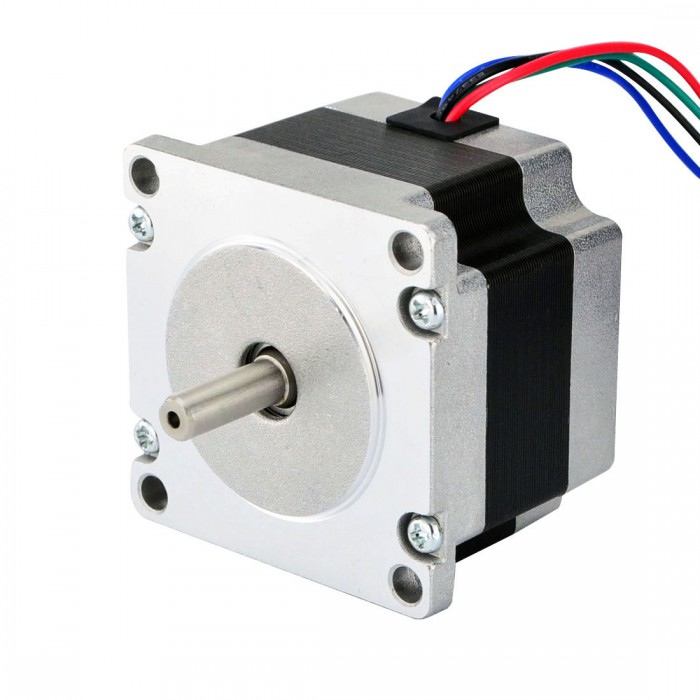

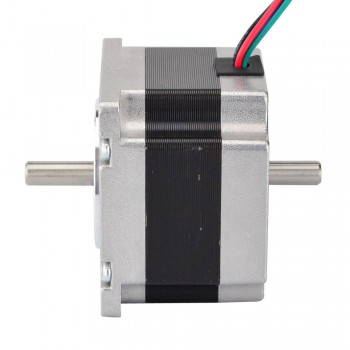

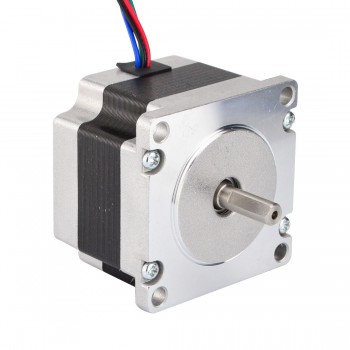

Dual Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 0.55Nm (78oz.in) 2.8A 2V 57x57x41mm 4 Wires

NO.:23HS16-2804D
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$17.39

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
10	$16.52	5%
30	$16.17	7%
50	$15.65	10%
100	$15.13	13%

Affiliate Link

Description Specification Custom Options Review

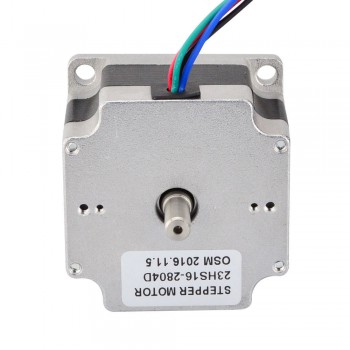

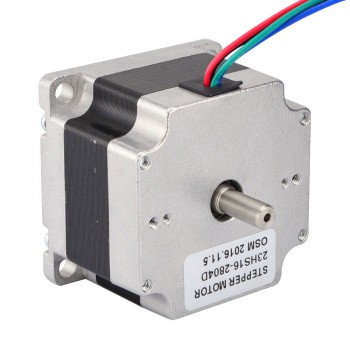

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x41mm. It has 4 wires, each phase draws 2.8A, with holding torque 0.55Nm (78oz.in), a rear shaft is made for encoder or equals.
