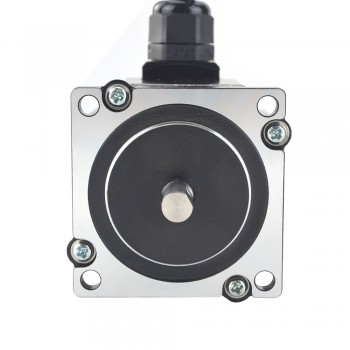

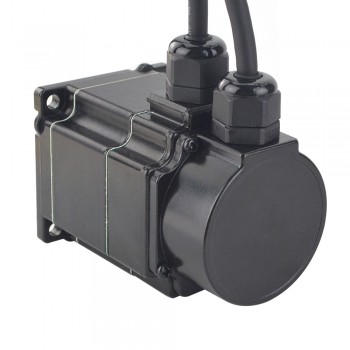

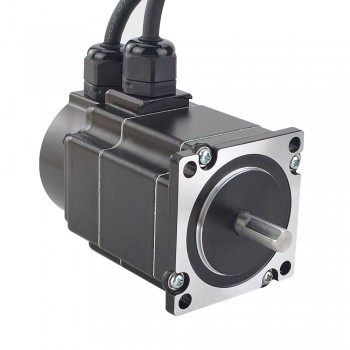

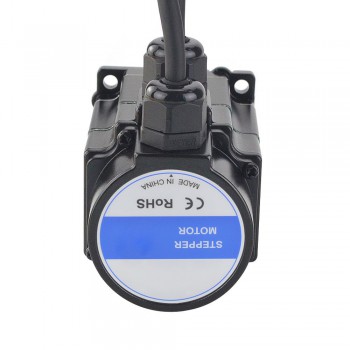

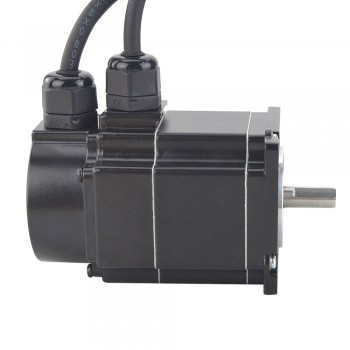

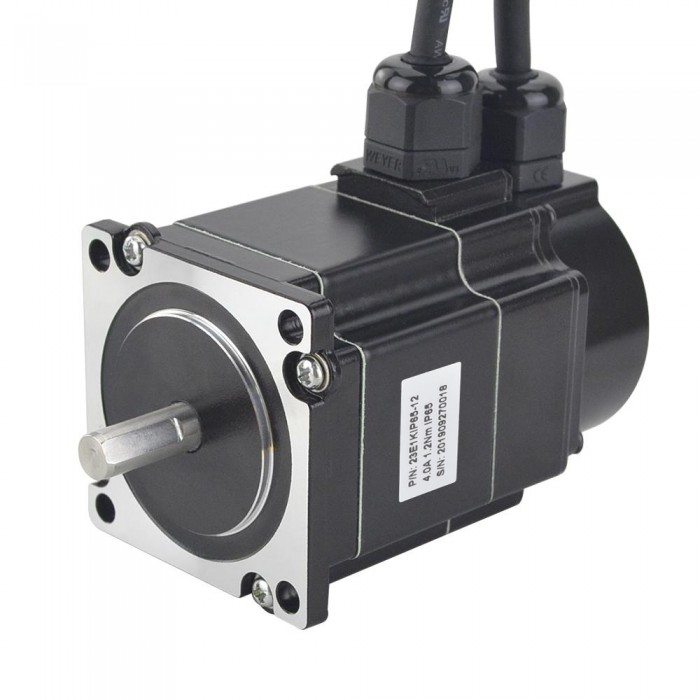

Waterproof Nema 23 Closed Loop Stepper Motor P Series IP65 1.8 Deg 1.2Nm 4A 2 Phase with Encoder 1000CPR
Special Offer in Black Friday 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$87.56
Electrical Specification
Manufacturer Part Number: 23E1KIP65-12
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 1.2 Nm(169.97 oz.in)
Rated Current/phase: 4.0 A
Phase Resistance: 0.45 ohms
Inductance: 1.4 mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57 mm
Body Length: 65 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 1000 mm
Weight: 0.8 kg
Encode Control(1000CPR)
Black--GND
Red--+5VCC
Blue/White--EA-
Blue--EA+
Orange/White--EB-
Orange--EB+
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23E1KIP65-12.pdf
Torque Curve: 23E1KIP65-12 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 120 |
| Holding Torque (oz.in) | 169.97 |
| Inductance(mH) | 1.4 |
| Lead Length(mm) | 1000 |
| Phase Resistance(ohm) | 0.45 |
| Rated Current (A) | 4.0 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP65 |
| Aviation plug | PG9 |
| Encoder Specification | |
| Output Signal Channels | 2 |
| Resolution(CPR) | 1000 |
