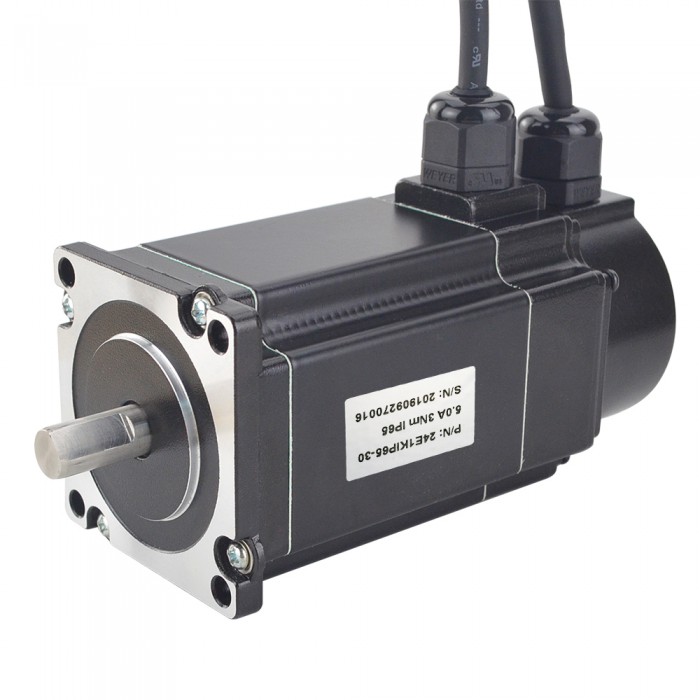

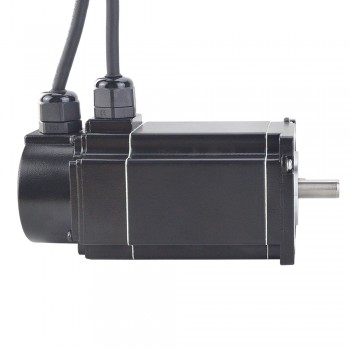

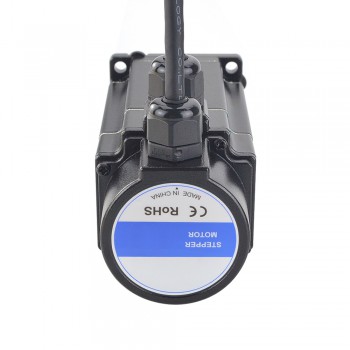

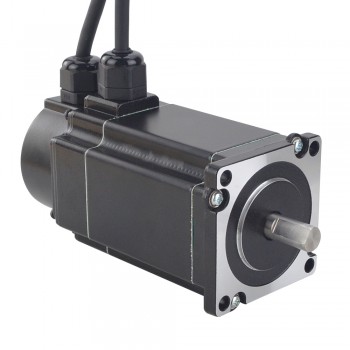

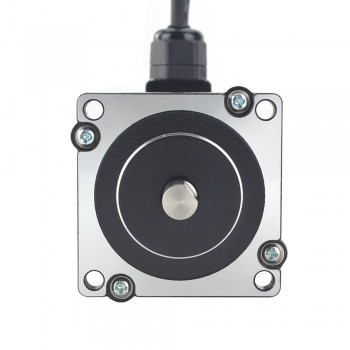

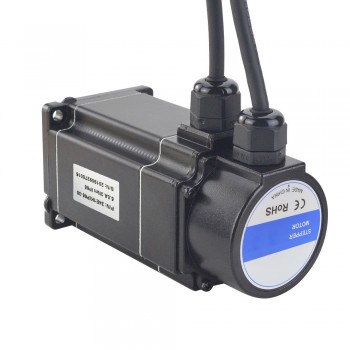

Waterproof Nema 24 Closed Loop Stepper Motor P Series IP65 1.8 Deg 3Nm 5.0A 2 Phase with Encoder 1000CPR
-
Manuals and Documentation:
Full Datasheet:
Torque Curve:
Special Offer in June 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$104.21
This NEMA24 hybrid stepper draws 5A/phase and puts out 3Nm holding torque. 1.8° step angle with 1000CPR encoder (EA+/-, EB+/-), 1m leads.
Electrical Specification
Manufacturer Part Number: 24E1KIP65-30
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 3 Nm(424.92 oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.45 ohms
Inductance: 1.8 mH ± 20%(1KHz)
Physical Specification
Frame Size: 60 x 60 mm
Body Length: 97 mm
Shaft Diameter: Φ10 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 1000 mm
Weight: 1.4 kg
Encode Control(1000CPR)
Black--GND
Red--+5VCC
Blue/White--EA-
Blue--EA+
Orange/White--EB-
Orange--EB+
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 424.92 |
| Inductance(mH) | 1.8 |
| Lead Length(mm) | 1000 |
| Phase Resistance(ohm) | 0.45 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP65 |
| Aviation plug | PG9 |
| Encoder Specification | |
| Output Signal Channels | 2 |
| Resolution(CPR) | 1000 |
