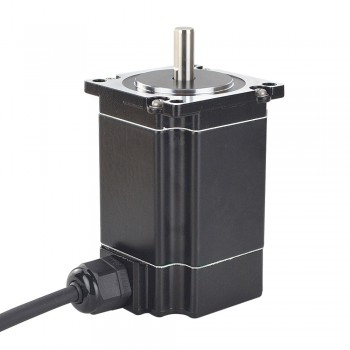

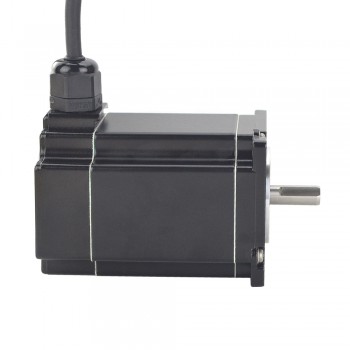

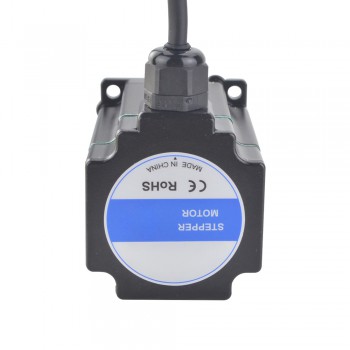

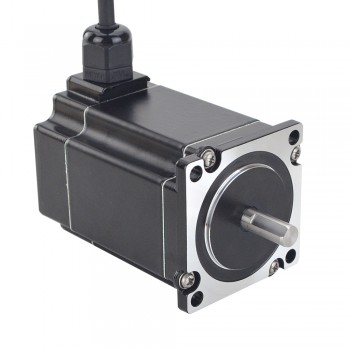

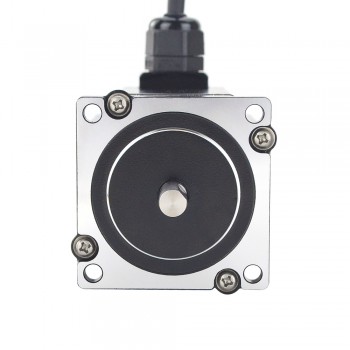

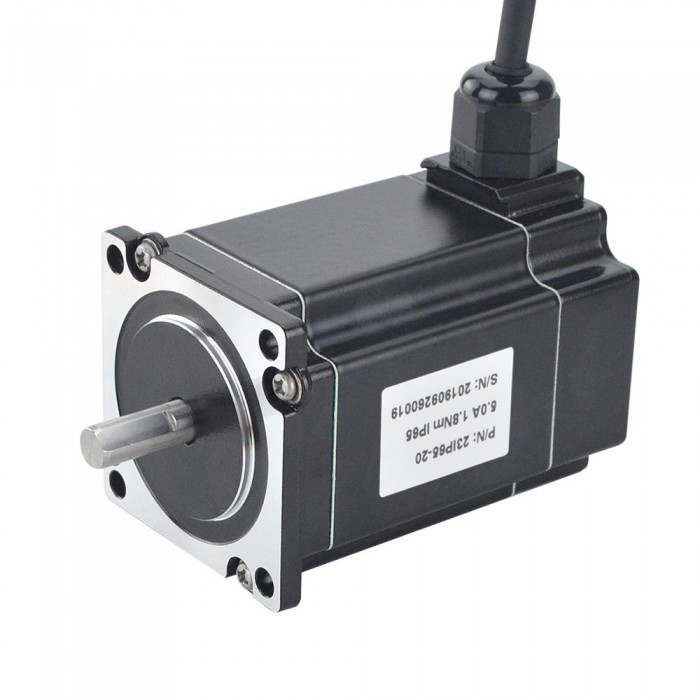

Waterproof Nema 23 Stepper Motor 5.0A 1.8Nm(254.95oz.in)P Series IP65

NO.:23IP65-20
Review: Post a review
Latest price:$72.86
Buy It Now:$56.05
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$52.06 $48.05 $44.04 $40.04
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 23IP65-20
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 1.8 Nm(254.95 oz.in)
  • Rated Current/phase: 5.0 A
  • Phase Resistance: 0.44 ohms
  • Inductance: 1.8 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57 mm
  • Body Length: 85.8 mm
  • Shaft Diameter: Φ8 mm
  • Shaft Length: 21 mm
  • D-Cut Shaft Length: 15 mm
  • Lead Length: 1000 mm
  • Weight: 1.1 kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Waterproof Nema 23 Stepper Motor 4.0A 1.2Nm(169.97oz.in)P Series IP65
Next: Waterproof Nema 24 Closed Loop Stepper Motor P Series IP65 3Nm/424.92oz.in with Encoder 1000CPR
Motor Specification
Holding Torque (Ncm) 200
Holding Torque (oz.in) 283.28
Inductance(mH) 1.8
Lead Length(mm) 1000
Motor Nema Size Nema 23
Phase Resistance(ohm) 0.44
Rated Current (A) 5
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Step Angle(°) 1.8
Number Of Phase 2
Waterproof Level IP65
Aviation plug PG9
