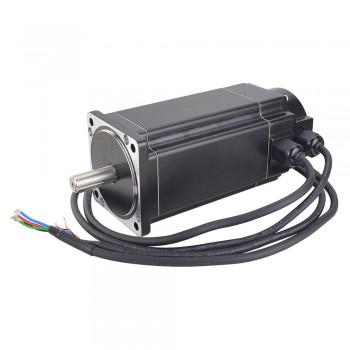

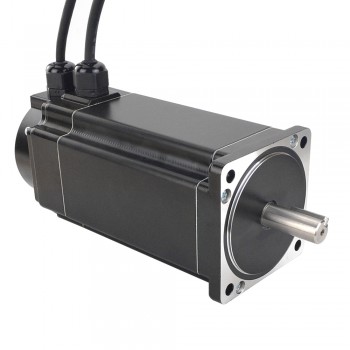

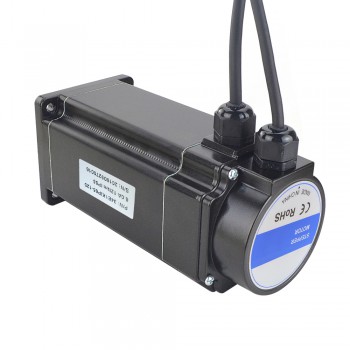

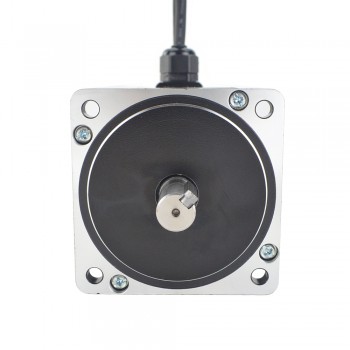

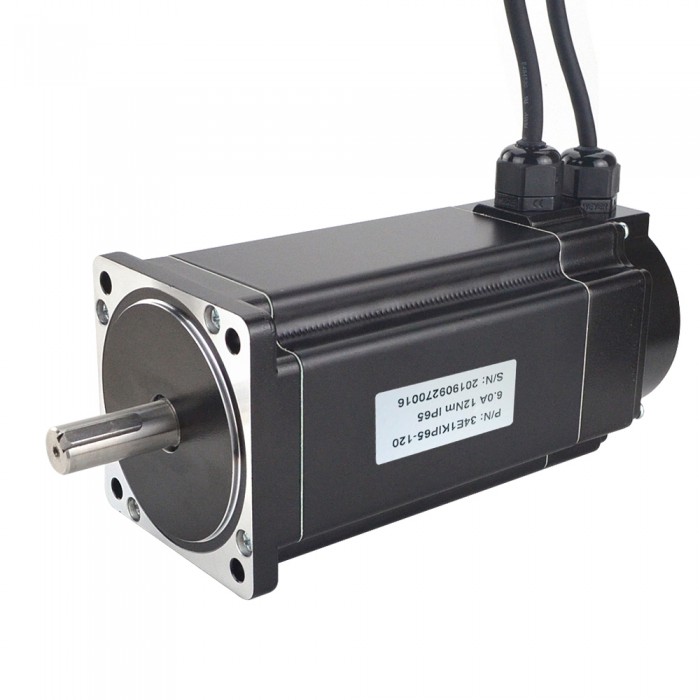

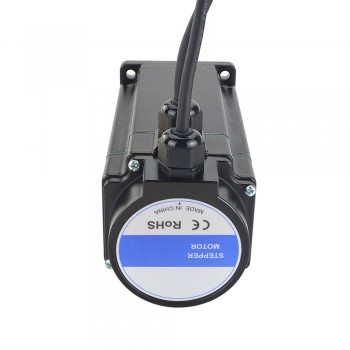

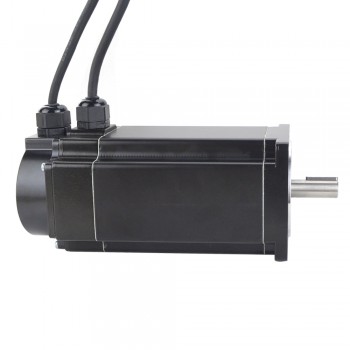

Waterproof Nema 34 Closed Loop Stepper Motor P Series IP65 1.8 Deg 12Nm 6A 2 Phase with Encoder 1000CPR
Special Offer in September 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till September 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$174.06
Electrical Specification
Manufacturer Part Number: 34E1KIP65-120
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 12 Nm(1700 oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.72 ohms
Inductance: 7.3 mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86 mm
Body Length: 164.5 mm
Shaft Diameter: Φ14 mm
Shaft Length: 37 mm
keyway Length: 25 mm
Lead Length: 1000 mm
Weight: 5.0 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 34E1KIP65-120.pdf
Torque Curve: 34E1KIP65-120 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 1200 |
| Holding Torque (oz.in) | 1700 |
| Inductance(mH) | 7.3 |
| Lead Length(mm) | 1000 |
| Phase Resistance(ohm) | 0.72 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP65 |
| Aviation plug | PG9 |
| Encoder Specification | |
| Output Signal Channels | 2 |
| Resolution(CPR) | 1000 |
