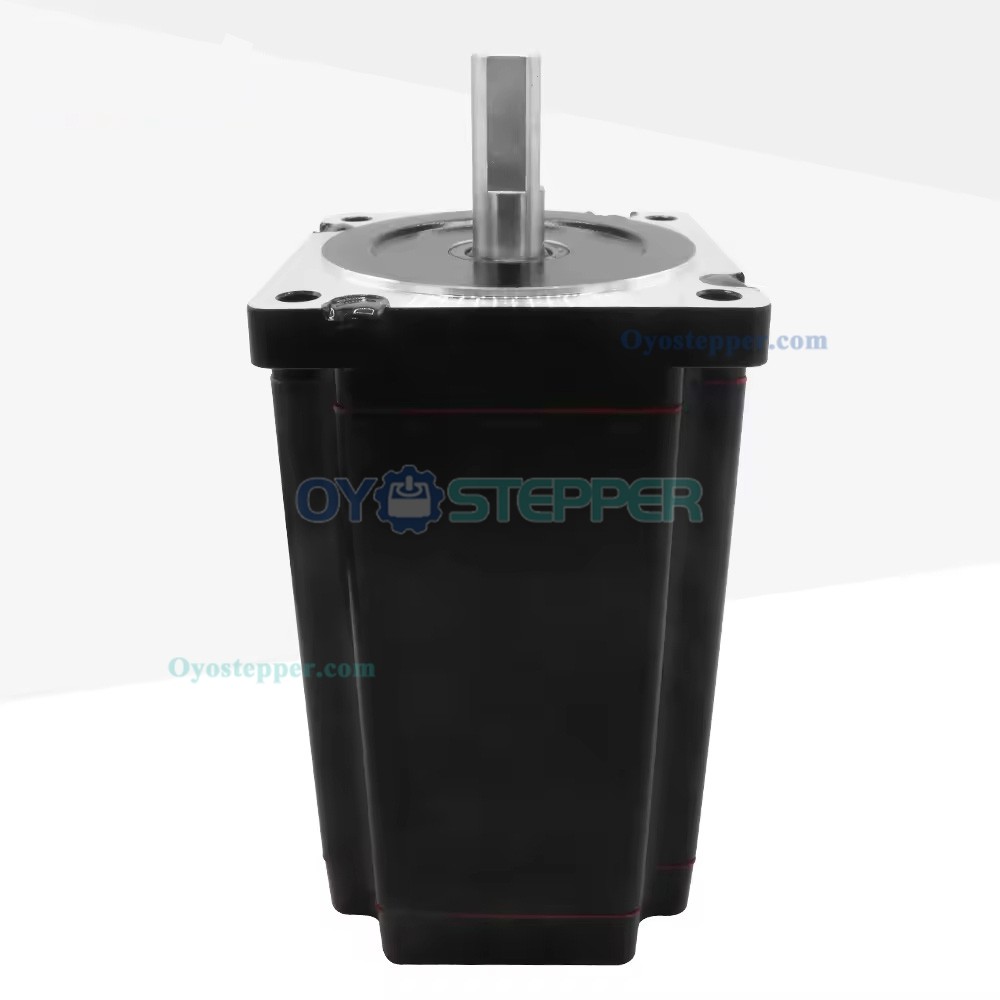

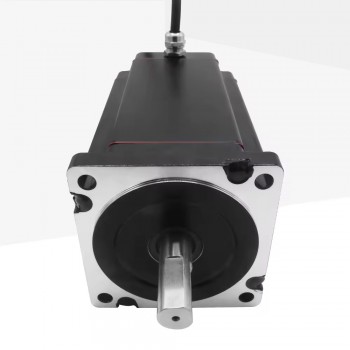

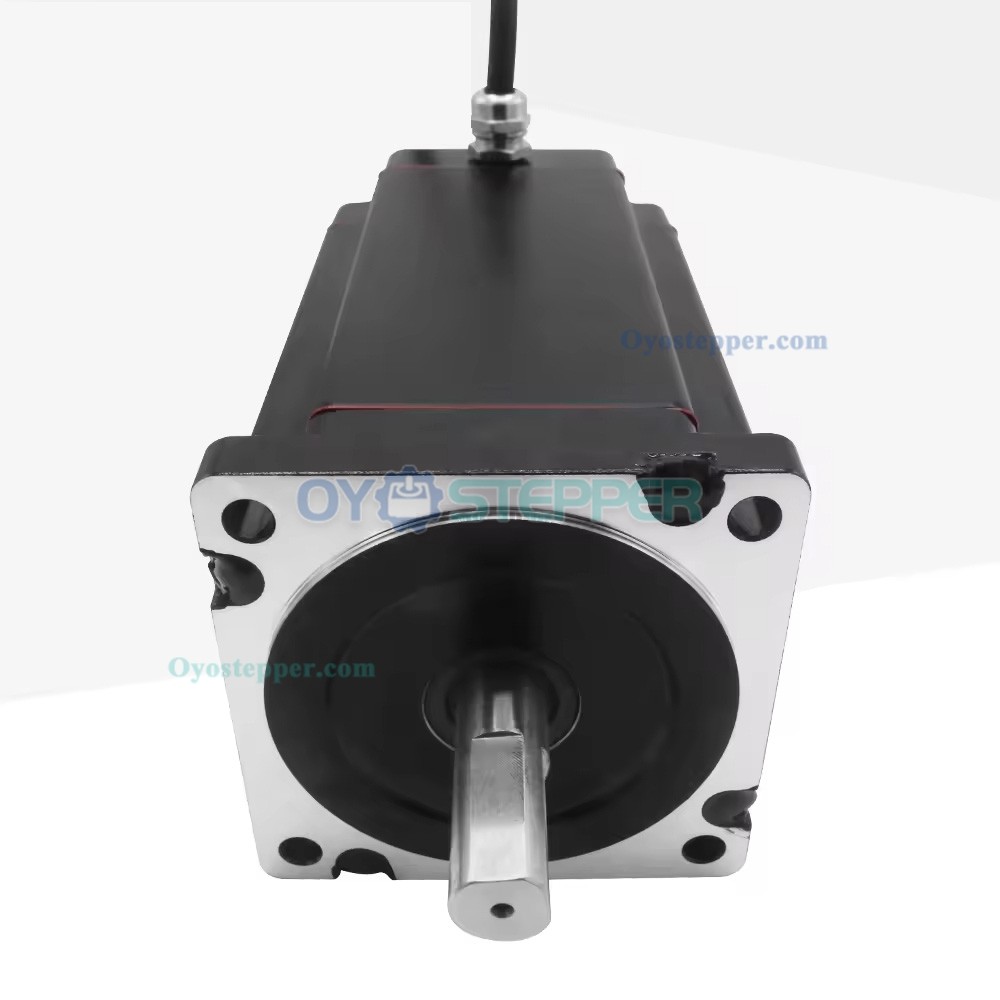

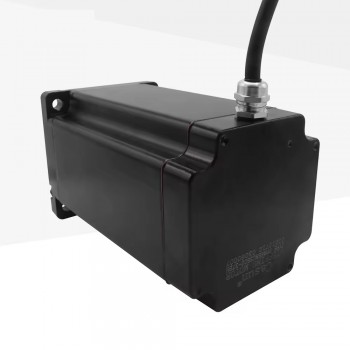

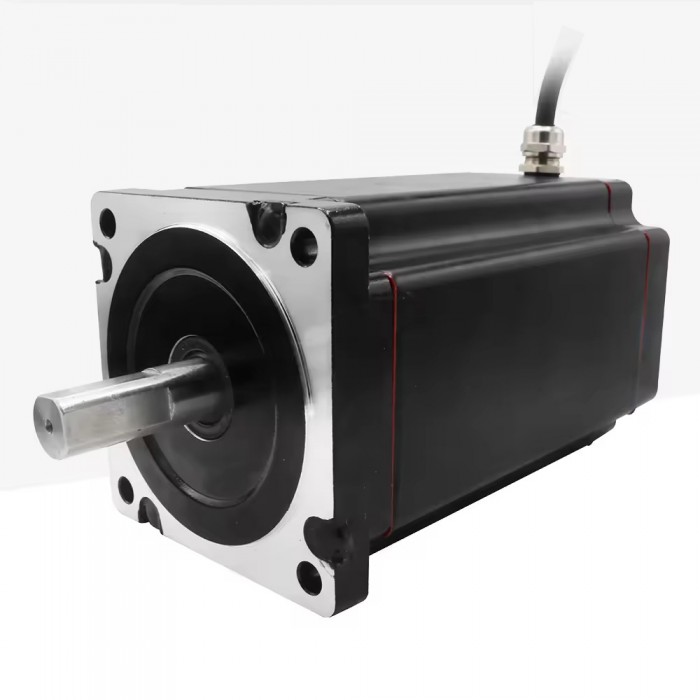

CASUN IP67 NEMA 34 Waterproof Stepper Motor 9Nm 1.8 Deg 12.95V 2 Phase 86 x 86 mm Hybrid Stepper Motor
CASUN IP67 NEMA 34 Waterproof Stepper Motor 9Nm 1.8 Deg 12.95V 2 Phase 86 x 86 mm Hybrid Stepper Motor
Electrical Specification
Model:FP86SHC3502-37BH
Number of phase:2
Step Angle: 1.8 deg
Holding Torque: 9 Nm
Detent torque:0.28N.m
Rated Current/phase:3A
Rated Voltage:12.95V
Phase Resistance:0.95ohm±10%
Phase Inductance:3.6mH±20%
Rotor Inertia:4500 g-cm²

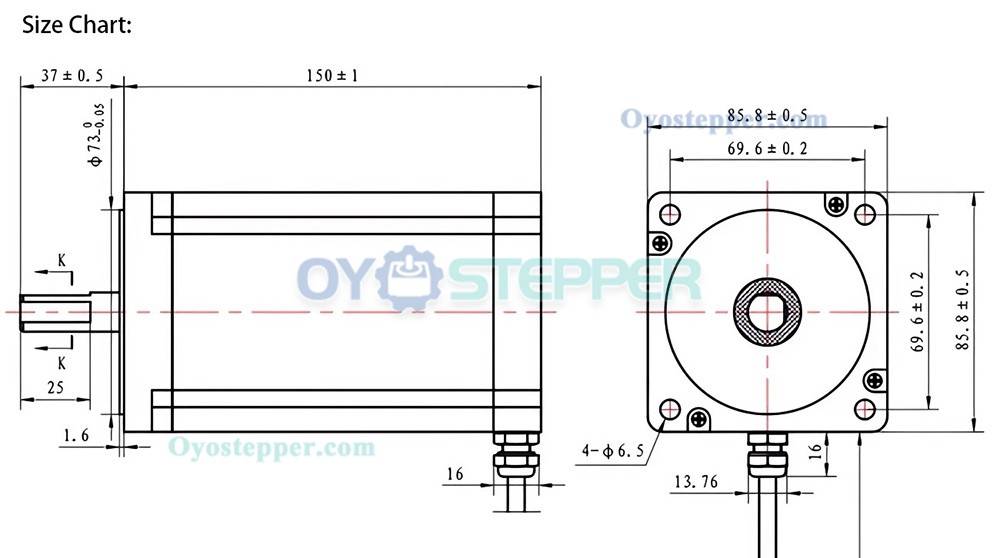

Physical Specification
Frame Size: 86 x 86 mm
Body Length: 150 ± 1 mm
Shaft Diameter: 13.76mm
Shaft Length: 37 ± 0.5 mm
D-Cut Shaft Length: 25mm
Number of leads:4
Weight:5KG
.jpg "CASUN IP67 NEMA 34 Waterproof Stepper Motor 9Nm 1.8 Deg 12.95V 2 Phase 86 x 86 mm Hybrid Stepper Motor")
.jpg "CASUN IP67 NEMA 34 Waterproof Stepper Motor 9Nm 1.8 Deg 12.95V 2 Phase 86 x 86 mm Hybrid Stepper Motor")
.jpg "CASUN IP67 NEMA 34 Waterproof Stepper Motor 9Nm 1.8 Deg 12.95V 2 Phase 86 x 86 mm Hybrid Stepper Motor")
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Body Length(mm) | 150 |
| Holding Torque (Ncm) | 900 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 13.76 |
| Shaft Length(mm) | 37 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP67 |
