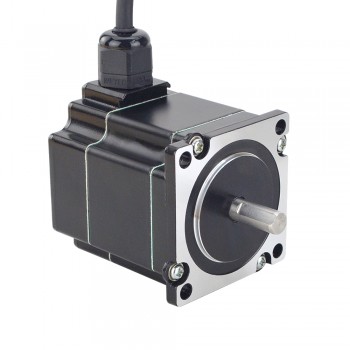

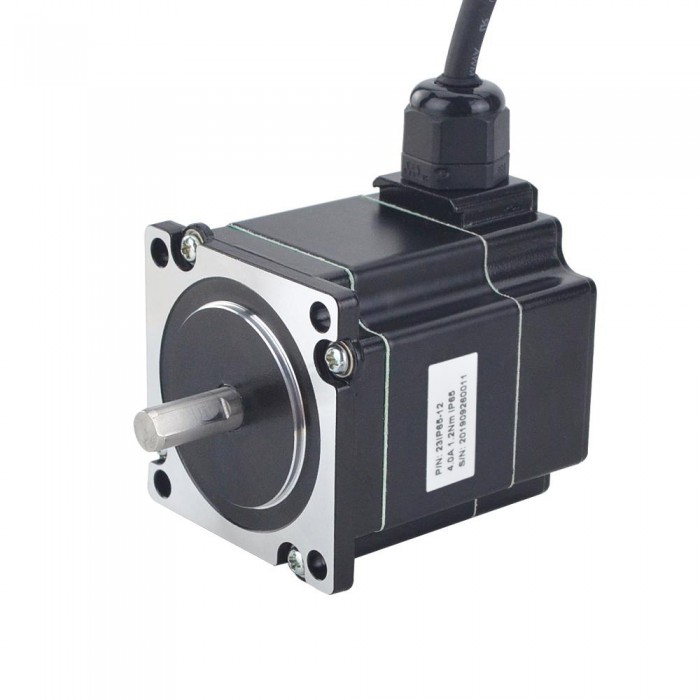

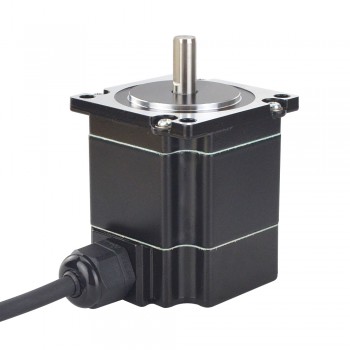

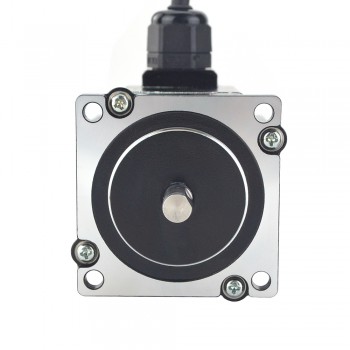

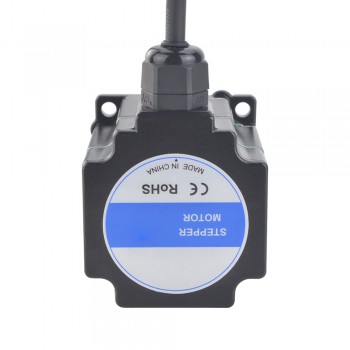

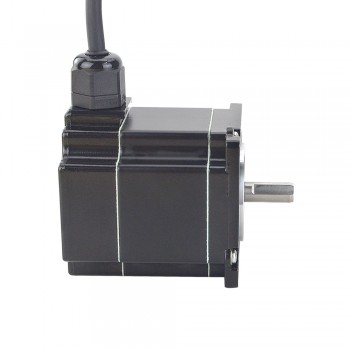

Waterproof Nema 23 Stepper Motor 1.8 Deg 4.0A 1.2Nm P Series IP65 Water Resistant Stepper Motor

Waterproof Nema 23 Stepper Motor 1.8 Deg 4.0A 1.2Nm P Series IP65 Water Resistant Stepper Motor
NO.:23IP65-12
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$51.56
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $48.98 5%
10 $47.95 7%
50 $46.40 10%
100 $44.86 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 23IP65-12
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 1.2 Nm(169.97 oz.in)
  • Rated Current/phase: 4.0 A
  • Phase Resistance: 0.47 ohms
  • Inductance: 1.4 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57 mm
  • Body Length: 65 mm
  • Shaft Diameter: Φ8 mm
  • Shaft Length: 21 mm
  • D-Cut Shaft Length: 15 mm
  • Lead Length: 1000 mm
  • Weight: 0.8 kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Waterproof Nema 23 Closed Loop Stepper Motor 2 Phase P Series IP65 1.8 Deg 2Nm 5.0 A with Encoder 1000CPR
Next: Waterproof Nema 23 Stepper Motor 1.8 Deg 5.0A 1.8Nm P Series IP65 2 Phase Water Resistant Stepper Motor
Motor Specification
Holding Torque (Ncm) 120
Holding Torque (oz.in) 169.97
Inductance(mH) 1.4
Lead Length(mm) 1000
Motor Nema Size Nema 23
Phase Resistance(ohm) 0.47
Rated Current (A) 4
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Step Angle(°) 1.8
Number Of Phase 2
Waterproof Level IP65
Aviation plug PG9
