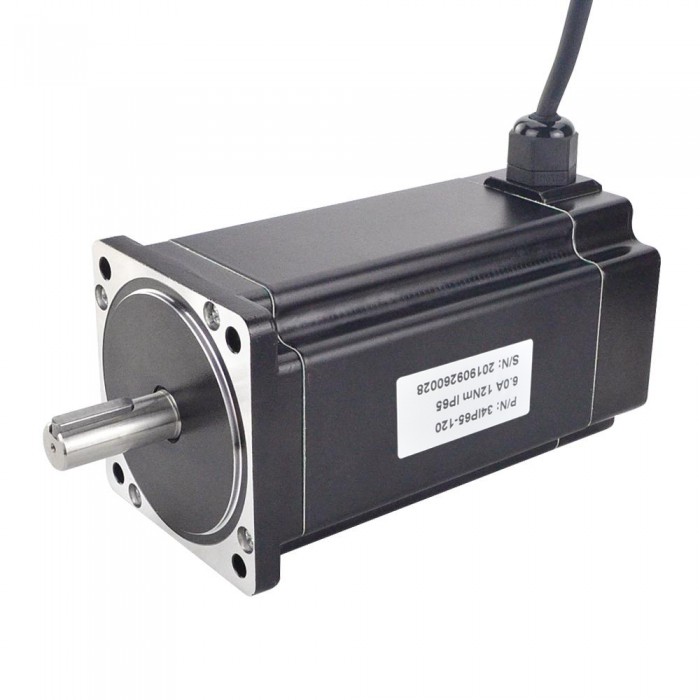

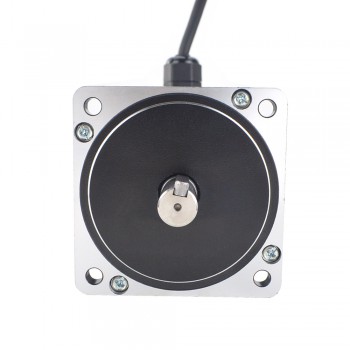

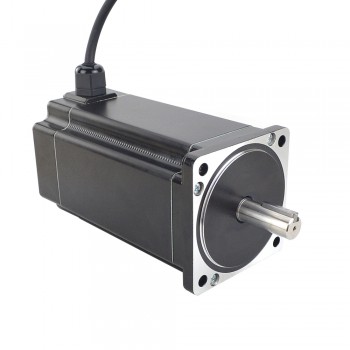

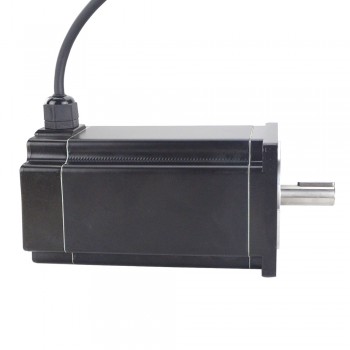

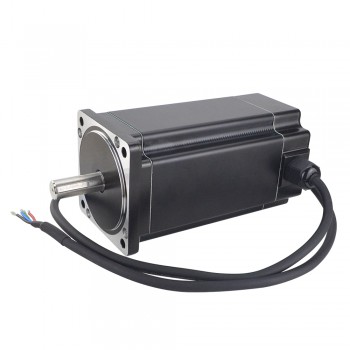

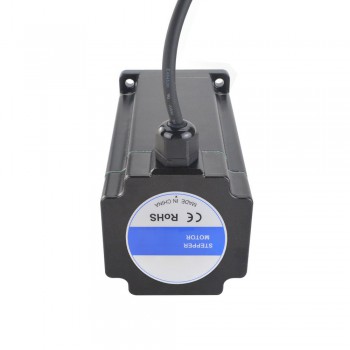

Waterproof Nema 34 Stepper Motor 1.8 Deg 6.0A 12Nm(1700oz.in) 2 Phase P Series IP65
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$139.67
Electrical Specification
- Manufacturer Part Number: 34IP65-120
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 12 Nm(1700 oz.in)
- Rated Current/phase: 6.0 A
- Phase Resistance: 0.72 ohms
- Inductance: 7.3 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86 mm
- Body Length: 164.5 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 37 mm
- keyway Length: 25 mm
- Lead Length: 1000 mm
- Weight: 5.0 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 34IP65-120.pdf
- Torque Curve: 34IP65-120 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 1200 |
| Holding Torque (oz.in) | 1700 |
| Inductance(mH) | 7.3 |
| Lead Length(mm) | 1000 |
| Motor Nema Size | Nema 34 |
| Phase Resistance(ohm) | 0.72 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP65 |
| Aviation plug | PG9 |
