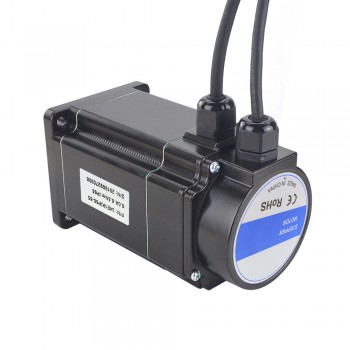

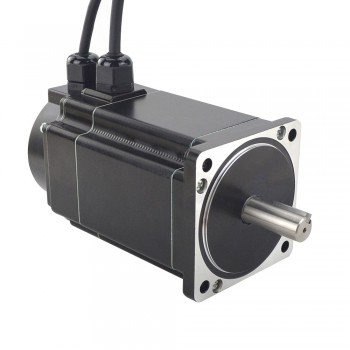

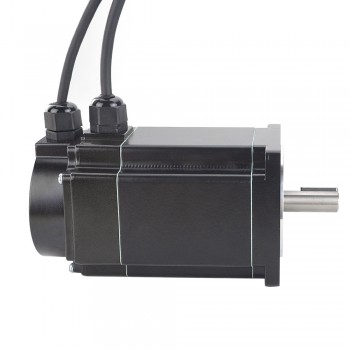

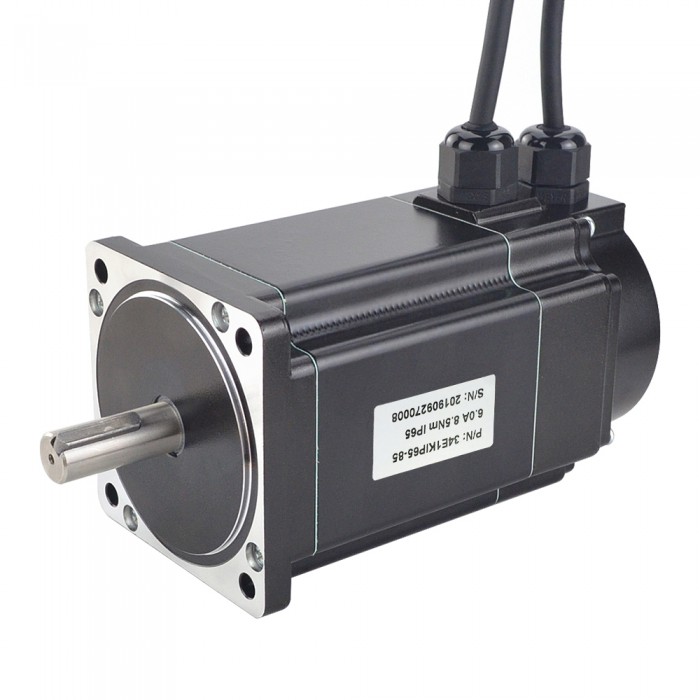

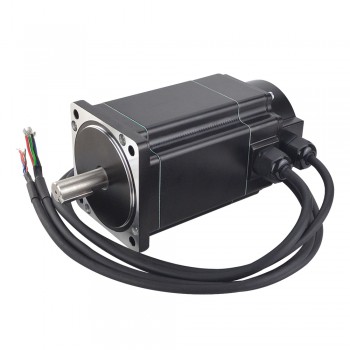

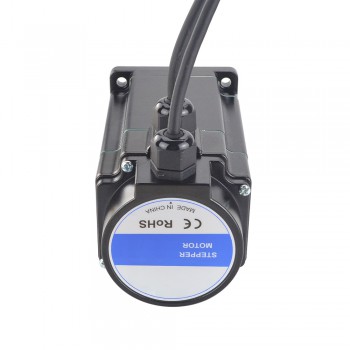

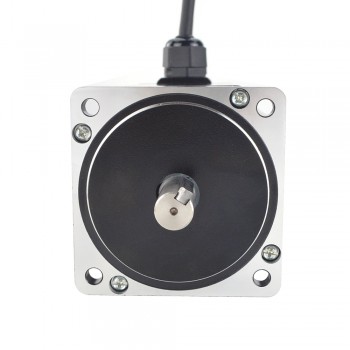

Waterproof Nema 34 Closed Loop Stepper Motor P Series IP65 1.8 Deg 8.5Nm 6A 2 Phase with Encoder 1000CPR
China National Day Special Offer:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$146.12
Electrical Specification
- Manufacturer Part Number: 34E1KIP65-85
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 8.5 Nm(1203.94 oz.in)
- Rated Current/phase: 6.0 A
- Phase Resistance: 0.54 ohms
- Inductance: 5.0 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86 mm
- Body Length: 126.5 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 37 mm
- keyway Length: 25 mm
- Lead Length: 1000 mm
- Weight: 3.6 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 34E1KIP65-85.pdf
- Torque Curve: 34E1KIP65-85 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.94 |
| Inductance(mH) | 5.0 |
| Lead Length(mm) | 1000 |
| Phase Resistance(ohm) | 0.54 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP65 |
| Aviation plug | PG9 |
| Encoder Specification | |
| Output Signal Channels | 2 |
| Resolution(CPR) | 1000 |
