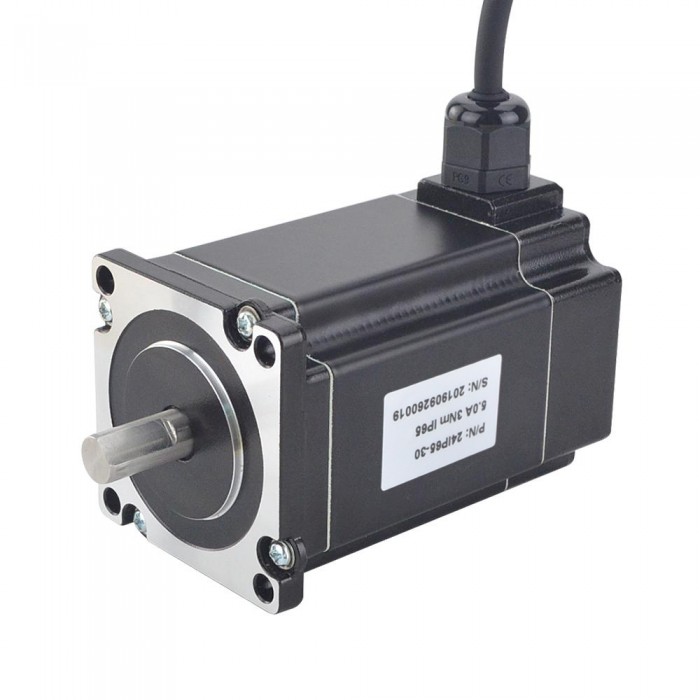

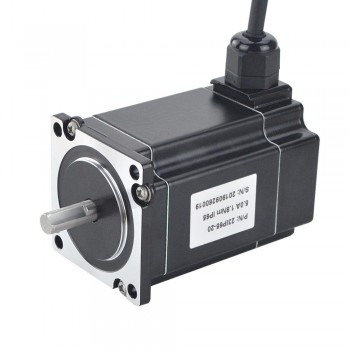

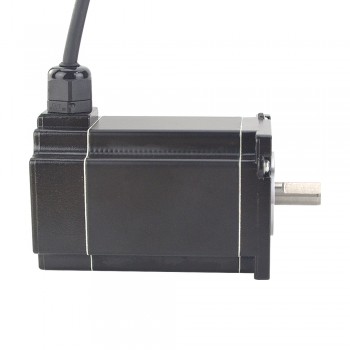

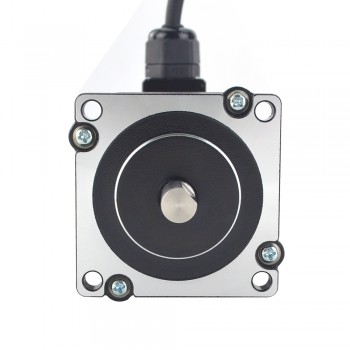

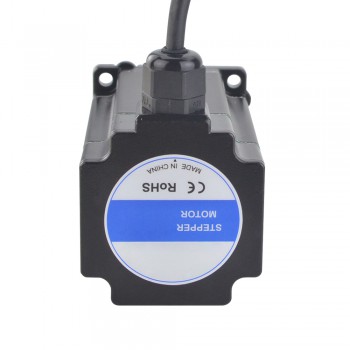

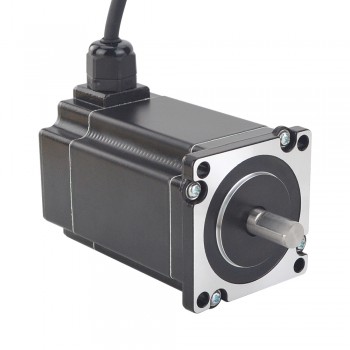

Waterproof Nema 24 Stepper Motor 1.8 Deg 5.0A 3Nm P Series IP65 2 Phase Water Resistant Stepper Motor

NO.:24IP65-30
Post a review

Special Offer in September 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 20th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$69.84

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$66.35	5%
10	$64.95	7%
50	$62.86	10%
100	$60.76	13%

Affiliate Link

Description Specification Custom Options Review

Electrical Specification

Manufacturer Part Number: 24IP65-30

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 3 Nm(424.92 oz.in)

Rated Current/phase: 5.0 A

Phase Resistance: 0.45 ohms

Inductance: 1.8 mH ± 20%(1KHz)

Physical Specification

Frame Size: 60 x 60 mm

Body Length: 100 mm

Shaft Diameter: Φ10 mm

Shaft Length: 21 mm

D-Cut Shaft Length: 15 mm

Lead Length: 1000 mm

Weight: 1.4 kg

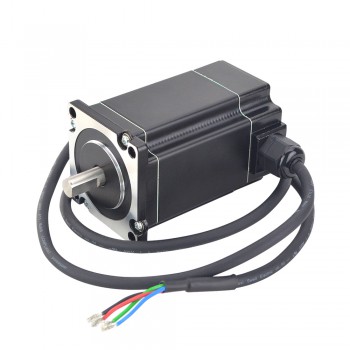

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Resources

Full Datasheet: 24IP65-30.pdf

Torque Curve: 24IP65-30 Torque Curve.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Waterproof Nema 24 Closed Loop Stepper Motor P Series IP65 1.8 Deg 3Nm 5.0A 2 Phase with Encoder 1000CPR
Next: Waterproof Nema 34 Closed Loop Stepper Motor P Series IP65 1.8 Deg 4.5Nm 6.0 A with Encoder 1000CPR

Motor Specification
Holding Torque (Ncm)	300
Holding Torque (oz.in)	424.92
Inductance(mH)	1.8
Lead Length(mm)	1000
Motor Nema Size	Nema 24
Phase Resistance(ohm)	0.45
Rated Current (A)	5
Shaft Diameter(mm)	10
Shaft Length(mm)	21
Step Angle(°)	1.8
Number Of Phase	2
Waterproof Level	IP65
Aviation plug	PG9
