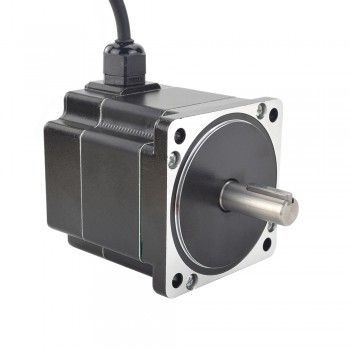

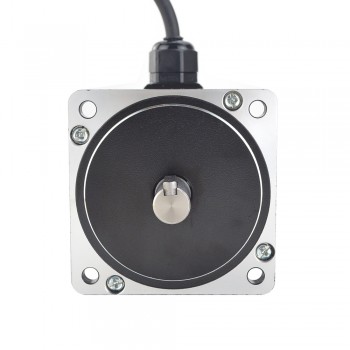

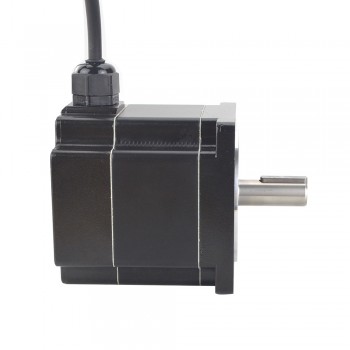

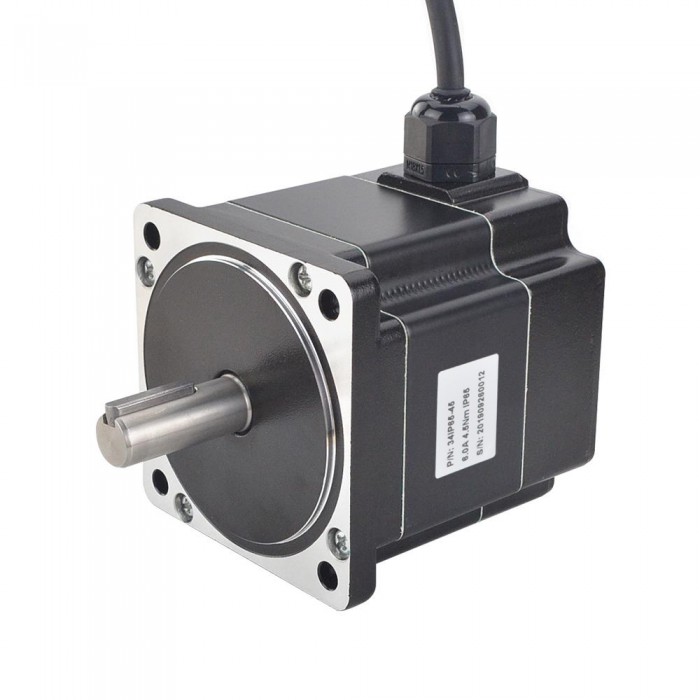

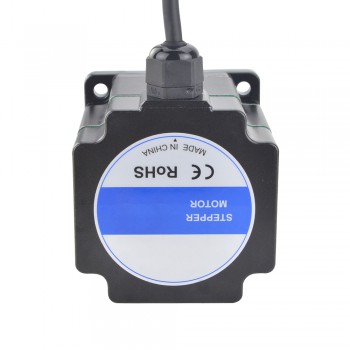

Waterproof Nema 34 Stepper Motor 1.8 Deg 6.0A 4.5Nm P Series IP65 2 Phase Water Resistant Stepper Motor
Electrical Specification
Manufacturer Part Number: 34IP65-45
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 4.5 Nm(637.38 oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.34 ohms
Inductance: 2.4 mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86 mm
Body Length: 87.8 mm
Shaft Diameter: Φ14 mm
Shaft Length: 37 mm
keyway Length: 25 mm
Lead Length: 1000 mm
Weight: 2.1 kg

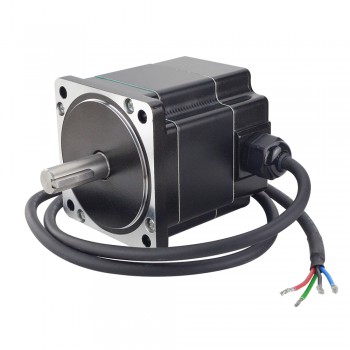

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 34IP65-45.pdf
Torque Curve: 34IP65-45 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 450 |
| Holding Torque (oz.in) | 637.38 |
| Inductance(mH) | 2.4 |
| Lead Length(mm) | 1000 |
| Motor Nema Size | Nema 34 |
| Phase Resistance(ohm) | 0.34 |
| Rated Current (A) | 6 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Waterproof Level | IP65 |
| Aviation plug | PG9 |
