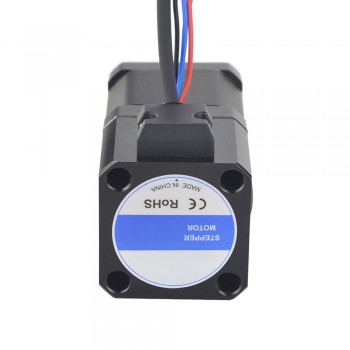

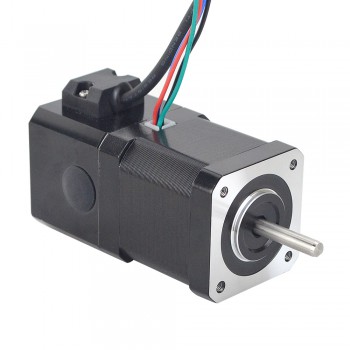

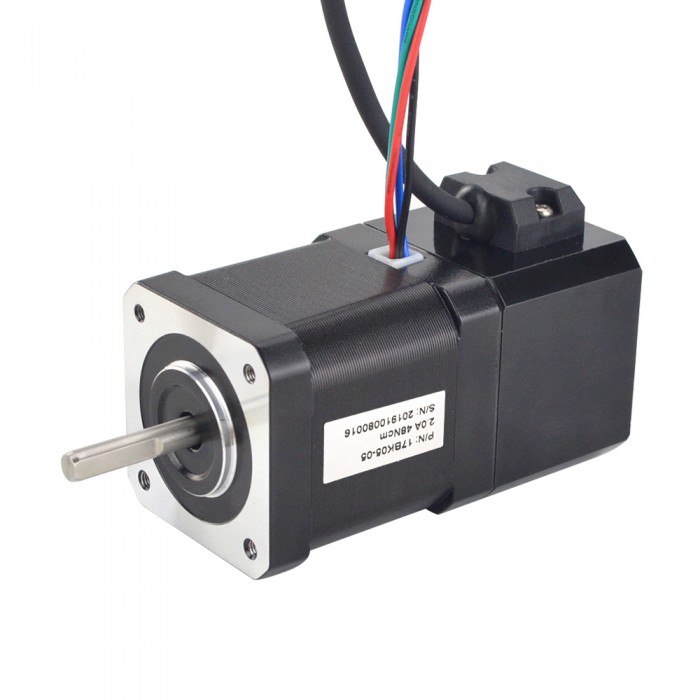

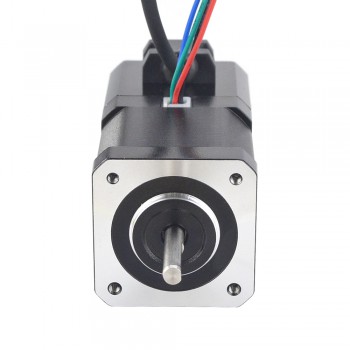

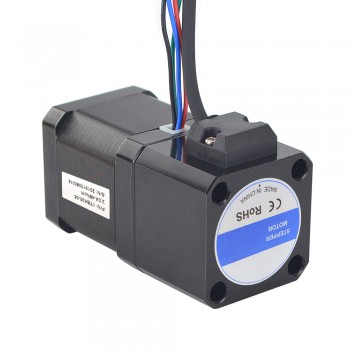

P Series Nema 17 Stepper Motor 48Ncm/67.99oz.in with Electromagnetic Brake

NO.:17BK05-05
Review: Post a review
Latest price:$102.95
Buy It Now:$79.19
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$75.89 $72.59 $69.29 $65.99
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 17BK05-05
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 48 Ncm(67.99 oz.in)
  • Rated Current/phase: 2.0 A
  • Phase Resistance: 1.35 ohms
  • Inductance: 2.8 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42 mm
  • Body Length: 48 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 24 mm
  • D-Cut Shaft Length: 15 mm
  • Number of Leads: 4
  • Lead Length: 450 mm
  • Weight: 0.36 kg

Brake Connections

  • Red--24V+
  • Red--24V-
  • 0.5Nm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Waterproof Nema 34 Stepper Motor 6.0A 12Nm(1700oz.in)P Series IP65
Next: P Series Nema 17 Stepper Motor 72Ncm/101.98oz.in with Electromagnetic Brake
Motor Specification
Holding Torque (Ncm) 48
Holding Torque (oz.in) 67.99
Inductance(mH) 2.8
Lead Length(mm) 450
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.35
Rated Current (A) 2.0
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Number Of Phase 2
Brake Specification
Driving Voltage(V) 24
Static Friction Torque(Nm) 0.5
Static Friction Torque(oz.in) 70.82
