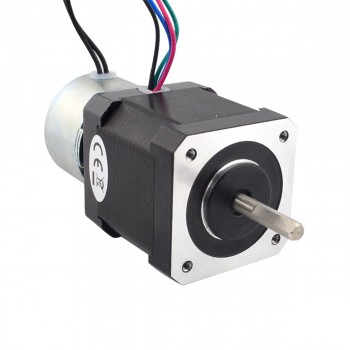

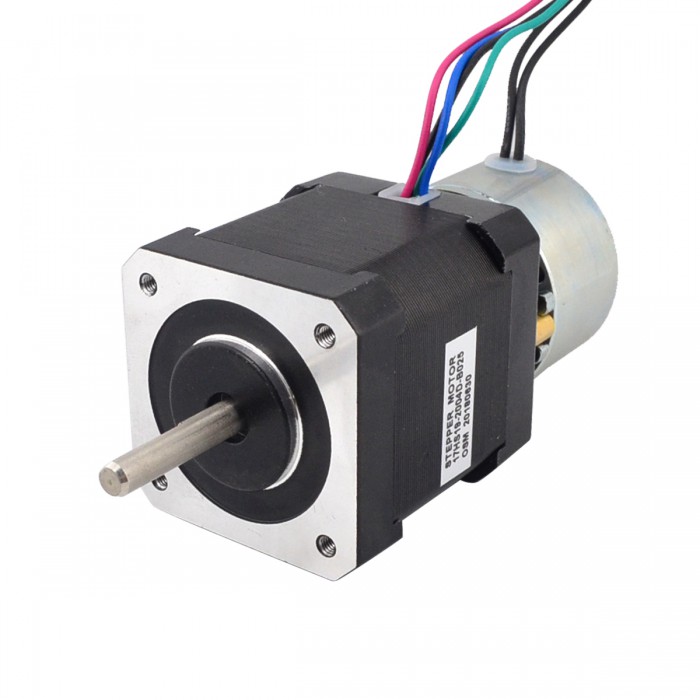

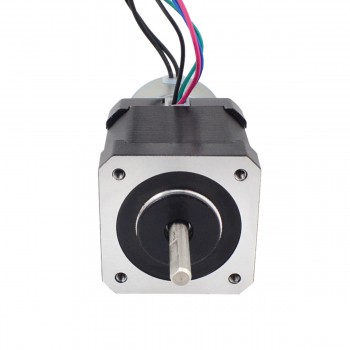

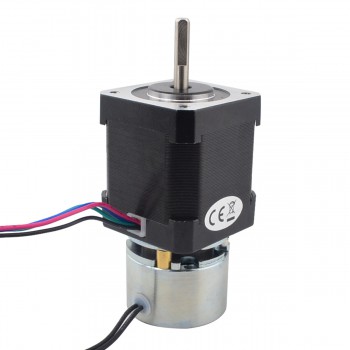

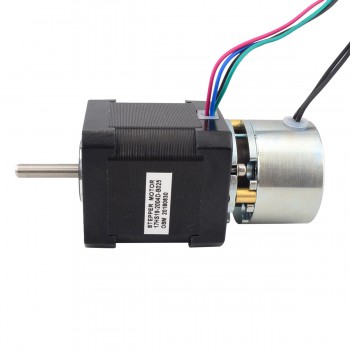

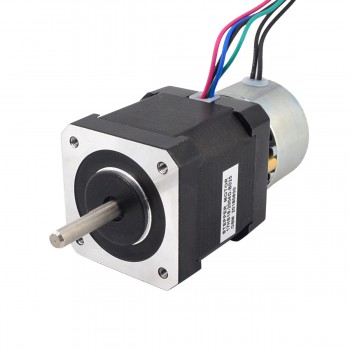

Nema 17 Stepper Motor 0.65Nm(92oz.in) with Brake Friction Torque 0.25Nm(35.4oz.in)

Nema 17 Stepper Motor 0.65Nm(92oz.in) with Brake Friction Torque 0.25Nm(35.4oz.in)
NO.:17HS19-2004D-B025
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$61.62
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $58.54 5%
10 $57.31 7%
50 $55.46 10%
100 $52.38 15%
Add To Cart

Motor Specification

  • Manufacturer Part Number: 17HS19-2004D-B025
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.59Nm(83.57oz.in)
  • Rated Current/phase: 2.00A
  • Voltage: 2.80V
  • Phase Resistance: 1.4ohms
  • Inductance: 3.00mH ± 20%(1KHz)
  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-Cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm

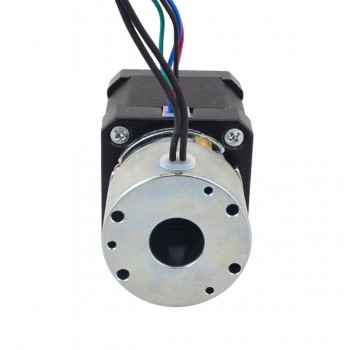

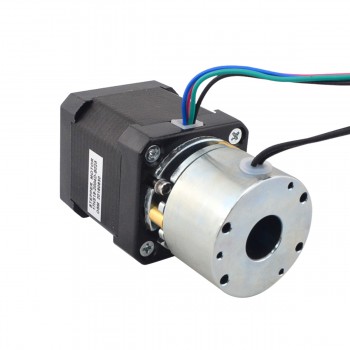

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque: 0.25Nm(35.4oz.in)
  • Moment of Interia : 0.6x10-6kg.cm2
  • Voltage : 24V
  • Power : 5W
  • Heat-resistance Class : F
  • Max.Speed: 5000rpm
  • Weight: 0.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor 0.65Nm(92oz.in) with Brake Friction Torque 0.25Nm(35.4oz.in)
Next: Nema 17 Stepper Motor 0.65Nm(92oz.in) with Brake Friction Torque 0.25Nm(35.4oz.in)
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 59
Holding Torque (oz.in) 83.57
Inductance(mH) 3
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.40
Rated Current (A) 2.0
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Brake Specification
Driving Voltage(V) 24
Heat-resistance Class F
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 0.6x10-6
Power(W) 5
Static Friction Torque(Nm) 0.25
Static Friction Torque(oz.in) 35.4
