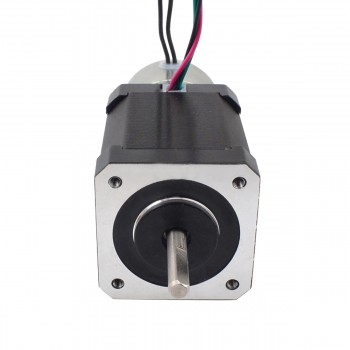

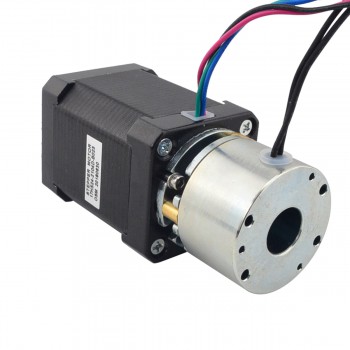

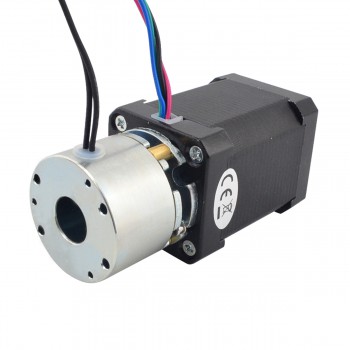

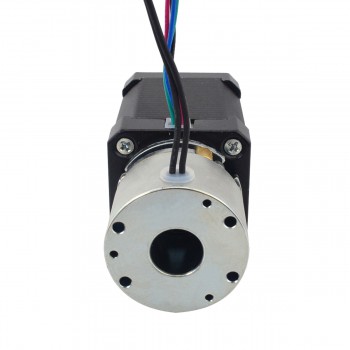

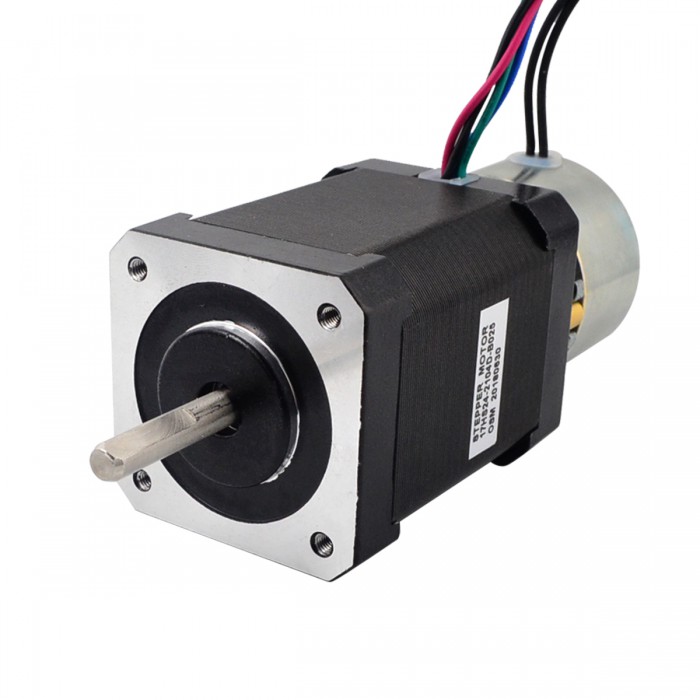

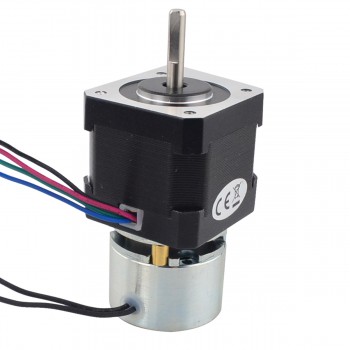

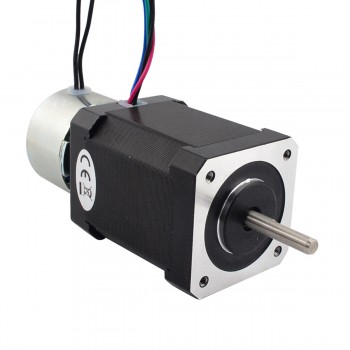

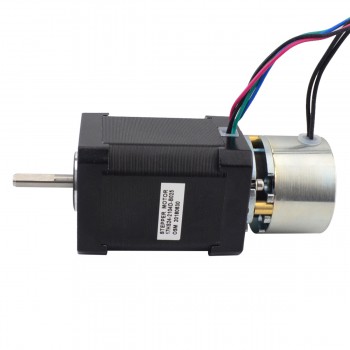

Nema 17 Stepper Motor Bipolar 1.8 Deg 0.65Nm(92oz.in) 2.1A 3.36V with Non-excited Brake
- Manuals and Documentation: Motor Datasheet:
Our Price:$64.40
This NEMA 17 bipolar stepper holds 0.65 Nm at 2.1 A, features a 1.8° step angle, and includes a 24 V brake with 0.25 Nm holding torque.
Motor Specification
Manufacturer Part Number: 17HS24-2104D-B025
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.65Nm(92.07oz.in)
Rated Current/phase: 2.10A
Voltage: 3.36V
Phase Resistance: 1.6ohms
Inductance: 3.00mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Motor Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Brake Specification
Brake Type: Non-excited
Static Friction Torque: 0.25Nm(35.4oz.in)
Moment of Interia: 0.6x10-6kg.cm2
Voltage: 24V
Power: 5W
Heat-resistance Class: F
Max.Speed: 5000rpm
Weight: 0.2kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 65 |
| Holding Torque (oz.in) | 92.07 |
| Inductance(mH) | 3 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.6 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 1.8 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Heat-resistance Class | F |
| Max. Speed(rpm) | 5000 |
| Moment of Interia(kg.cm2) | 0.6x10-6 |
| Power(W) | 5 |
| Static Friction Torque(Nm) | 0.25 |
| Static Friction Torque(oz.in) | 35.4 |
