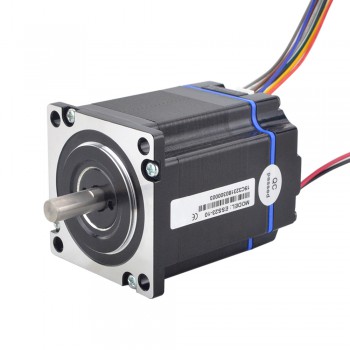

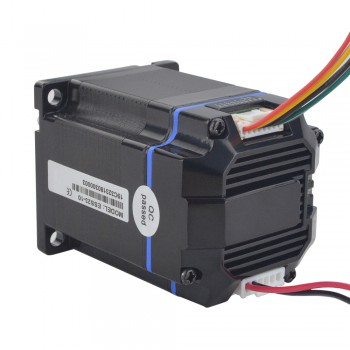

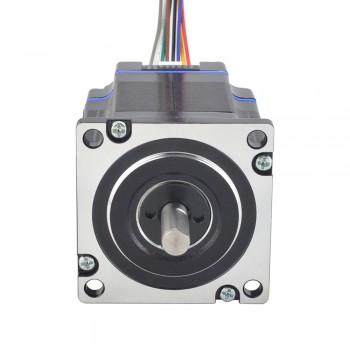

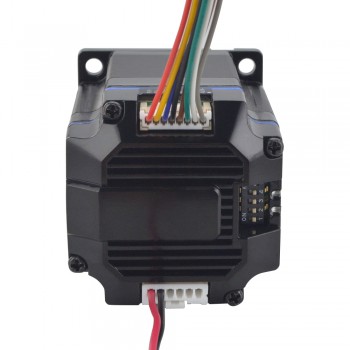

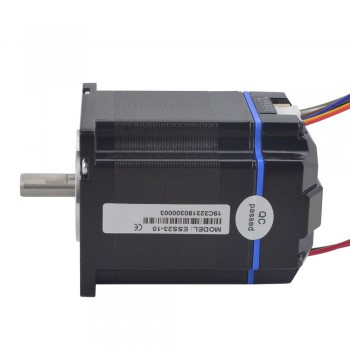

Nema 23 Integrated Closed Loop Stepper Servo Motor 24-50VDC 1.2Nm 1000CPR ESS Series
Electrical Specifications:
Manufacturer Part Number: ESS23-10
Holding Torque: 1.2Nm(170oz.in)
Input Voltage: 24 - 50VDC
Output Peak Current: 1.8 - 4.0A
Logic Input Current:10mA
Logic Input Voltage:5V
Encoder Type: Incremental
Encoder Output Type: Differential
Encoder Resolution: 1000CPR
Encoder Output Signal Channels: 2
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.
Physical Specifications:
Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ8mm
D-cut Shaft Length: 15mm
Shaft Length: 21mm
Weight: 799g
Connection
|
PU+
|
PU-
|
DR+
|
DR-
|
MF+
|
MF-
|
ALM+
|
ALM-
|
|
Red
|
Yellow
|
Blue
|
Black
|
Brown
|
Green
|
White
|
Gray
|
Resources
Full Datasheet: ESS23-10.pdf
Torque Curve: ESS23-10 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Integrate Stepper Servo Motor Specification | |
|---|---|
| Input Voltage (V) | 24 - 50 VDC |
| Length(mm) | 56 |
| Output Current | 1.8 - 4.0 A |
