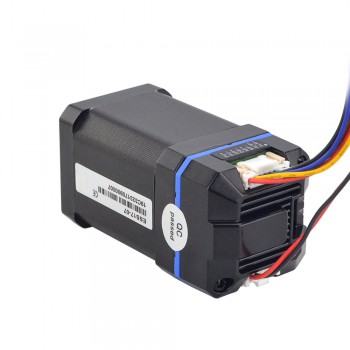

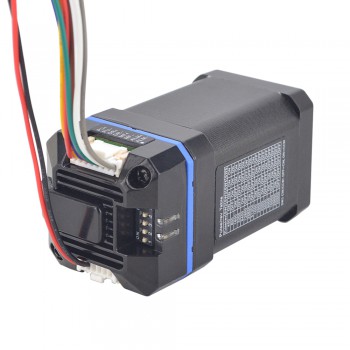

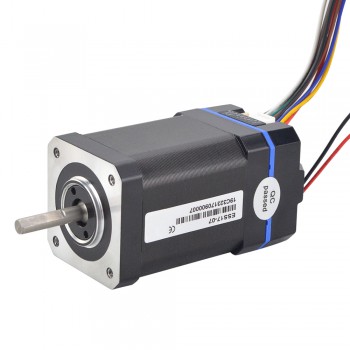

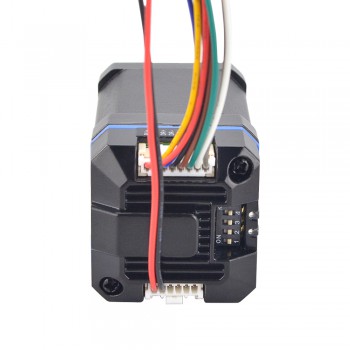

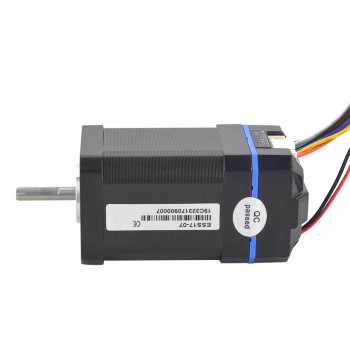

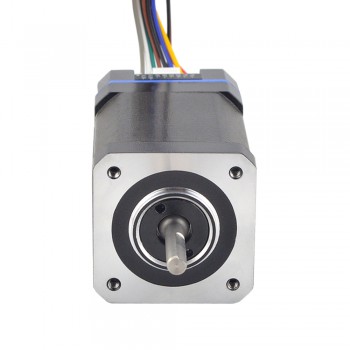

Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 0.60Nm(85oz.in) 1000CPR ESS Series

Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 0.60Nm(85oz.in) 1000CPR ESS Series
NO.:ESS17-07
Post a review
Our Price:$116.50
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $110.68 5%
5 $108.35 7%
10 $104.85 10%
50 $101.36 13%
Add To Cart

Electrical Specifications:

Manufacturer Part Number: ESS17-07

Holding Torque: 0.6Nm(85oz.in)

Input Voltage: 24 - 36VDC

Output Peak Current: 0.8 - 2.0A

Logic Input Current:10mA

Logic Input Voltage:5V

Encoder Type: Incremental

Encoder Output Type: Differential

Encoder Resolution: 1000CPR

Encoder Output Signal Channels: 2

Isolation Resistance: More than 100MΩ

Dielectric strength: 500VAC for 1MIN.



Physical Specifications:

Frame Size: 42 x 42mm

Body Length: 60mm

Shaft Diameter: Φ5mm

D-cut Shaft Length: 15mm

Shaft Length: 24mm

Weight: 531g



Connection

PU+
PU-
DR+
DR-
MF+
MF-
ALM+
ALM-
Red
Yellow
Blue
Black
Brown
Green
White
Gray



Resources

Full Datasheet: ESS17-07.pdf

Torque Curve: ESS17-07 Torque Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 0.48Nm 1000CPR ESS Series
Next: Nema 23 Integrated Closed Loop Stepper Servo Motor 24-50VDC 1.2Nm 1000CPR ESS Series
Integrate Stepper Servo Motor Specification
Input Voltage (V) 24 - 36 VDC
Length(mm) 60
Output Current 0.8 - 2.0 A
